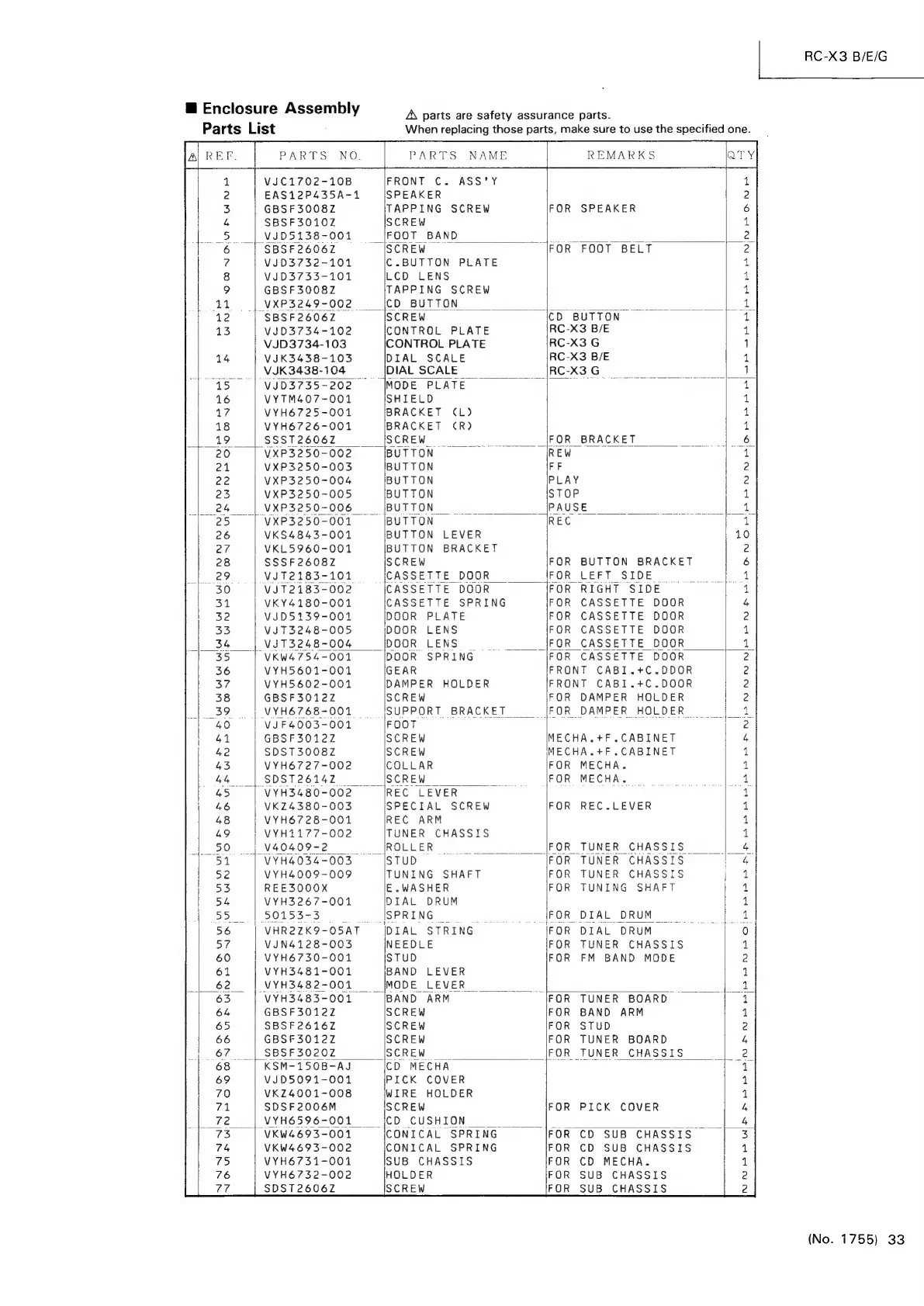

@ Enclosure Assembly
Parts List
A\ parts are safety assurance parts.
When replacing those parts, make sure to use the specified one.
A REF. PARTS NO. PARTS NAME REMARKS ATY
Pete te Bee
1 vJC1702-10B FRONT C. ASS'Y 1
2 EAS12P435A-1 SPEAKER 2
3 GBSF30082Z TAPPING SCREW FOR SPEAKER 6
4 SBSF3010Z SCREW 1
5 | VJD5138-001 [FOOT BAND Be Dare) ie ice x ads begin
6 SBSF2606Z SCREW FOR FOOT BELT 2
7? VJD3732-101 C.BUTTON PLATE 1
8 VJD3733-101 LCD LENS 1
9 GBSF30082Z TAPPING SCREW 1
41 | VxXP3249-002 [CD BUTTON A A Ae Pew
12 SBSF2606Z SCREW CD BUTTON 1
13 VJD3734-102 CONTROL PLATE RC-X3 B/E :
VJD3734-103 CONTROL PLATE RC-X3G 1
14 VJK3438-103 DIAL SCALE RC-X3 B/E a
VJK3438-104 DIAL SCALE RC-X3 G 1
15 VJD3735-202 MODE PLATE 1
16 VYTM407-001 SHIELD 1
17 VYH6725-001 BRACKET (L) 1
18 VYH6726-001 BRACKET (CR) 1
_| 19 S$SST2606Z SCREW _____|FOR BRACKET 6
20 VXP3250-002 BUTTON REW 1
21 VXP3250-003 BUTTON FF 2
22 VXP3250-004 BUTTON PLAY | 2
23 VXP3250-005 BUTTON STOP i 4
| 24 | VXP3250-006 BUTTON _ PAUSE
25 VXP3250-001 BUTTON REC 1
26 VKS4843-001 BUTTON LEVER 10
27 VKL5960-001 BUTTON BRACKET 2
28 SSSF2608Z iISCREW FOR BUTTON BRACKET 6
led. VJT2183-101 CASSETTE DOOR ——_sIFOR LEFT SIDE A
30 VJT2183-002 CASSETTE DOOR FOR RIGHT SIDE 1
| 34 VKY4180-001 CASSETTE SPRING FOR CASSETTE DOOR 4
| 32 VJ5D5139-001 [DOOR PLATE FOR CASSETTE DOOR 2
33 VJT3248-005 iDOOR LENS FOR CASSETTE DOOR 1
34 | VJT3248-004 DOOR LENS _ ____|FOR CASSETTE DOOR 4.
35 VKW4754-001 DOOR SPRING FOR CASSETTE DOOR 2
36 VYH5601-001 GEAR FRONT CABI.+C.DDOR 2
37 VYH5602-001 DAMPER HOLDER FRONT CABI.+C.DOOR 2
38 GBSF30122Z SCREW FOR DAMPER HOLDER 2
39 | VYH6768-001 SUPPORT BRACKET |FOR DAMPER HOLDER | a
1 40 | VuF4003-001 FOOT 2
1 44 GBSF30122 SCREW MECHA.+F.CABINET , 4
fhe SDST3008Z SCREW MECHA.+F.CABINET 1
43 VYH6727-002 COLLAR FOR MECHA. 1
44 | $pst26142 ss [SCREW FOR MECHA. 1
45 VYH3480-002 REC LEVER 1
46 VKZ4380-003 ISPECIAL SCREW FOR REC.LEVER 1
48 | VYH6728-001 REC ARM 1
49 | VYH1177-002 TUNER CHASSIS 1
[90 .V40409-2 ROLLER FOR TUNER CHASSIS | 4)
| 51 VYH4034-003 STUD FOR TUNER CHASSIS | 4
52 VYH4009-009 TUNING SHAFT FOR TUNER CHASSIS jd
; 53 REE3000X E.WASHER FOR TUNING SHAFT 1 ot
i 54 VYH3267-001 DIAL DRUM 1
p 55 [| 50153-3 SPRING FOR DIAL DRUM [od
56 VHR2ZK9-OSAT DIAL STRING FOR DIAL DRUM 0
57 VJN4128-003 NEEDLE FOR TUNER CHASSIS 1
60 VYH6730-001 STUD FOR FM BAND MODE 2
61 VYH3481-001 BAND LEVER 1
_| 62 | VYH3482-001 MODE LEVER Hy 1
63 VYH3483-001 BAND ARM FOR TUNER BOARD 4
64 GBSF30122Z SCREW FOR BAND ARM 1
65 SBSF26162Z SCREW FOR STUD 2
66 GBSF3012Z SCREW FOR TUNER BOARD 4
, 67 | SBSF3020Z2 _|SCREW _ FOR TUNER CHASSIS 2
68 KSM-150B-AS CD MECHA oS ee
69 VJD5091-001 PICK COVER 1
70 VKZ4001-008 WIRE HOLDER 1
71 SDSF2006M SCREW FOR PICK COVER 4
72 | VYH6596-001 CD CUSHION 4
73 VKW4693-001 CONICAL SPRING FOR CD SUB CHASSIS | 3.
74 VKW4693-002 CONICAL SPRING FOR CD SUB CHASSIS 1
75 VYH6731-001 SUB CHASSIS FOR CD MECHA. 1
76 VYH6732-002 HOLDER FOR SUB CHASSIS 2
77 SDST26062Z SCREW FOR SUB CHASSIS 2
| RC-X3 B/E/G
(No. 1755) 33
