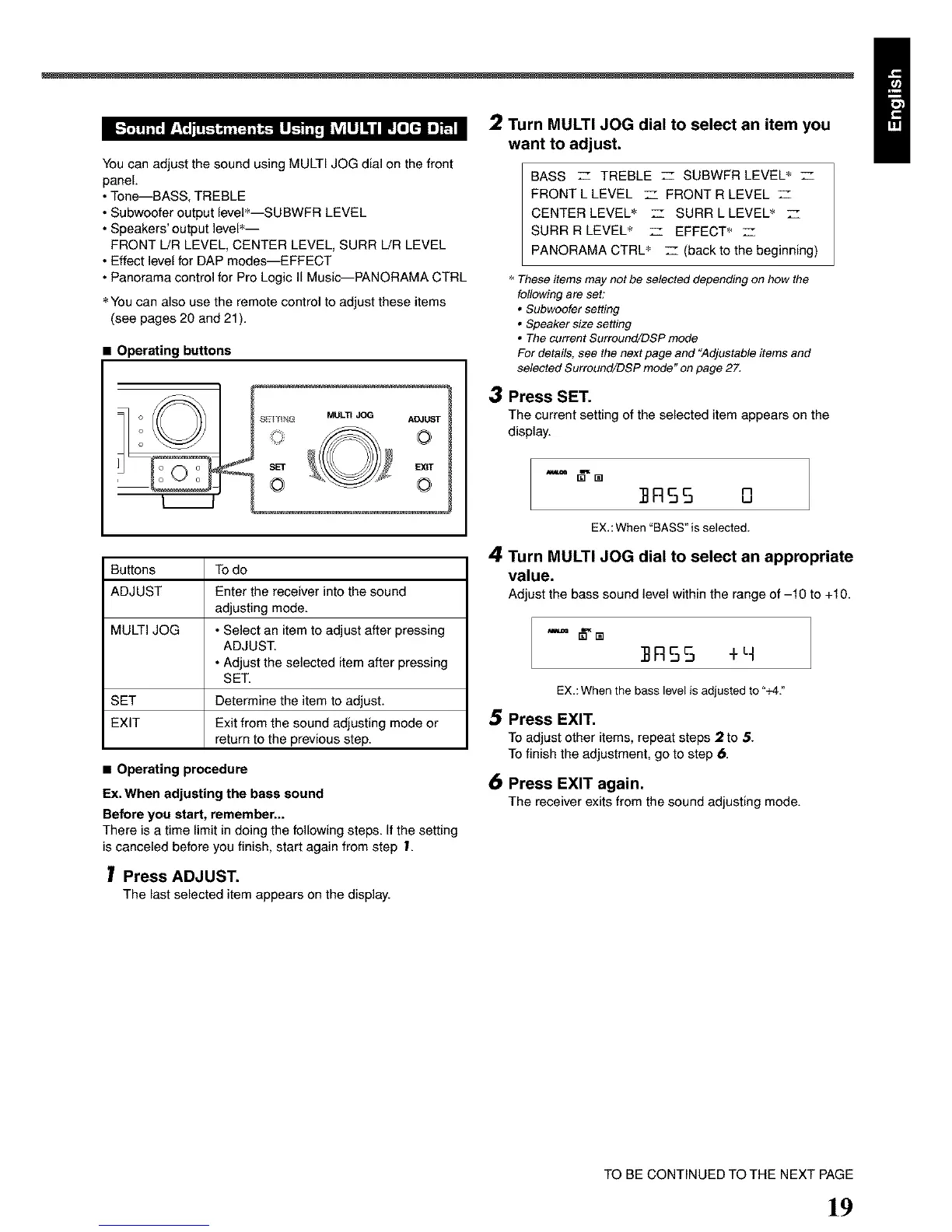

You can adjust the sound using MULTI JOG dial on the front
panel.
• Tone--BASS, TREBLE
• Subwoofer output leveI_--SUBWFR LEVEL
• Speakers' output level _-
FRONT L!R LEVEL, CENTER LEVEL, SURR L!R LEVEL
• Effect level for DAP modes--EFFECT
• Panorama control for Pro Logic II Music--PANORAMA CTRL
_You can also use the remote control to adjust these items
(see pages 20 and 21).
• Operating buttons
Buttons To do
ADJUST Enter the receiver into the sound
adjusting mode.
MULTI JOG • Select an item to adjust after pressing
ADJUST.
• Adjust the selected item after pressing
SET.
SET Determine the item to adjust.
EXIT Exit from the sound adjusting mode or
return to the previous step.
• Operating procedure
Ex. When adjusting the bess sound
Before you start, remember...
There is a time limit in doing the following steps. If the setting
is canceled before you finish, start again from step 1.
Press ADJUST.
The last selected item appears on the display.
2 Turn MULTI JOG dial to select an item you
want to adjust.
BASS _= TREBLE _= SUBWFR LEVEL • z
FRONT L LEVEL z FRONT R LEVEL
CENTER LEVEL • _= SURR L LEVEL_
SURR R LEVEL_ _= EFFECT_ _=
PANORAMA CTRL _ _ (back to the beginning)
These items may not be selected depending on how the
following are set:
• Subwoefer setting
• Speaker size setting
• The current Surround/DSP mode
For details, see the next page and "Adjustable items and
selected Surround/DSP mode" on page 27,
3 Press SET.
The current settingof the selected item appears on the
display.
'== _'m
]]R55 D
EX.:When"BASS" is selected.
4 Turn MULTI JOG dial to select an appropriate
value.
Adjust the bass sound level within the range of -10 to +10.
-=, _,[]
R55 +H
EX.:When the bass level is adjusted to "+4:'
,5 Press EXIT.
Toadjustotheritems, repeatsteps 2 to 5.
Tofinish the adjustment, go tostep 6.
6 Press EXIT again.
The receiverexitsfromthe sound adjusting mode.
TO BE CONTINUED TO THE NEXT PAGE
