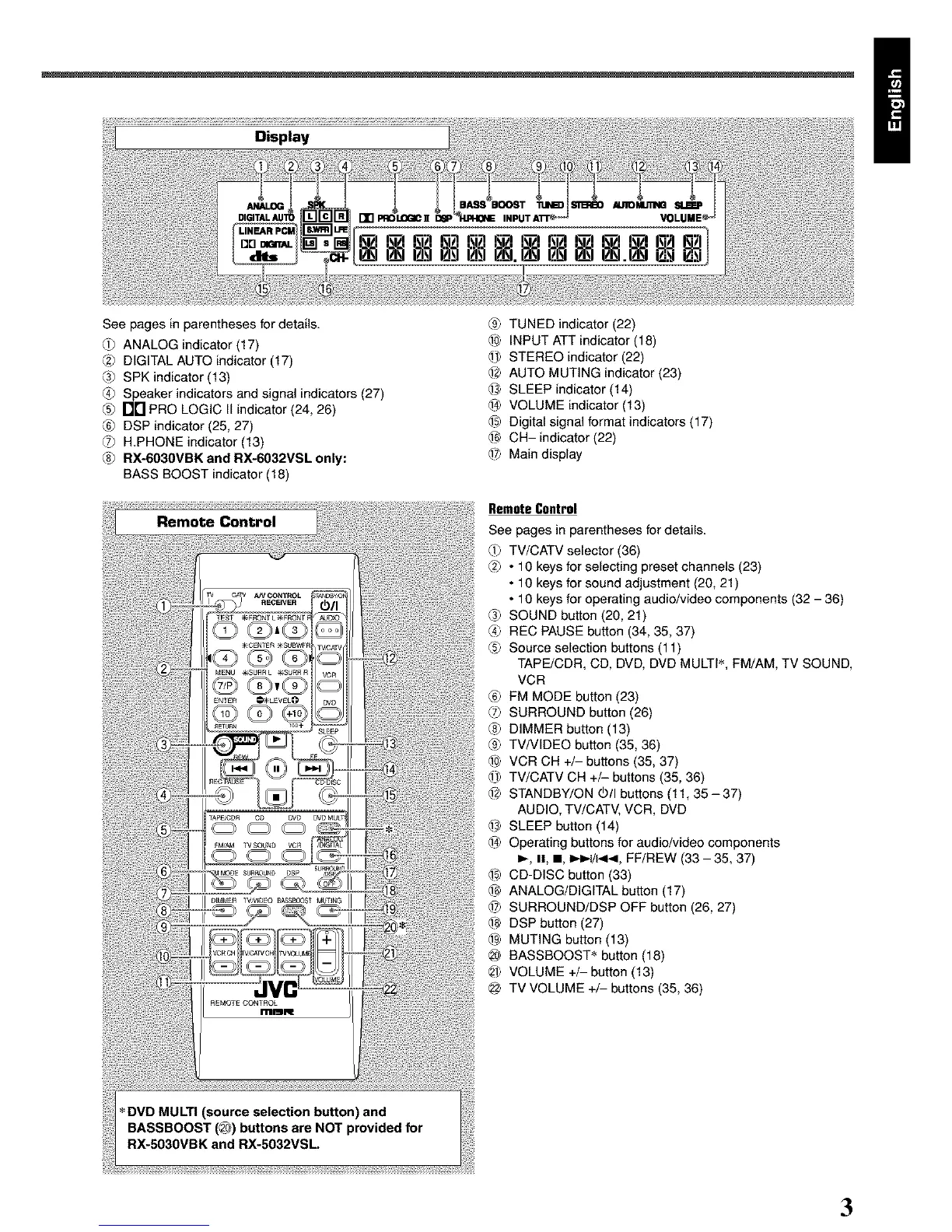

See pages in parentheses for details.
Q_ ANALOG indicator (17)
_2_ DIGITAL AUTO indicator (17)
_3_SPK indicator (13)
_4_Speaker indicators and signal indicators (27)
_5_1"3['1PRO LOGIC II indicator (24, 26)
_6_ DSP indicator (25, 27)
_7_ H.PHONE indicator (13)
_8_RX-6030VBK and RX-6032VSL only:
BASS BOOST indicator (18)
iii iiii:i
'iii!'i i ii ii?i! i!iii i
ii i i !i! o ii!,ili!i!,ii!i
ili_iiii_i_ii!_i_ili!i!_i_ii!ii!i,i!iiiiii_i_iiil_!io_ooToc.To ii!iiiiiiiiii!iiii_i!i_iii!iii!!ii!i_i_i!iiii_!i!i_ili:i!ili_ii
.............. .........................................................................................
_9_TUNED indicator (22)
_ INPUT ATT indicator (18)
_ STEREO indicator (22)
_2_AUTO MUTING indicator (23)
_ SLEEP indicator (14)
_-_ VOLUME indicator (13)
L_ Digital signal format indicators (17)
_ CH- indicator (22)
@ Main display
RemoteControl
See pages in parentheses for details.
_ TV/CATV selector (36)
_2_• 10 keys for selecting preset channels (23)
• 10 keys for sound adjustment (20, 21)
• 10 keys for operating audio/video components (32 - 36)
_3_ SOUND button (20, 21)
_4_ REC PAUSE button (34, 35, 37)
_5_ Source selection buttons (11 )
TAPE/CDR, CD, DVD, DVD MULTI _, FM/AM, TV SOUND,
VCR
_6_ FM MODE button (23)
_7_ SURROUND button (26)
_8_ DIMMER button (13)
_9_TV/VIDEO button (35, 36)
_ VCR CH +/- buttons (35, 37)
_ TV/CATV CH +/- buttons (35, 36)
_-2_STANDBY/ON (b/I buttons (11, 35 -37)
AUDIO, TV/CATV, VCR, DVD
_ SLEEP button (14)
_-_ Operating buttons for audio/video components
_, H, m, _,_4/_, FF/REW (33 - 35, 37)
_ CD-DISC button (33)
_ ANALOG/DIGITAL button (17)
@ SURROUND/DSP OFF button (26, 27)
@ DSP button (27)
_ MUTING button (13)
BASSBOOST • button (18)
@ VOLUME +/-button (13)
_ TV VOLUME +/- buttons (35, 36)
3
