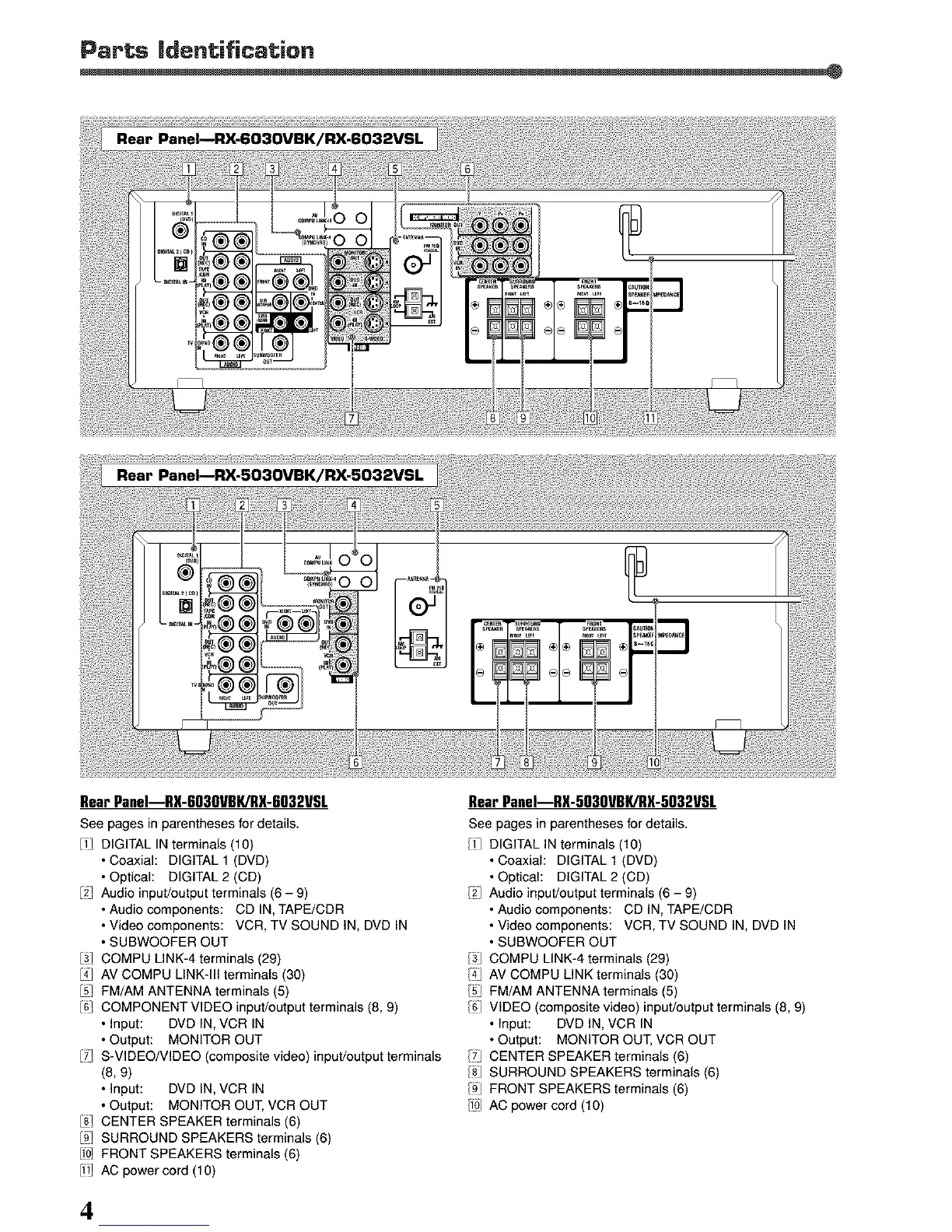

Rear PaneI--RX-6030VBK/RX-6032VSL
See pages in parentheses for details.
II/ DIGITAL IN terminals (10)
• Coaxial: DIGITAL 1 (DVD)
• Optical: DIGITAL 2 (CD)
12L Audio input/output terminals (6 - 9)
• Audio components: CD IN, TAPE/CDR
• Video components: VCR, TV SOUND IN, DVD IN
• SUBWOOFER OUT
I_1 COMPU LINK-4 terminals (29)
14] AV COMPU LINK-Ill terminals (30)
151 FM/AM ANTENNA terminals (5)
16/ COMPONENT VIDEO input/output terminals (8, 9)
• Input: DVD IN, VOR IN
• Output: MONITOR OUT
17L S-VIDEO/VIDEO (composite video) input/output terminals
(8, 9)
• Input: DVD IN, VCR IN
• Output: MONITOR OUT, VCR OUT
18] CENTER SPEAKER terminals (6)
19J SURROUND SPEAKERS terminals (6)
IloJ FRONT SPEAKERS terminals (6)
Ill] AC power cord (10)
Rear PaneI--RX-5030VBK/RX-5032VSL
See pages in parentheses for details.
[i DIGITAL IN terminals (10)
• Coaxial: DIGITAL 1 (DVD)
• Optical: DIGITAL 2 (CD)
/2 Audio input/output terminals (6 - 9)
• Audio components: CD IN, TAPE/CDR
• Video components: VCR, TV SOUND IN, DVD IN
• SUBWOOFER OUT
/3] COMPU LINK-4 terminals (29)
/4] AV COMPU LINK terminals (30)
/_J FM/AM ANTENNA terminals (5)
/6 VIDEO (composite video) input/output terminals (8, 9)
• Input: DVD IN, VCR IN
• Output: MONITOR OUT, VCR OUT
/YI CENTER SPEAKER terminals (6)
/8] SURROUND SPEAKERS terminals (6)
/gJ FRONT SPEAKERS terminals (6)
/i0 AC power cord (10)
