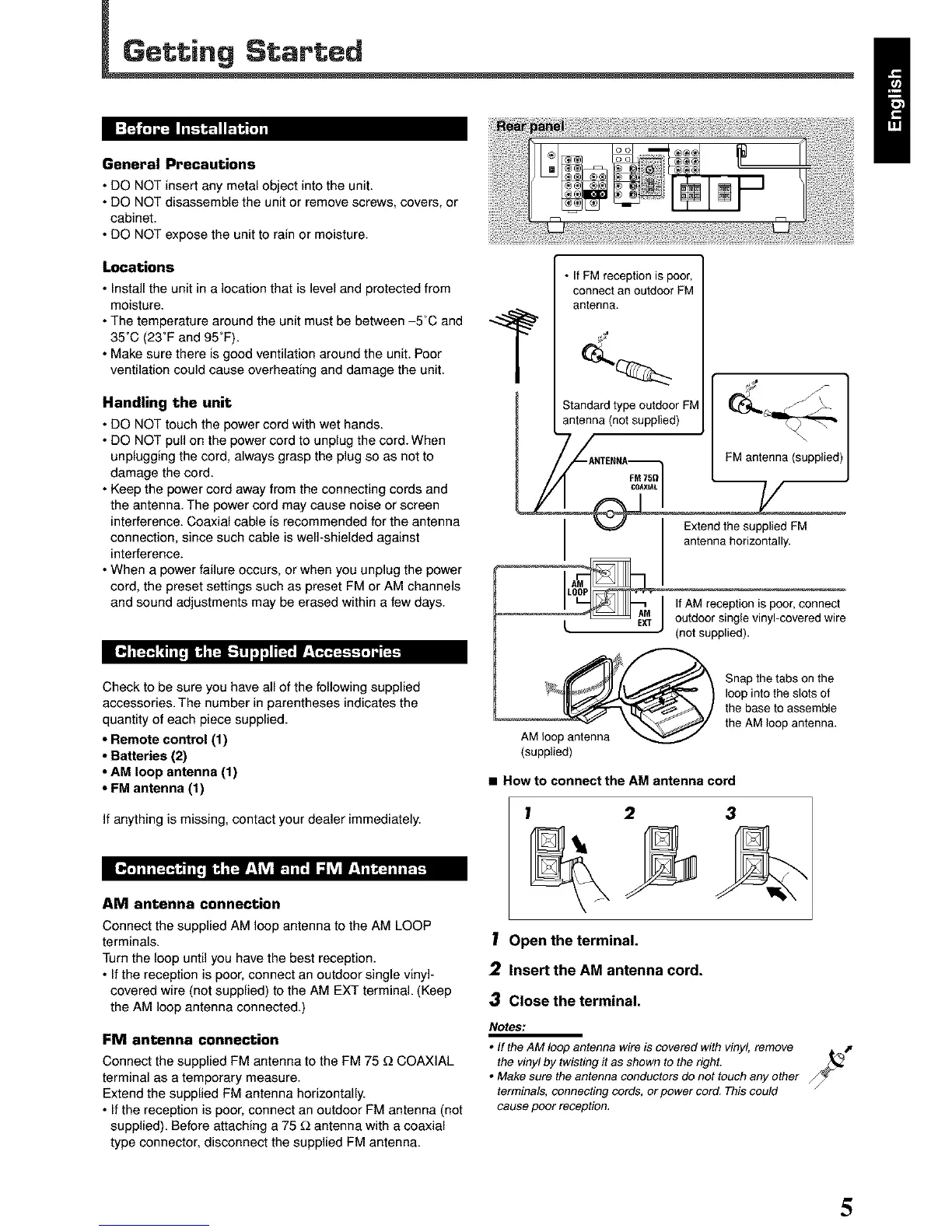

General Precautions
• DO NOT insert any metal object intothe unit.
• DO NOT disassemble the unit or remove screws, covers, or
cabinet.
• DO NOT expose the unit to rain or moisture.
Locations
• Install the unit in a location that is level and protected from
moisture.
• The temperature around the unit must be between -5°C and
35°C (23'F and 95'F).
[
• Make sure there ls good ventilation around the unit. Poor
ventilation could cause overheating and damage the unit.
• If FM reception is poor,
connect an outdoor FM
antenna.
Handling the unit
• DO NOT touch the power cord with wet hands.
• DO NOT pull on the power cord to unplug the cord. When
unplugging the cord, always grasp the plug so as not to -ANTEHNA--
damage the cord. F,,gol
• Keep the power cord away from the connecting cords and C0AX_L
I
the antenna. The power cord may cause noise or screen
interference. Coaxial cable is recommended for the antenna
connection, since such cable is well-shielded against
interference.
• When a power failure occurs, or when you unplug the power _ _
cord, the preset settings such as preset FM or AM channels
and sound adjustments may be erased within a few days. I
J
L
Check to be sure you have all of the following supplied
accessories. The number in parentheses indicates the
quantity of each piece supplied.
• Remote control (1)
• Batteries (2)
• AM loop antenna (1)
• FM antenna (1)
If anything is missing, contact your dealer immediately.
AM ant_nna connection
Connect the supplied AM loop antenna to the AM LOOP
terminals.
Turn the loop until you have the best reception.
• If the reception is poor, connect an outdoor single vinyl-
covered wire (not supplied) to the AM EXT terminal. (Keep
the AM loop antenna connected.)
FMantenna connection
Connect the supplied FM antenna to the FM 75 _ COAXIAL
terminal as a temporary measure.
Extend the supplied FM antenna horizontally.
• If the reception is poor, connect an outdoor FM antenna (not
supplied). Before attaching a 75 _ antenna with a coaxial
type connector, disconnect the supplied FM antenna.
Standard type outdoor FM
antenna (not supplied)
FM antenna (supplied)
F
Extend the supplied FM
antenna horizontally.
If AM reception is poor, connect
outdoor single vinyl-covered wire
(not supplied).
AM loop antenna
(supplied)
Snap the tabs on the
loop into the slots of
the base to assemble
the AM loop antenna.
• How to connect the AM antenna cord
! 2 3
1 Open the terminal.
2 Insert the AM antenna cord.
3 Close the terminal.
Notes:
• If the AM loop antenna wire is covered with vinyl, remove ,.t
the vinyl by twistingit as shown tothe right.
• Make sure the antenna conductors do not touch any other
terminals, connecting cords, or power cord. Thiscould
cause poor reception.
g
5
