Turn the power off to all components before making connections.
You can connect the following audio/video components to this receiver. Refer also to the manuals supplied with your
components.
• Audio Components: CD player _ and Cassette deck (or CD recorder s)
• Video Components: VCR, TV_, and DVD player _
Youcan connect these components using the methods described in "Analog Connections" (below)and/or in "Digital Connections" (see page
10).

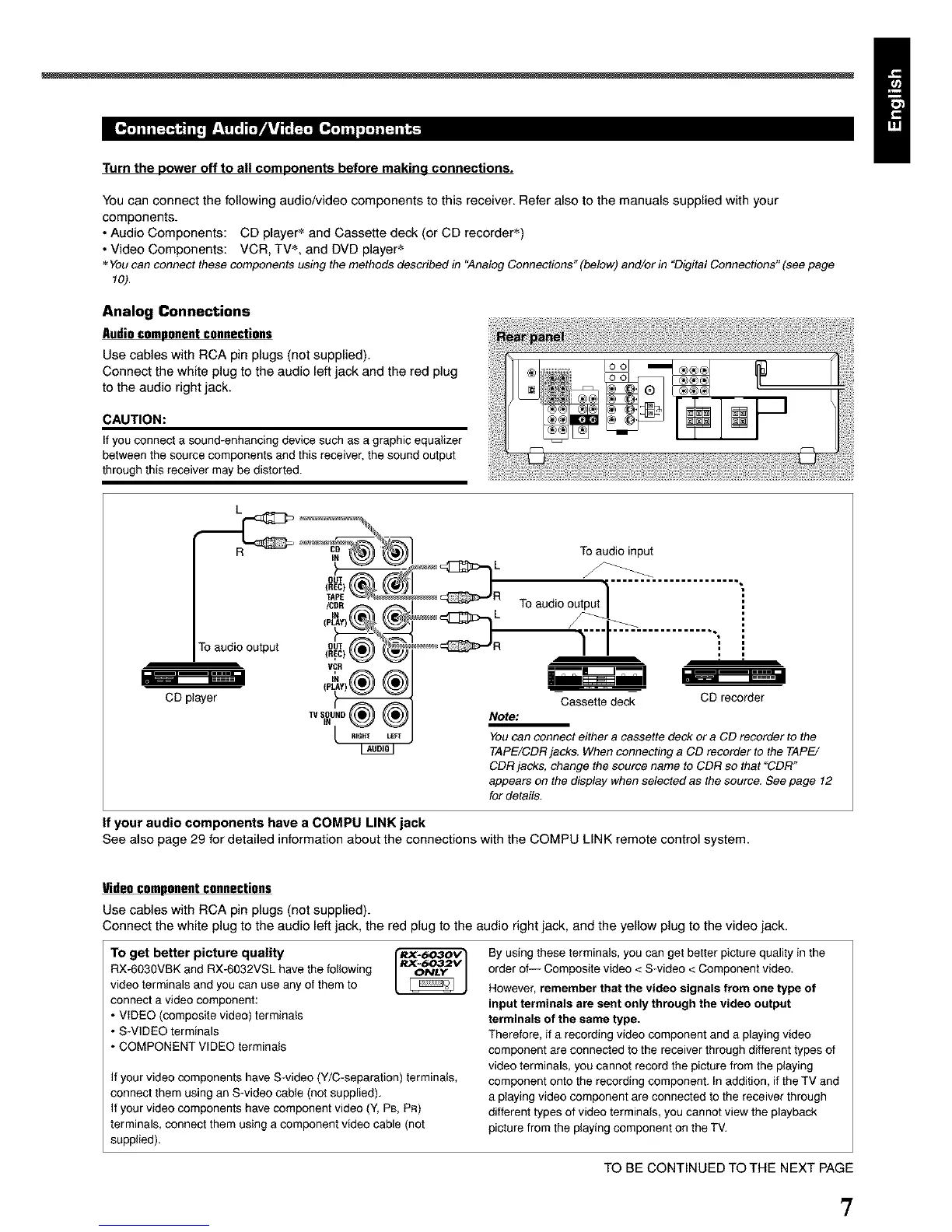

Analog Connections
Audiocomponent connections
Use cables with RCA pin plugs (not supplied).
Connect the white plug to the audio left jack and the red plug
to the audio right jack.
CAUTION:
If you connect a sound-enhancing device such as a graphic equalizer
between the source components and this receiver, the sound output
through this receiver may be distorted.
R
To audio output
CD player
To audio input
To audio output /
_1
-Cassette deck- CD recorder
Note:
You can connect either a cassette deck or a CD recorder to the
TAPE/CDR jacks. When connecting a CD recorder to the TAPE/
CDR jacks, change the source name to CDR so that "CDR"
appears on the display when selected as the source, See page 12
for details.
If your audio components have a COMPU LINK jack
See also page 29 for detailed information about the connections with the COMPU LINK remote control system.
Video component connections
Use cables with RCA pin plugs (not supplied).
Connect the white plug to the audio left jack, the red plug to the audio right jack, and the yellow plug to the video jack.
To get better picture quality
RX-6030VBK and RX-6032VSL have the following
video terminals and you can use any of them to
connect a video component:
• VIDEO (composite video) terminals
• S-VIDEO terminals
• COMPONENT VIDEO terminals
RX-6032V
ONLY
If your video components have S-video (Y/C-separation) terminals,
connect them using an S-video cable (not supplied).
If your video components have component video (Y, PB, PR)
terminals, connect them using a component video cable (not
supplied).
By using these terminals, you can get better picture quality in the
order of-- Composite video < S-video < Component video.
However, remember that the video signals from one type of
input terminals are sent only through the video output
terminals of the same type.
Therefore, if a recording video component and a playing video
component are connected to the receiver through different types of
video terminals, you cannot record the picture from the playing
component onto the recording component. In addition, if the TV and
a playing video component are connected to the receiver through
different types of video terminals, you cannot view the playback
picture from the playing component on the TV.
TO BE CONTINUED TO THE NEXT PAGE
7
