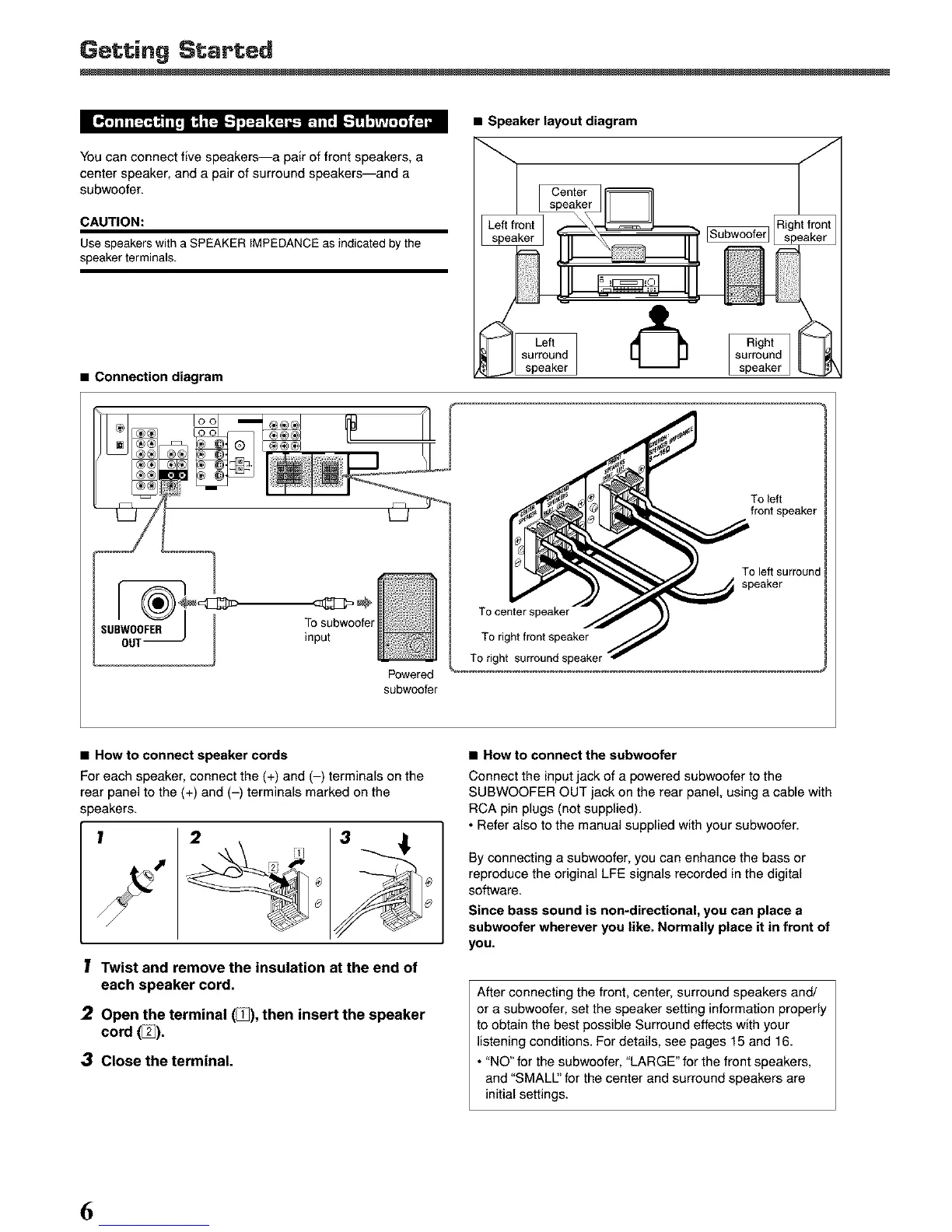

You can connect five speakers--a pair of front speakers, a
center speaker, and a pair of surround speakers--and a
subwoofer.
CAUTION:
Use speakers with a SPEAKER IMPEDANCE as indicated by the
speaker terminals.
• Connection diagram
• Speaker layout diagram
Center
speaker
SUBWOOFE_J I To subwoofer
OUT_ input
Powered
subwoo_r
To center speaker
To right front speaker
To right surround speaker
To left
front speaker
To left surround
speaker
• How to connect speaker cords
For each speaker, connect the (+) and (-) terminals on the
rear panel to the (+) and (-) terminals marked on the
speakers.
I Twist and remove the insulation at the end of
each speaker cord.
2 Open the terminal _), then insert the speaker
cord(%).
3 Close the terminal.
• How to connect the subwoofer
Connect the input jack of a powered subwoofer to the
SUBWOOFER OUT jack on the rear panel, using a cable with
RCA pin plugs (not supplied).
• Refer also to the manual supplied with your subwoofer.
By connecting a subwoofer, you can enhance the bass or
reproduce the original LFE signals recorded in the digital
software.
Since bass sound is non-directional, you can place a
subwoofer wherever you like. Normally place it in front of
yOU.
After connecting the front, center, surround speakers and/
or a subwoofer, set the speaker setting information properly
to obtain the best possible Surround effects with your
listening conditions. For details, see pages 15 and 16.
• "NO" for the subwoofer, "LARGE" for the front speakers,
and "SMALl" for the center and surround speakers are
initial settings.
6
