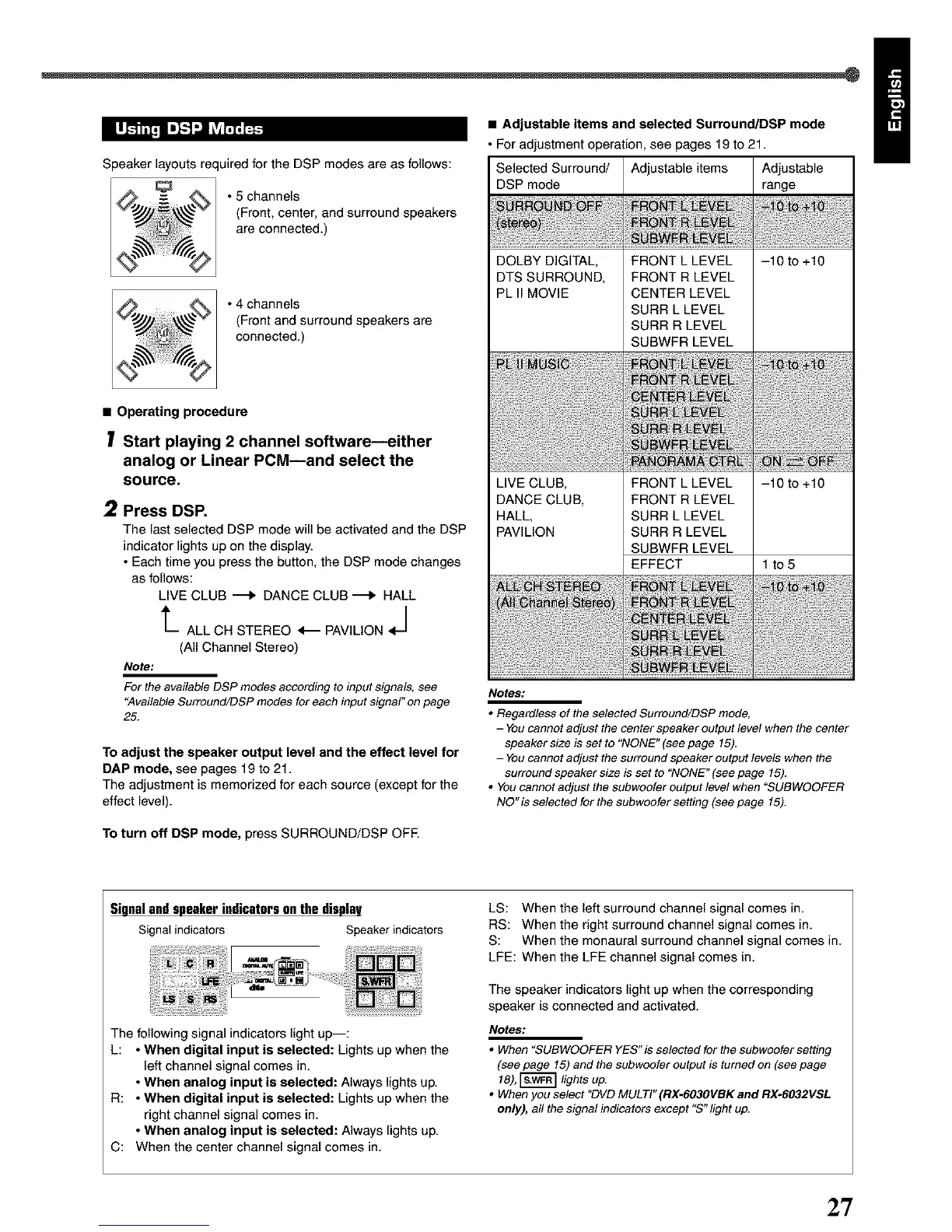

Speaker layouts required for the DSP modes are as follows:
• 5 channels
(Front, center, and surround speakers
are connected.)
• 4 channels
(Front and surround speakers are
connected.)
• Adjustable items and selected Surreund/DSP mode
• For adjustment operation, see pages 19 to 21.
Selected Surround/ Adjustable items Adjustable
DSP mode range
RON E!E
EL
DOLBY DIGITAL, FRONT L LEVEL -10 to +10
DTS SURROUND, FRONT R LEVEL
PL II MOVIE CENTER LEVEL
SURR L LEVEL
SURR R LEVEL
SUBWFR LEVEL
• Operating procedure
Start playing 2 channel softwarHither
analog or Linear PCM--and select the
source,
2 Press DSP.
The last selected DSP mode will be activated and the DSP
indicator lights up on the display.
• Each time you press the button, the DSP mode changes
as follows:
LIVE CLUB "--I_ DANCE CLUB "--I_ HALL
L ALLCHSTEREO_---PAVIUONJ
(All Channel Stereo)
Note:
For the available DSP modes according to input signals, see
"AvailableSurround/DSP modes for each input signal"on page
25.
To adjust the speaker output level and the effect level for
DAP mode, see pages f 9 to 21.
The adjustment is memorized for each source (except for the
effect level).
To turn off DSP mode, press SURROUND/DSP OFR
LIVE CLUB,
DANCE CLUB,
HALL,
PAVILION
Notes:
FRONT L LEVEL
FRONT R LEVEL
SURR L LEVEL
SURR R LEVEL
SUBWFR LEVEL
EFFECT
-10 to +10
1 to5
• Regardless of the selected Surround/DSP mode,
- You cannot adjust the center speaker output level when the center
speaker size is set to "NONE" (see page 15).
- You cannot adjust the surround speaker output levels when the
surround speaker size is set to "NONE" (see page 15).
• You cannot adjust the subwoofer output level when "SUBWOOFER
NO"is selected far the subwoofer setting (see page 15).
Signal and speaker indicators on the displal/
Signal indicators Speaker indicators
The following signal indicators light up--:
L: • When digital input is selected: Lights up when the
left channel signal comes in.
• When analog input is selected: Always lights up.
R: • When digital input is selected: Lights up when the
right channel signal comes in.
• When analog input is selected: Always lights up.
C: When the center channel signal comes in.
LS: When the left surround channel signal comes in.
RS: When the right surround channel signal comes in.
S: When the monaural surround channel signal comes in.
LFE: When the LFE channel signal comes in.
The speaker indicators light up when the corresponding
speaker is connected and activated.
Notes:
• When "SUBWOOFER YES"is selected for the subwoofer setting
(see page 15) and the subwoafer output is turned on (see page
18), _ lights up.
• When you select "DVD MULTI"(RX-603OVBK and RX-6032VSL
only), all the signal indicators except "S" light up.
27
