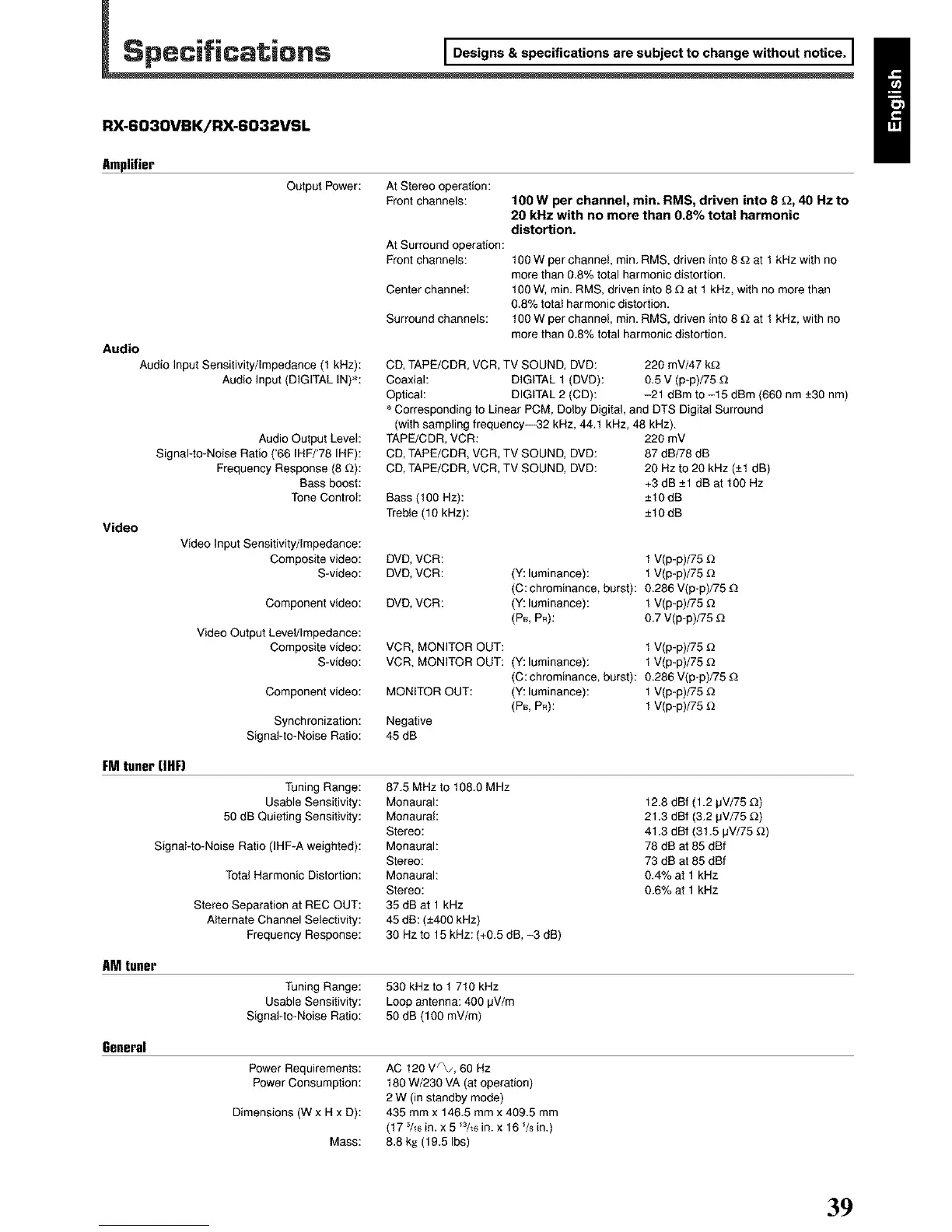

RX-6030VBK/RX-6032VSL
Amplifier
Output Power:
Audio
Audio Input Sensitivity/Impedance (1 kHz):
Audio Input (DIGITAL IN)X:
Video
Audio Output Level:
Signal-to-Noise Ratio ('66 IHF/'78 IHF):
Frequency Response (8 _2):
Bass boost:
Tone Control:
Video Input Sensitivity/Impedance:
Composite video:
S-video:
Component video:
Video Output Level/Impedance:
Composite video:
S-video:
Component video:
Synchronization:
Signal-to-Noise Ratio:
At Stereo operation:
Front channels: 100 W per channel, rain. RMS, driven into 8 _, 40 Hz to
20 kHz with no more than 0.8% total harmonic
distortion.
At Surround operation:
Front channels: 100 W per channel, min. RMS, driven into 8 _ at 1 kHz with no
more than 0.8% total harmonic distortion.
Center channel: 100 W, rain. RMS, driven into 8 _2 at 1 kHz, with no more than
0.8% total harmonic distortion.
Surround channels: 100 W per channel, min. RMS, driven into 8 _ at 1 kHz, with no
more than 0.8% total harmonic distortion.
CD, TAPE/CDR, VCR, TV SOUND, DVD: 220 mY/47 k£_
Coaxial: DIGITAL 1 (DVD): 0.5 V (p-p)/75 _2
Optical: DIGITAL 2 (CD): -21 dBm to -15 dBm (660 nm -+30nm)
Corresponding to Linear PCM, Dolby Digital, and DTS Digital Surround
(with sampling frequency--32 kHz, 44.1 kHz, 48 kHz).
TAPE/CDR, VCR: 220 mV
CD, TAPE/CDR, VCR, TV SOUND, DVD: 87 dB/78 dB
CD, TAPE/CDR, VCR, TV SOUND, DVD: 20 Hz to 20 kHz (_+1dB)
+3 dB -+1dB at 100 Hz
Bass (100 Hz): _+10dB
Treble (10 kHz): _+10dB
DVD, VCR: 1 V(p-p)/75 £_
DVD, VCR: (Y: luminance): 1 V(p-p)/75
(C: chrominance, burst): 0.286 V(p-p)/75 _2
DVD, VCR: (Y: luminance): 1 V(p-p)/75
(PB, PR): 0.7 V(p-p)/75 £_
VCR, MONITOR OUT:
VCR, MONITOR OUT: (Y: luminance):
(C: chrominance, burst):
MONITOR OUT: (Y: luminance):
(PB, PR):
Negative
45 dB
1 V(p-p)/75 £_
1 V(p-p)/75
0.286 V(p-p)/75 _2
1 V(p-p)/75 £_
1 V(p-p)/75
FMtuner(IHF)
Tuning Range:
Usable Sensitivity:
50 dB Quieting Sensitivity:
Signal-to-Noise Ratio (IHF-A weighted):
Total Harmonic Distortion:
Stereo Separation at REC OUT:
Alternate Channel Selectivity:
Frequency Response:
87.5 MHz to 108.0 MHz
Monaural:
Monaural:
Stereo:
Monaural:
Stereo:
Monaural:
Stereo:
35 dB at 1 kHz
45 dB: (-+400 kHz)
30 Hz to 15 kHz: (+0.5 dB, -3 dB)
12.8 dBf (1.2 pV/75 _2)
21.3 dBf (3.2 pV/75 _2)
41.3 dBf (31.5 pV/75 _2)
78 dB at 85 dBf
73 dB at 85 dBf
0.4% at 1 kHz
0.6% at 1 kHz
AM tuner
Tuning Range: 530 kHz to 1 710 kHz
Usable Sensitivity: Loop antenna: 400 pV/m
Signal-to-Noise Ratio: 50 dB (100 mV/m)
General
Power Requirements:
Power Consumption:
Dimensions (W x H x D):
Mass:
AC 120 VF_, 60 Hz
180 W/230 VA (at operation)
2 W (in standby mode)
435 mm x 146.5 mm x 409.5 mm
(17 3h6in. x 5 W_6in. x 16 V8 in.)
8.8 kg (19.5 Ibs)
