Getting Started
AM loop antenna connection
Connect the AM loop antenna supplied to the AM LOOP
terminals.
Turn the loop until you have the best reception.
• If the reception is poor, connect an outdoor single vinyl-
covered wire (not supplied) to the AM EXT terminal. (Keep
the AM loop antenna connected.)
FM antenna connection
Connect the supplied FM antenna to the FM 75 Ω COAXIAL
terminal as temporary measure.
Extend the supplied FM antenna horizontally.
• If the reception is poor, connect an outdoor FM antenna (not
supplied). Before attaching a 75 Ω coaxial cable (with a
standard type connector), disconnect the supplied FM
antenna.
Connecting the FM and AM Antennas
CENTER
RIGHT
8
16
DVD
DIGITAL 1
(
DVD
)
DIGITAL 2
(
CD
)
CD
DVD
FM 75
COAXIAL
COMPU LINK-4
(SYNCHRO)
ANTENNA
TV SOUND
AUDIO
VIDEO
AUDIO
OUT
(REC)
RIGHT
LEFT
AM
LOOP
AM
EXIT
RIGHT LEFT
TAPE
/CDR
IN
(PLAY)
OUT
(REC)
OUT
(REC)
VCR
IN
(PLAY)
VCR
IN
(PLAY)
DIGITAL IN
SUB
WOOFER
CENTER
SPEAKER
REAR
SPEAKERS
RIGHT
LEFT
FRONT
SPEAKERS
LEFT
CAUTION :
SPEAKER IMPEDANCE
+
–
+
–
+
–
+
–
AV
COMPU LINK
RIGHT
LEFT
REAR
MONITOR
OUT
FRONT
123
AM
LOOP
FM 75
COAXIAL
AM
EXT
ANTENNA
FM 75
COAXIAL
FM 75
COAXIAL
SUBWOOFER
OUT

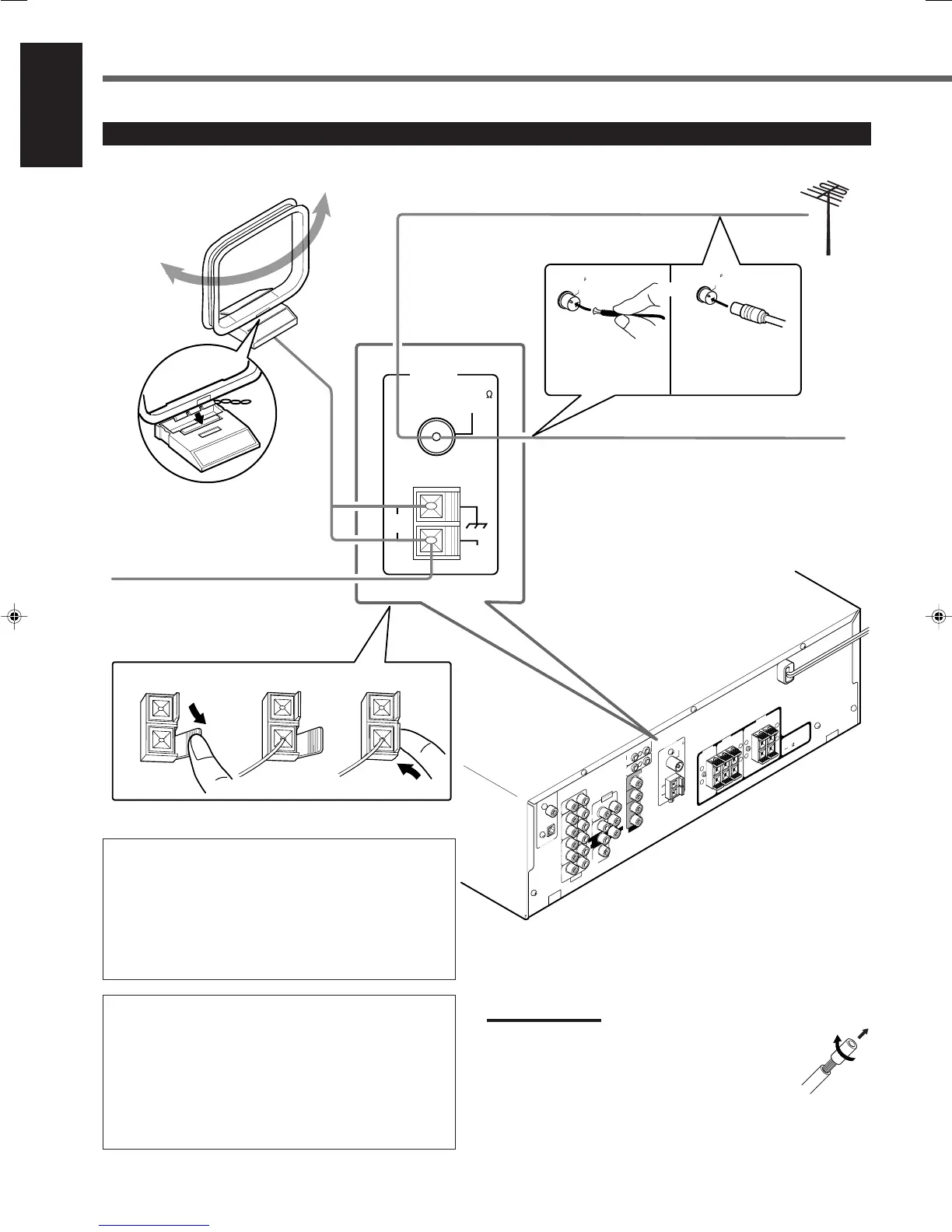

AM Loop Antenna
(supplied)
or
If AM reception is poor, connect outdoor
single vinyl-covered wire (not supplied).
Extend the supplied FM antenna horizontally.
FM antenna (supplied)
Outdoor FM antenna (not supplied)
If FM reception is poor, connect outdoor FM
antenna.
Supplied FM
antenna
Standard type
outdoor FM antenna
(not supplied)
Snap the tabs on the loop
into the slots of the base
to assemble the AM loop
antenna.
Notes:
• If the AM loop antenna wire is covered with vinyl,
remove the vinyl while twisting it as shown to the right.
• Make sure antenna conductors do not touch any other
terminals, connecting cords and the power cord. This
could cause poor reception.
