1-16 (No.MB303)
SECTION 5
TROUBLESHOOTING
5.1 Self-diagnose function
This model incorporates the following self-diagnostic functions.
5.1.1 Starting of self-diagnostic mode
• Insert power plug into outlet while pressing both "PRESET UP" key and "INPUT ANALOG" key of the main body.
Then, "Self-diagnostic mode" starts.
5.1.2 Displaying of state
• When "Self-diagnostic mode" starts, system Micon version is displayed on the FL display.
Each turning MULTI JOG of the main body in the mode changes a state as follows.
FL display (Code)
S0001
D01
D02
D3
D4
D5
D6
D7
FL display State
2004030840
00.00.17
04/02/20
DspRev08
ANALOG02
Fs48kHz
PCM
2/0.0
System Micon version
DSP Micon version
Changed date of version
DSP version
Setting information
Setting information
Setting information
Channel information

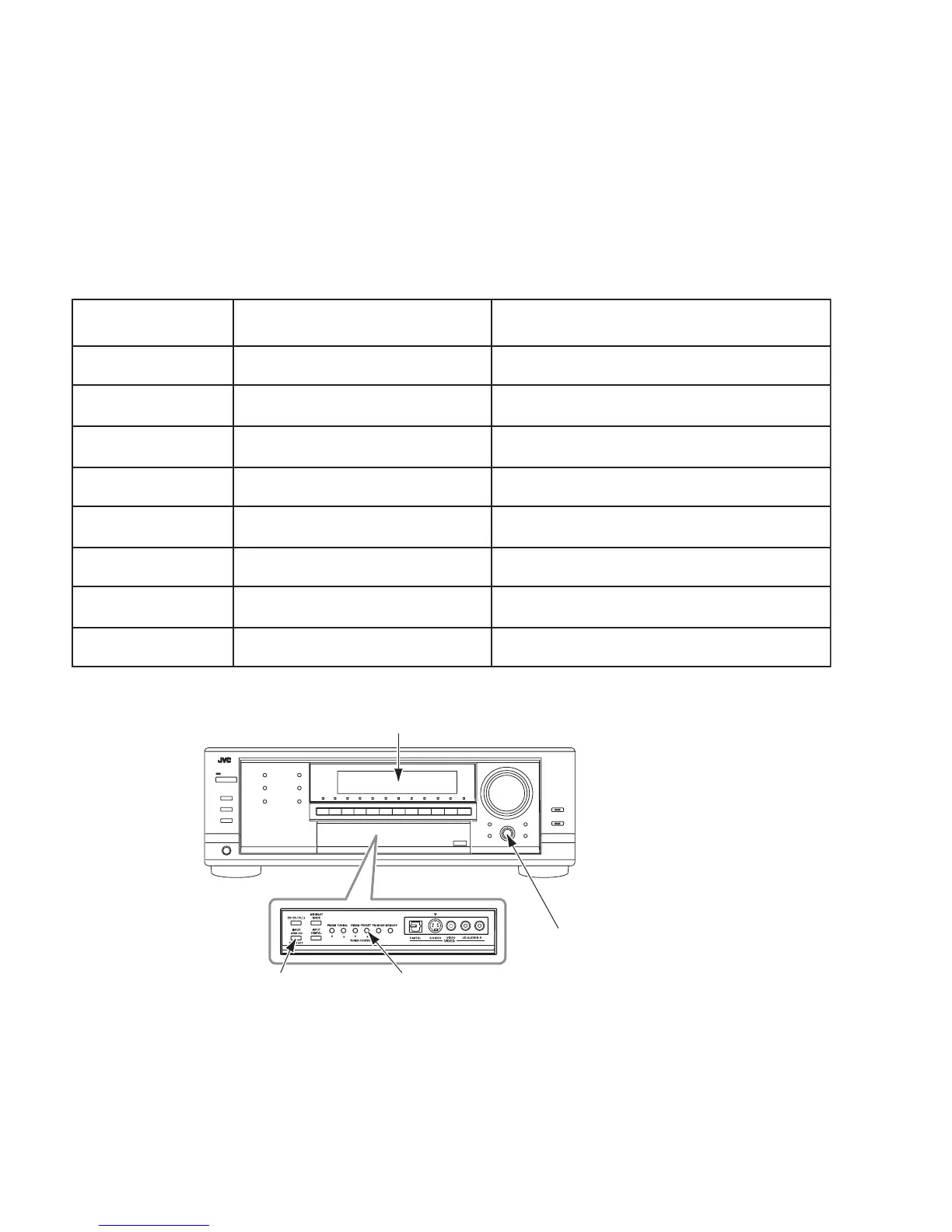

Multi JOG
Preset up keyInput analog key
FL display
To Next Page
