2
English

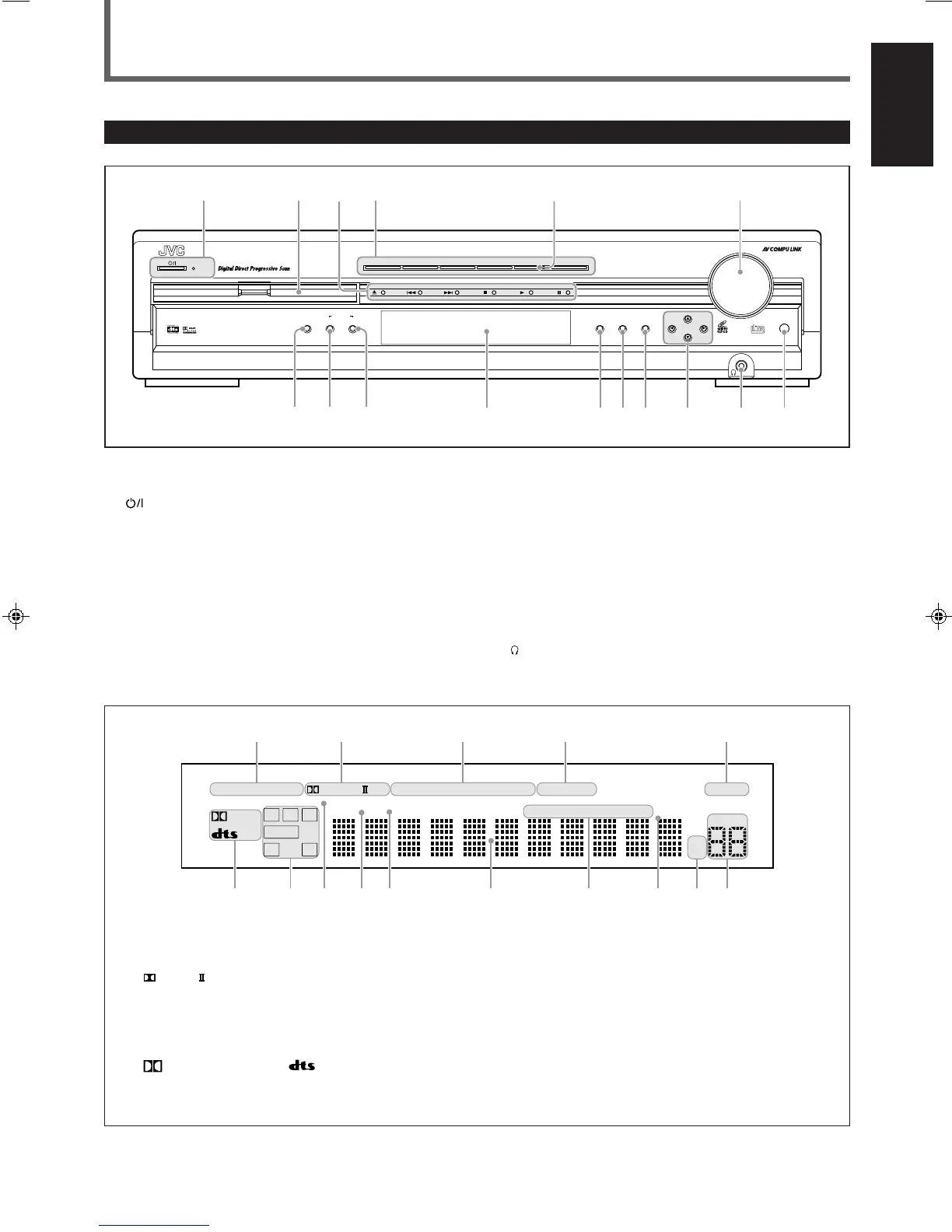

Parts Identification
Front Panel
See pages in the parentheses for details.
1
STANDBY/ON button and STANDBY lamp (11)
2 Disc tray and illumination lamp (15)
3 DVD player operation buttons
0 (open/close), 4 (reverse skip), ¢ (forward skip),
7 (stop), 3 (play), 8 (pause)
4 Source selecting buttons (11, 13)
• DVD, DBS, VCR, TV, TAPE/CDR, FM/AM
5 SOURCE NAME button (12)
6 MASTER VOLUME control (11, 16)
7 INPUT ANALOG/DIGITAL button (13)
INPUT ATT. (attenuator) button (14)
8 SURROUND ON/OFF button (16, 27)
9 SURROUND MODE button (16, 27)
REC MODE button (14)
p Display
• For details, see “Display” below.
q SETTING button (19 – 22)
w ADJUST button (23, 24)
e MEMORY button (17)
r CONTROL 5/∞/2/3 buttons (17 – 24)
t
(phones) jack (11)
y Remote sensor
Display
MASTER VOLUME
DVD/SUPER VCD/VCD/CD
INPUT ATT.
INPUT
ANALOG/DIGITAL
COMPACT
SUPER VIDEO
SETTING ADJUST MEMORY
RX-DV3 HOME CINEMA DVD/CD CONTROL CENTER
ON/OFF
SURROUND
MODE
FM/AMTAPE/CDR
SOURCE NAME
TVVCRDBSDVD
CONTROL
STANDBY
STANDBY/ON
123 6
7pwertyq
REC MODE
8 9
4
5
AUTO
SURROUND
12 3 4 5
ANALOG DIGITAL AUTO
PRO LOGIC
DSP PROGRAM REPEAT RANDOM1A-B PROGRESSIVE INPUT ATT
LS RSS
LFE
LCR
SUBWFR
VOLUME
RESUME SPK.
kHz
MHz
TUNED STEREO AUTO MUTING SLEEP
67 98-=~!@0
DIGITAL
1 Input mode indicators (13)
• ANALOG, DIGITAL AUTO
2 Surround mode indicators (25, 26)
•
, DSP
3 Play mode indicators (41, 42, 44, 46)
• PROGRAM, REPEAT 1A-B, RANDOM
4 PROGRESSIVE indicator (14)
5 INPUT ATT indicator (14)
6 Sound signal indicators (13)
•
(Dolby Digital), (DTS Digital Surround)
7 Signal and speaker indicators (27)
• L, C, R, SUBWFR (Subwoofer), LFE (Low Frequency Effect), LS,
S, RS
8 Surround indicators (27)
• AUTO SURROUND, SURROUND
9 RESUME indicator (16)
0 SPK. (speaker) indicator (11)
- Main display
= Tuner mode indicators (17, 18)
• TUNED, STEREO, AUTO MUTING
~ SLEEP indicator (12)
! Frequency unit indicators
• MHz (for FM station), kHz (for AM station)
@ VOLUME indication
EN01_10RX-DV3SL[UG]2.pm5 02.8.8, 2:21 PM2
