9
Getting started
110V
127V
220V
230 -
240V
2(DBS)3(VCR) 1(DVR/DVD)
DIGITAL IN

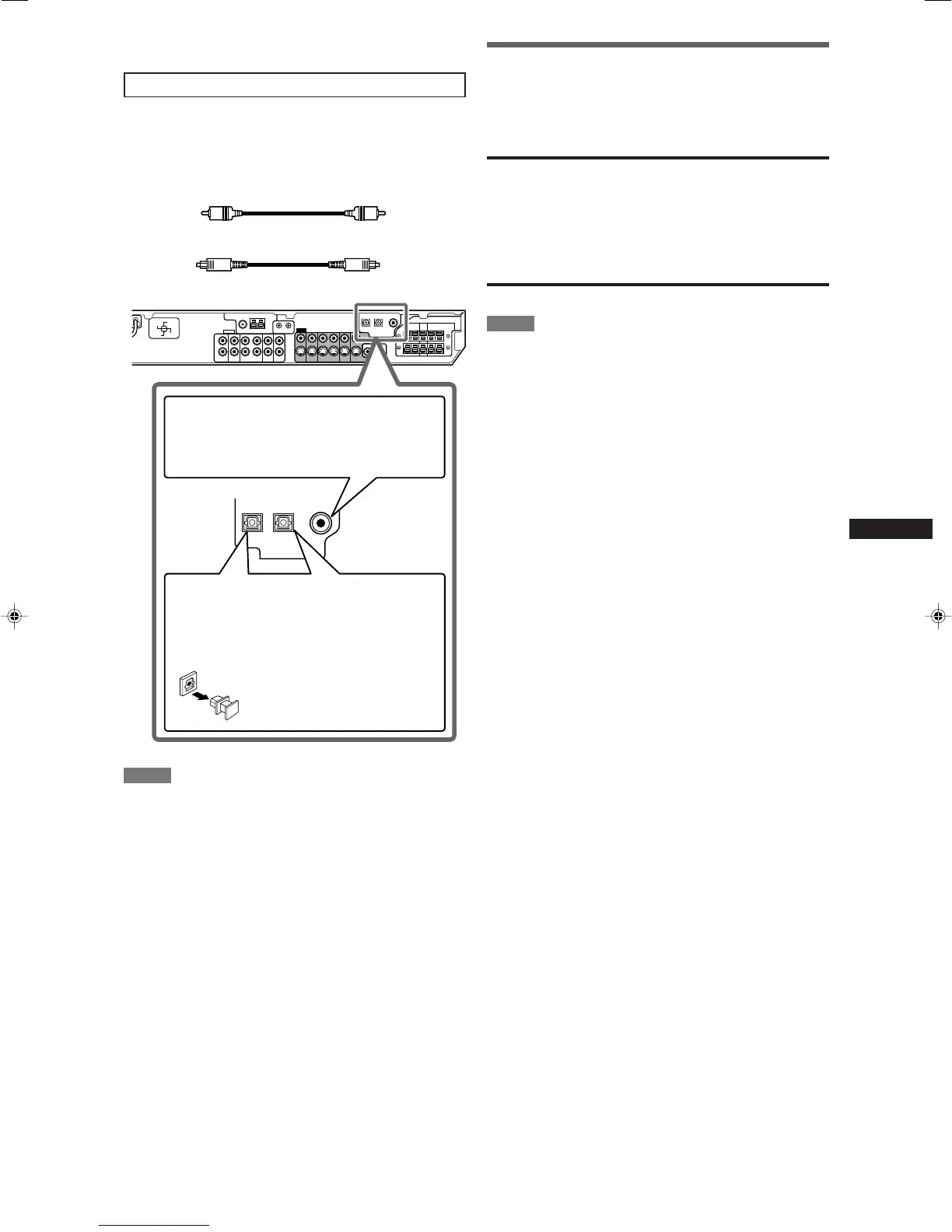

Digital connection
Turn off all components before making connections.
This receiver is equipped with three DIGITAL IN terminals—a
digital coaxial terminal and two digital optical terminals.
To reproduce the digital sound, use the digital connection in
addition to the analog connection methods described on pages 7
and 8.
Digital coaxial cable (supplied: 1 cable)
Digital optical cable (not supplied)
Connecting the power cord
When all the audio/video connections have been made, connect
the AC power plug to the wall outlet. Make sure that the plugs are
inserted firmly. The standby lamp lights in red.
CAUTIONS:
• Do not plug in before setting the VOLTAGE SELECTOR switch
on the rear of the receiver and all connection procedures are
complete.
• Do not touch the power cord with wet hands.
• Do not alter, twist or pull the power cord, or put anything heavy
on it, which may cause fire, electric shock, or other accidents.
• If the cord is damaged, consult a dealer and have the power
cord replaced with a new one.
NOTES
• Keep the power cord away from the connecting cables and the
antenna. The power cord may cause noise or screen
interference.
• The preset settings such as preset channels and sound
adjustment may be erased in a few days in the following cases:
– When you unplug the power cord.
– When a power failure occurs.
• If the wall outlet does not match the AC plug, use the supplied
AC plug adaptor (not supplied for Saudi Arabia).
When the component has a digital coaxial output
terminal, connect it to the 1(DVR/DVD) terminal,
using a digital coaxial cable (supplied).
NOTES
• When shipped from the factory, the DIGITAL IN terminals have
been set for use with the following components:
– 1(DVR/DVD): For DVD recorder or DVD player
– 2(DBS): For DBS tuner
– 3(VCR): For VCR
If you connect other components, change the digital input
(DIGITAL IN) terminal setting correctly. See “Setting the digital
input (DIGITAL IN) terminals—DIGITAL IN1/2/3” on page 19.
• Select the correct digital input mode. See “Selecting the analog
or digital input mode” on page 10.
When the component has a digital optical output
terminal, connect it to the 2(DBS) or 3(VCR)
terminal, using a digital optical cable (not supplied).
Before connecting a digital
optical cable, unplug the
protective plug.
EN06-09RXE11S[US_UX]2.p65 06/12/2004, 21:379
