7
Getting started
110V
127V
220V
230 -
240V
TV
DBS
IN
IN
DBS
IN
MONITOR
OUT
VIDEO
S-VIDEO
Å
Çı
TV
Å To audio output
ı To S-video input
Ç To composite video input
S-video cable
(not supplied)
Stereo audio cable
(not supplied)
Composite
video cable
(not supplied)

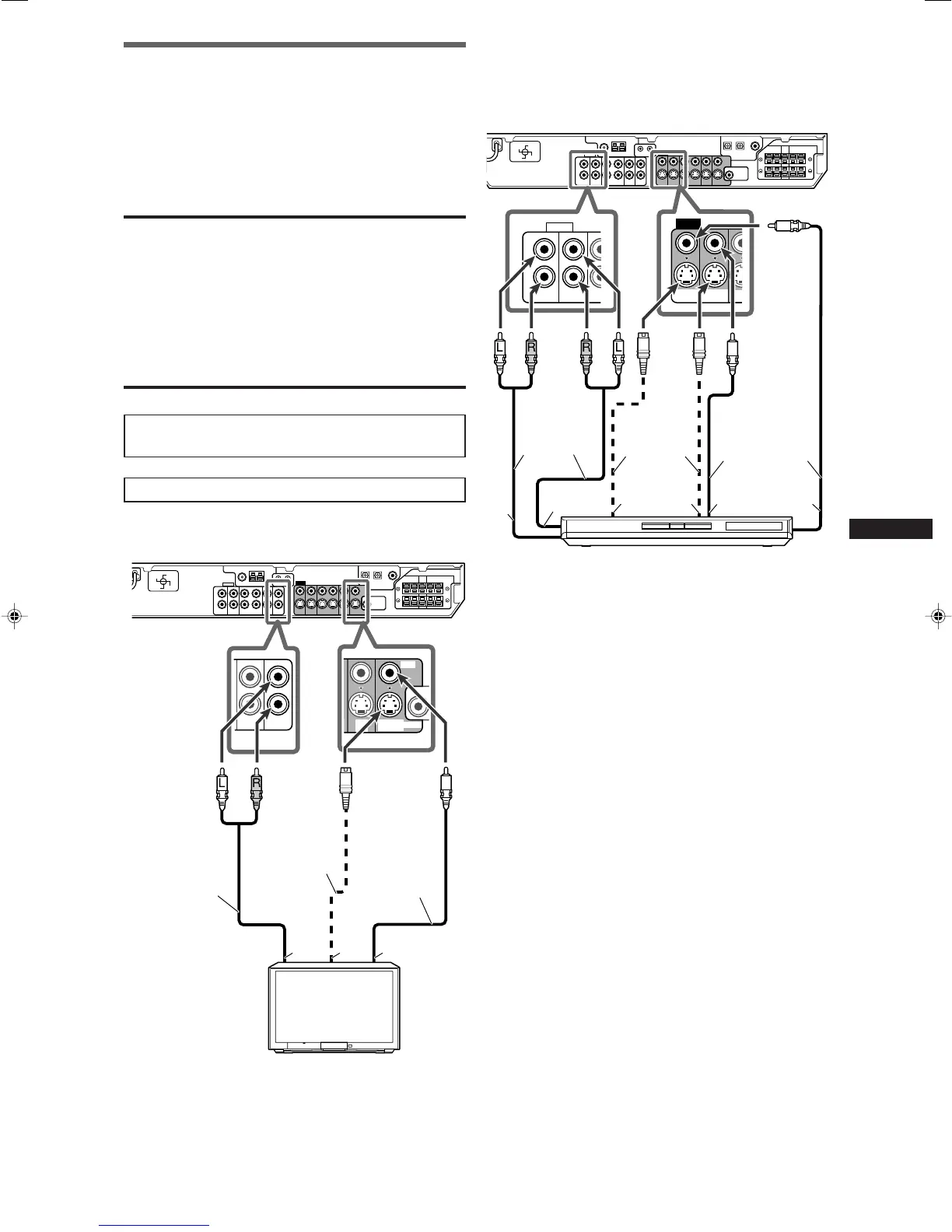

Connecting video components
You can use composite video cables or S-video cables for video
connection. By using the S-video cable, you can get better picture
quality.
• If your video components have digital output terminal, also
connect them using the digital terminals explained in “Digital
connection” (see page 9). By using these terminals, you can get
better sound quality.
CAUTIONS:
• The video signals from one type of input terminals are
transmitted only through the video output terminals of the same
type. Therefore, if a recording video component and a playing
video component are connected to the receiver through the
video terminals of different type, you cannot record the picture.
In addition, if the TV and a playing video component are
connected to the receiver through the video terminals of
different type, you cannot view the playback picture on the TV.
• If you connect a sound-enhancing device such as a graphic
equalizer between the source components and this receiver, the
sound output through this receiver may be distorted.
DO NOT use a TV through a VCR or a TV with a built-in
VCR; otherwise, the picture may be distorted.
Turn off all components before making connections.
7 Connecting a TV
110V
127V
220V
230 -
240V
VIDEO
OUT
(REC)
DVR/DVD
IN (PLAY)
DVR
OUT (REC)
OUT
(REC)
DVR
OUT (REC)
DVR/DVD
IN (PLAY)
L
R
AUDIO
‰
Ï
ı
Î
Ç
Å
DVD recorder or DVD player
7 Connecting a DVD recorder or DVD player
To fully enjoy Dolby Digital and DTS multi-channel software
(including Dual Mono software), connect the DVD recorder or
DVD player through the digital input/output terminals (see page
9).
Å To audio input (DVD recorder only)
ı To audio output
Ç To S-video input (DVD recorder only)
Î To S-video output
‰ To composite video output
Ï To composite video input (DVD recorder only)
S-video cable
(not supplied)
Stereo audio
cable (not
supplied)
Composite
video cable
(not supplied)
EN06-09RXE11S[US_UX]2.p65 06/12/2004, 21:377
