5
110V
127V
220V
230 -
240V
ANTENNA
COAXIAL
AM LOOP
FM 75
AM EXT
Snap the tabs on the loop
into the slots of the base
to assemble the AM loop
antenna.

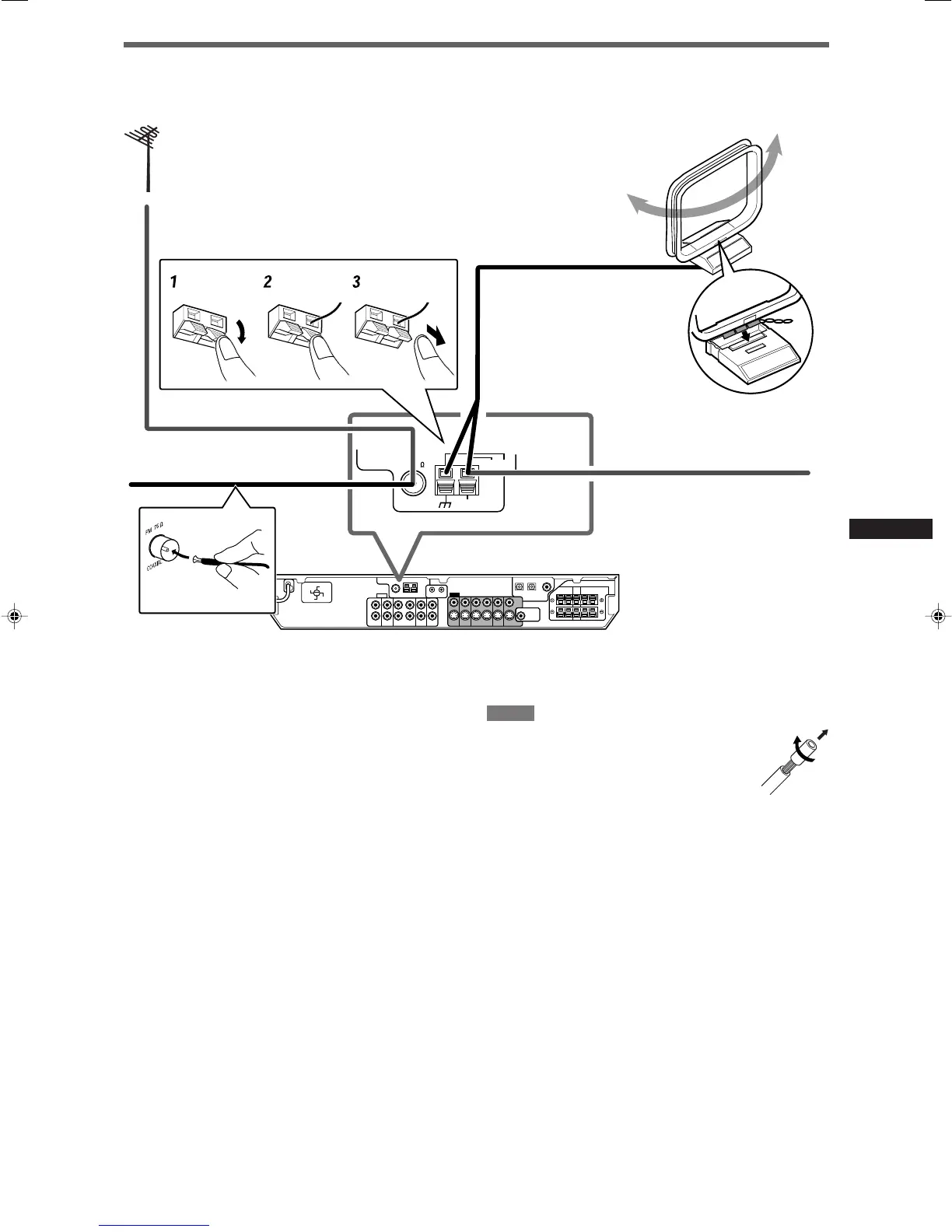

Connecting the FM and AM antennas
AM loop antenna
(supplied)
If AM reception is poor, connect
an outdoor single vinyl-covered
wire (not supplied).
AM antenna connection
Connect the AM loop antenna supplied to the AM LOOP
terminals.
Turn the loop until you have the best reception.
• If the reception is poor, connect an outdoor single vinyl-covered
wire (not supplied) to the AM EXT terminal. Keep the AM loop
antenna connected.
FM antenna connection
Connect the FM antenna supplied to the FM 75 Ω COAXIAL
terminal as a temporary measure.
Extend the supplied FM antenna horizontally.
• If the reception is poor, connect an outdoor FM antenna (not
supplied). Before attaching a 75 Ω coaxial cable with a
connector (IEC or DIN 45325), disconnect the supplied FM
antenna.
If FM reception is poor, connect an
outdoor FM antenna (not supplied).
FM antenna (supplied)
NOTES
• If the AM loop antenna wire is covered with vinyl,
remove the vinyl while twisting it as shown on the
right.
• Make sure the antenna conductors do not touch
any other terminals, connecting cords and power
cord. This could cause poor reception.
Getting started
