Parts identification
Parts identification

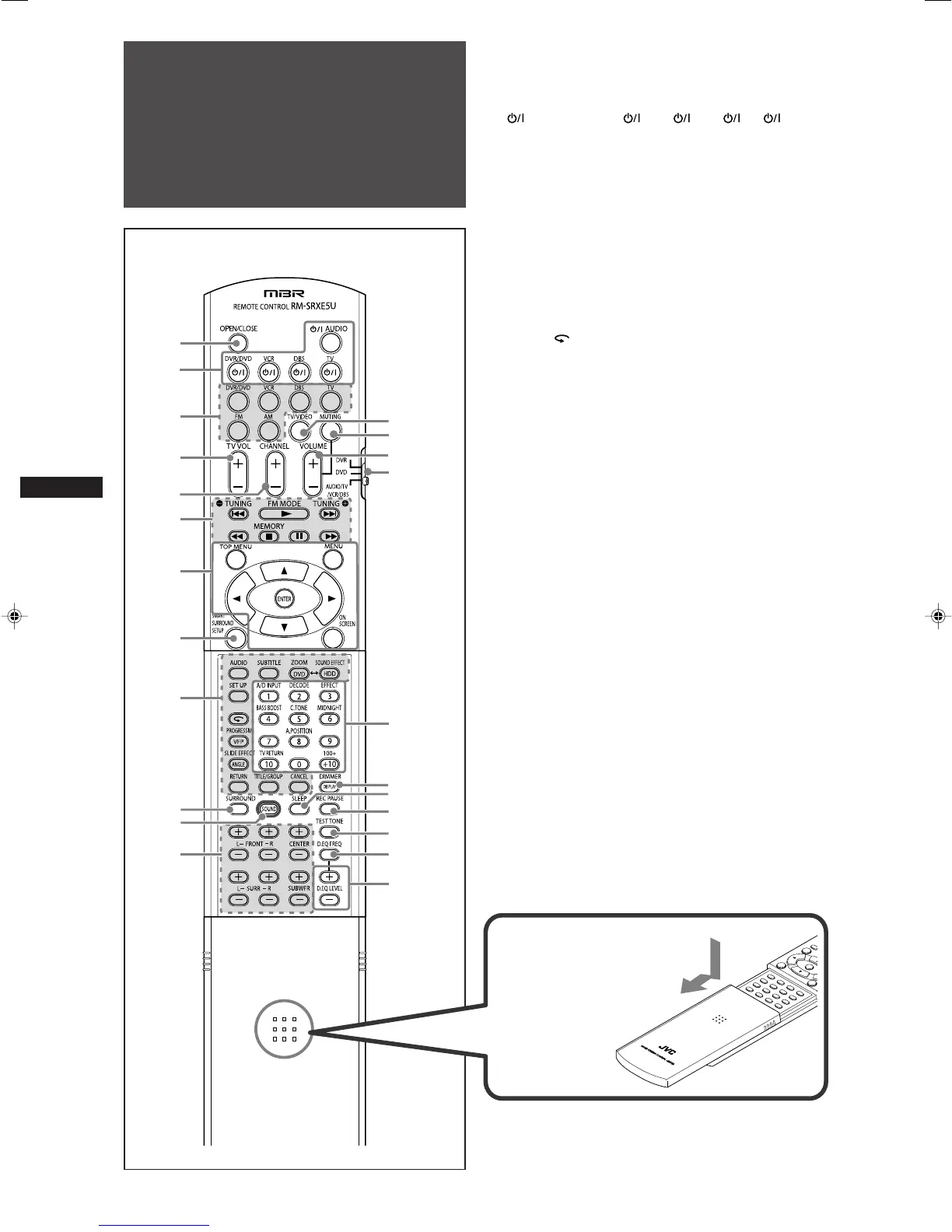

Remote control
See pages in parentheses for details.
1 OPEN/CLOSE button* (33)
2 Standby/on buttons (10, 32 – 36)
AUDIO, DVR/DVD , VCR , DBS , TV
3 Source selecting buttons (10, 23, 32, 34 – 36)
DVR/DVD, VCR, DBS, TV, FM, AM
4 TV VOL (volume) +/– button (32, 34)
5 CHANNEL +/– button (32 – 36)
6 • Operating buttons for video components (32, 33, 35, 36)
4, 3, ¢, 1, 7, 8, ¡
• Operating buttons for tuner (23, 24)
( TUNING, FM MODE, TUNING 9, MEMORY
7 Operating buttons for DVD recorder or DVD player* (33)
TOP MENU, MENU, cursor buttons (3, 2, 5, ∞), ENTER,
ON SCREEN
8 SMART SURROUND SETUP button (14)
9 Operating buttons for DVD recorder or DVD player* (33)
AUDIO, SUBTITLE, DVD, ZOOM, HDD, SOUND EFFECT,
SET UP, , VFP, PROGRESSIVE, ANGLE,
SLIDE EFFECT, RETURN, TITLE/GROUP, CANCEL
p SURROUND button (28)
q SOUND button (10 – 12, 18, 21, 22)
w Adjusting buttons for speaker and subwoofer output levels
(21)
FRONT L +/–, FRONT R +/–, CENTER +/–, SURR L +/–,
SURR R +/–, SUBWFR +/–
e TV/VIDEO button (32, 34)
r MUTING button (12)
t VOLUME +/– button (11)
y Mode selector (10, 32 – 36)
DVR, DVD, AUDIO/TV/VCR/DBS
u • Numeric buttons (24, 32 – 36)
• Adjusting buttons (10 – 12, 18, 21, 22)
A/D INPUT, DECODE, EFFECT, BASS BOOST, C.TONE,
MIDNIGHT, A.POSITION
• TV RETURN button (32)
i • DISPLAY button* (33)
• DIMMER button (12, 33)
o SLEEP button (13)
; REC PAUSE button (33)
a TEST TONE button (21)
s D.EQ FREQ button (22)
d D.EQ LEVEL +/– buttons (22)
* These buttons can be used for operating a JVC DVD recorder
or DVD player with the mode selector set to “DVR” or “DVD”
(see page 33).
If these buttons do not function normally, use the remote control
supplied with your DVD recorder or DVD player. Refer also to
the manuals supplied with the DVD recorder or DVD player for
details.
To open the cover of the remote
control, push here then slide
downward.
