2.10 DISASSEMBLY/ASSEMBLY OF THE MECHANISM
ASSEMBLY
2.10.1 Introduction
The disassembly and assembly of the mechanism assem-
bly should usually be performed in the ASSEMBLY mode.
(Table 2-10-1)
Note that the mechanism is in the cassette in (C-IN) mode
when the mechanism assembly is taken out of the set and
that the C-IN mode should be switched to the ASSEMBLY
mode in this case.
2.10.2 Mechanism Modes
The mechanism has 6 modes as shown in Table 2-11-1. The
current mode can be confirmed by the positioning of the “
”
marking on the sub-cam gear and the “ ” marking on the
mechanism.
See the following figures (Figs. 2-10-1 to -6) for details.
Note:
•
This mechanism assembly has another ASSEMBLY
mode. However, this mode cannot be identified from the
markings because it corresponds to an intermediate po-
sition between the C-IN (
C
) mode and S-FF (
H
) mode.
This mode can be confirmed by the rotary encoder
phase. See Fig. 2-10-7.
1. Checking the mechanism mode
R. ENC -20
ROTARY
ENCORDER
2
1
3
MAIN CAM GEAR 0
C-IN
ASSEMBLY
S. FF
LOADING END
PLAY REV STOP FF/REW
0
15
33.33
40
166.66
140
193.33
160
226.66
185
273.33
220
306.66
245
36°
17°
169.66°
87°
190.33°
196.33°
223.66°
229.66°
270.33°
276.33°
303.66°
30.33°
36.33°
MODE
PARTS
H
C H P
R S F
To set the ASSEMBLY mode, apply 3 V DC to the electrodes
on the upper part of the loading motor as shown in Fig. 2-
10-7.

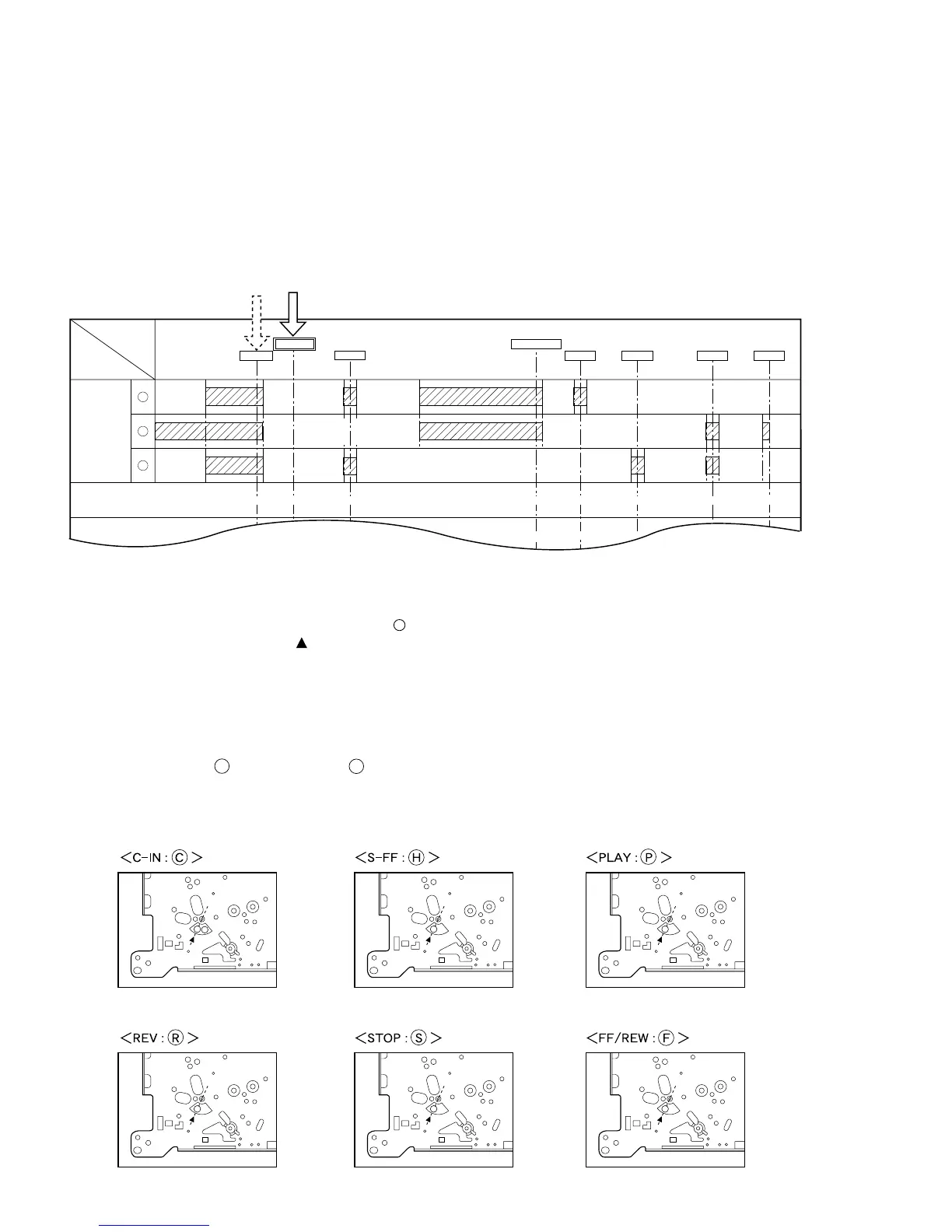

Fig. 2-10-1 Fig. 2-10-2 Fig. 2-10-3
Fig. 2-10-4 Fig. 2-10-5 Fig. 2-10-6
Table 2-10-1
To Next Page
