JVC TH-G60 - Optional Equipment Connection; AUX in Connection (A); OPTICAL in Connection (O); AUDIO in Connection (D)

7
Installation and Setup
Optional Equipment Connection
AUX IN connection (A)
Connect a Output of auxiliary device to the AUX
AUDIO Input (L/R) Connector.
OPTICAL IN connection (O)
Connect an optical output of DVD Player (or Digital
Device etc) to the OPTICAL IN connector.
AUDIO IN connection (D)
Connect a output of portable device (MP3 or PMP
etc) to the AUDIO input connector.
VIDEO
OUT IN
AUDIO (L)
AUDIO (R)
OPTICAL
OUT

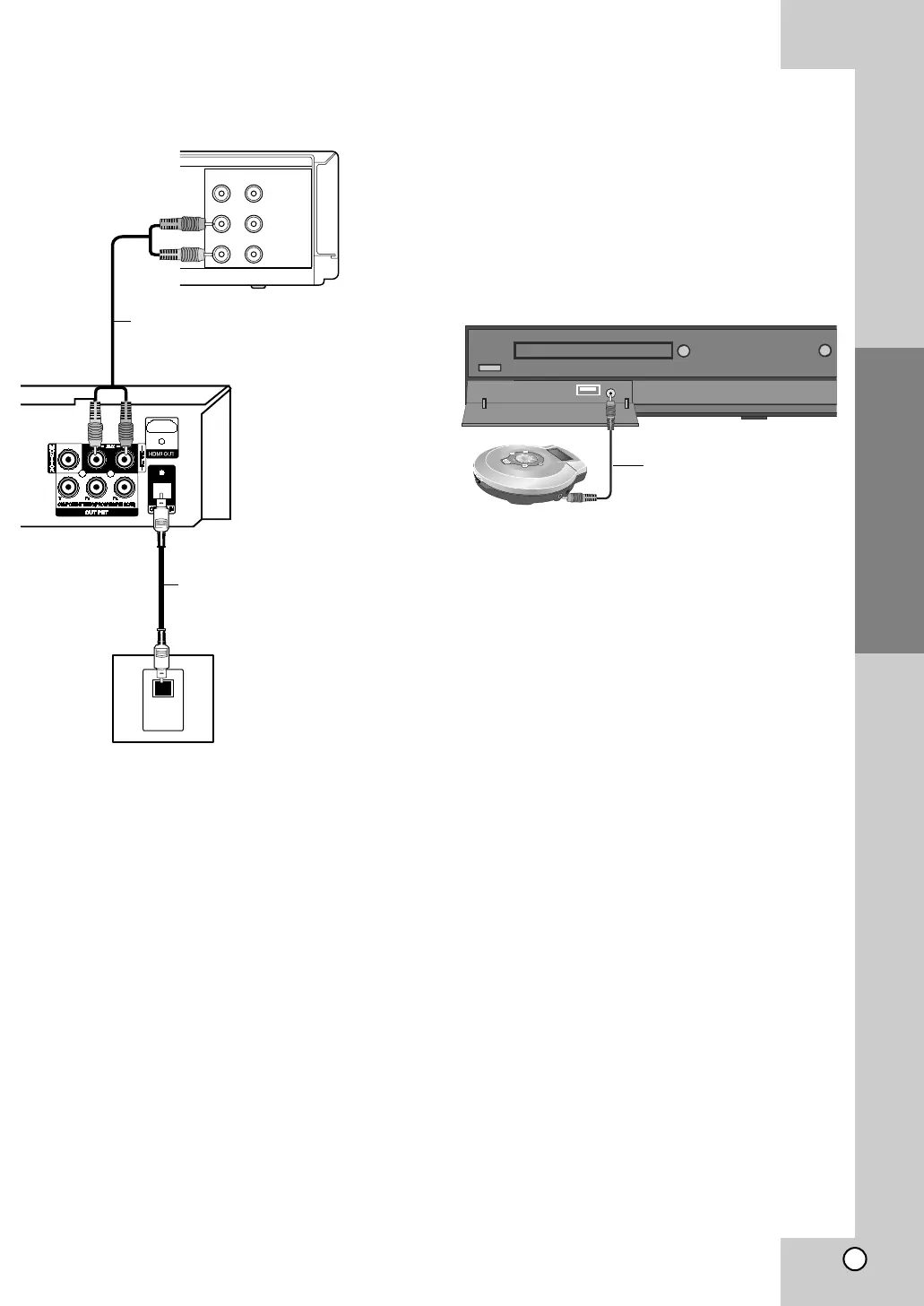

Rear of DVD/CD Receiver
O
A
Auxiliary device
DVD Player
(or Digital
Device, etc)
To AUDIO OUT (L/R)
To AV IN AUDIO (L/R)
D
Portable device
To AUDIO OUT
To AUDIO IN
(not supplied)
(not supplied)
(not supplied)
