(No.MB623)1-13

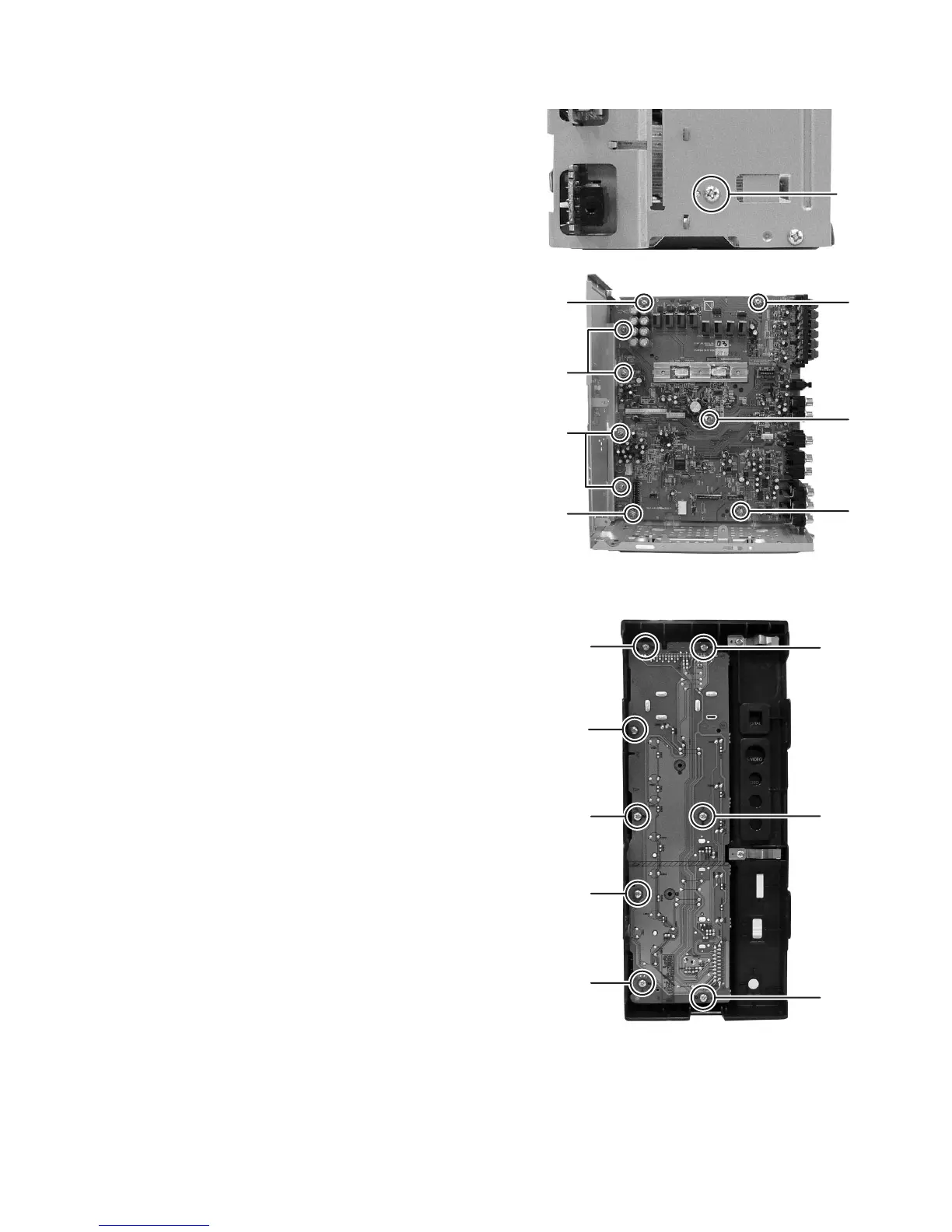

3.1.10 Removing the MAIN BOARD assembly
(See Fig.23, 24)
(1) Remove the one screw W attaching the BRACKET
BOARD. (See Fig.23)
(2) Remove the four screws X attaching the JACK BRACKET.
(See Fig.24)
(3) Remove the one screw Y attaching the MAIN BOARD as-
sembly. (See Fig.24)
(4) Remove the four screws Z attaching the MAIN BOARD as-
sembly. (See Fig. 24)
Fig.23
Fig.24
3.1.11 Removing the FRONT BOARD assembly
(See Fig.25)
(1) Remove the eight screws A' attaching the FRONT BOARD
assembly.
Fig.25
W
X
X
Z
Z
Y
Z
Z
A'
A'
A'
A'
A'
A'
A'
A'
