JVC TH-L1A User Manual

(No.MB623)1-5
SECTION 2
SPECIFIC SERVICE INSTRUCTIONS
This service manual does not describe SPECIFIC SERVICE INSTRUCTIONS.
SECTION 3
DISASSEMBLY
3.1 Main body
3.1.1 Removing the SIDE PANEL
(See Fig.1, 2)
(1) Remove the nine screws A attaching the SIDE PANEL.
(See Fig.1)
(2) Remove the three screws B attaching the SIDE PANEL.
(See Fig.2)

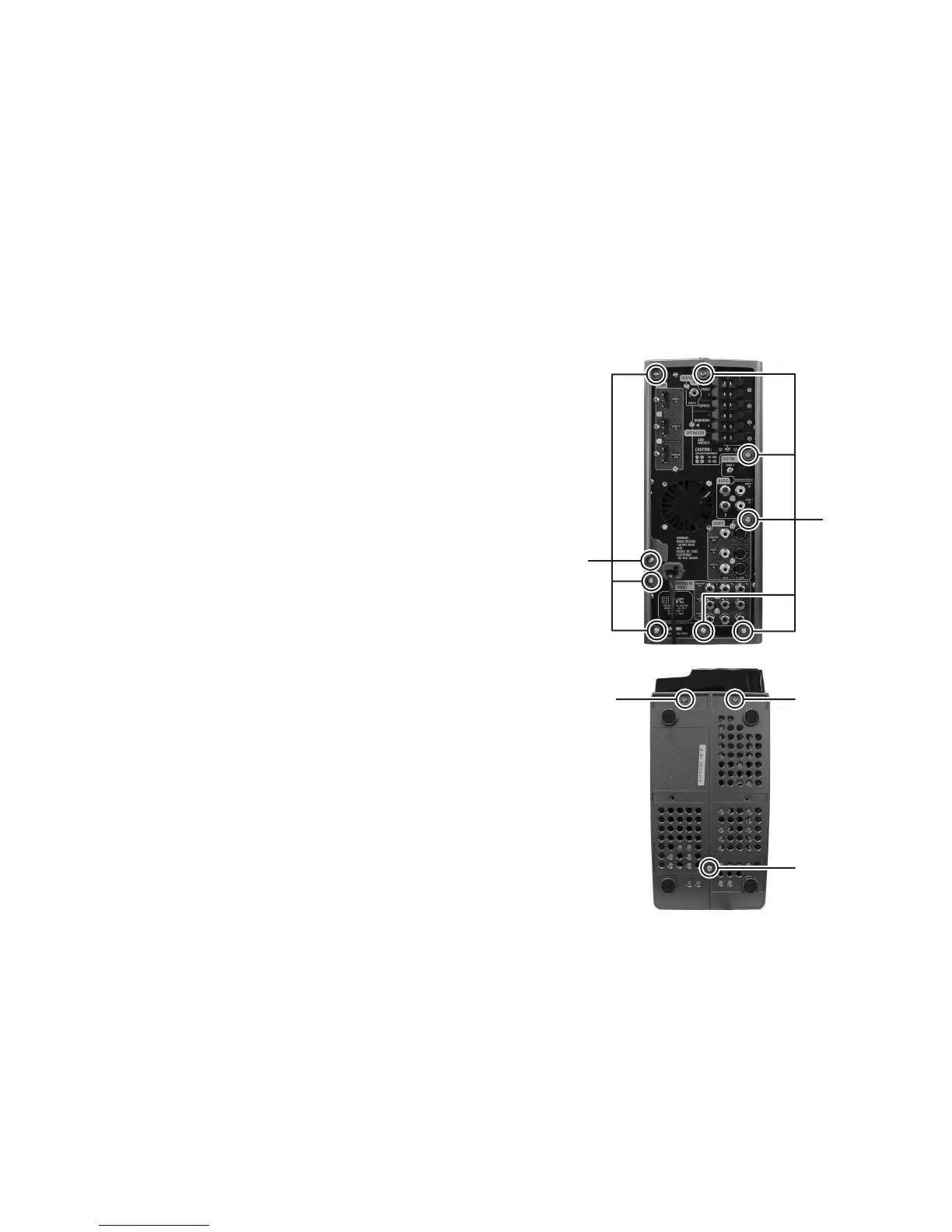

Fig.1
Fig.2
A
A
BB
B
