3.1.2 Removing the FRONT PANEL assembly
(See Fig.3, 4)
(1) Remove the two screws C attaching the both side of
FRONT PANEL assembly. (See Fig.3)
(2) Disengage the six hooks a engaged both side of FRONT
PANEL assembly. (See Fig.3)
(3) Disconnect the card wire from MAIN BODY connected to
connector CN860
of the FL BOARD assembly. (See Fig.4)

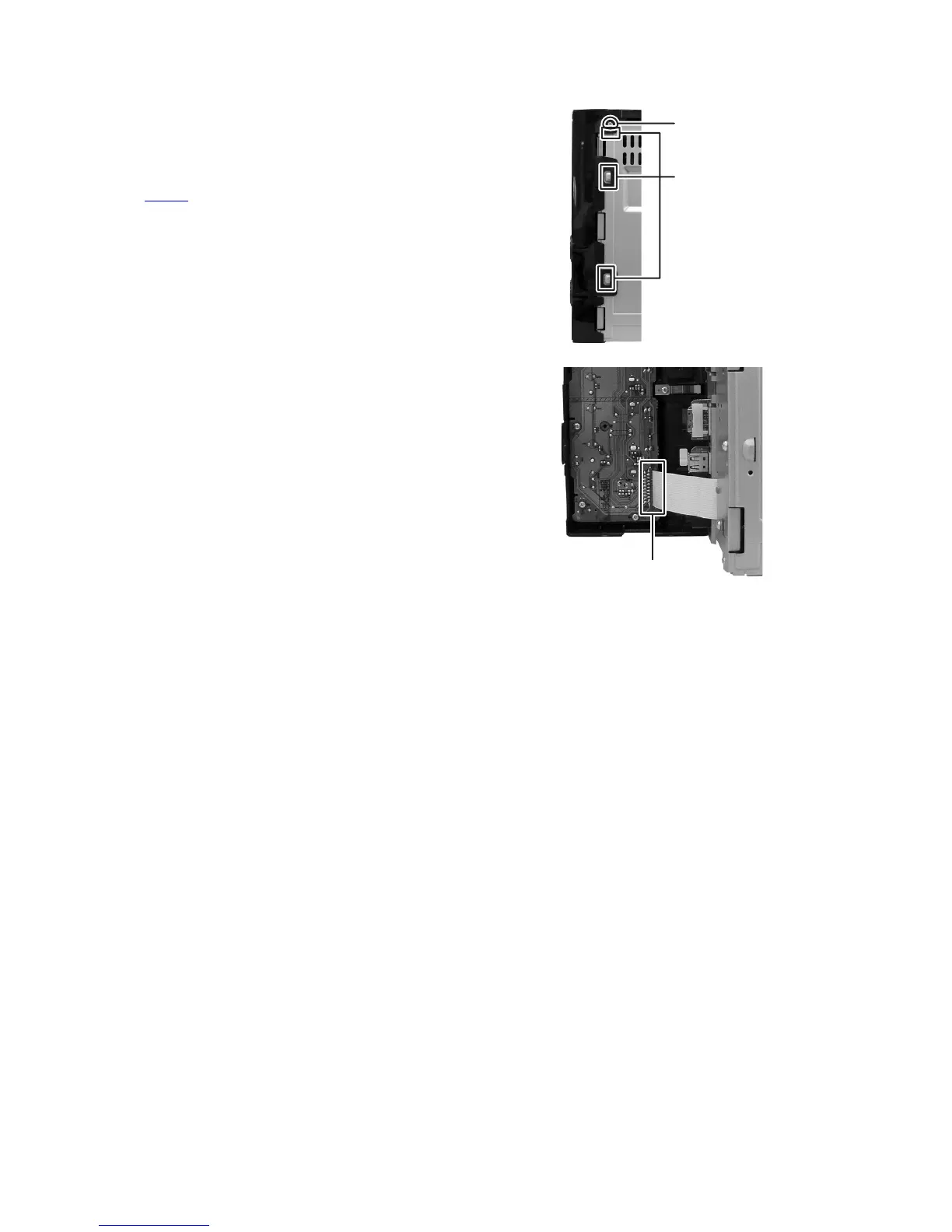

Fig.3
Fig.4
C
hook a
(both side)
CN860
