(No.MB623)1-7

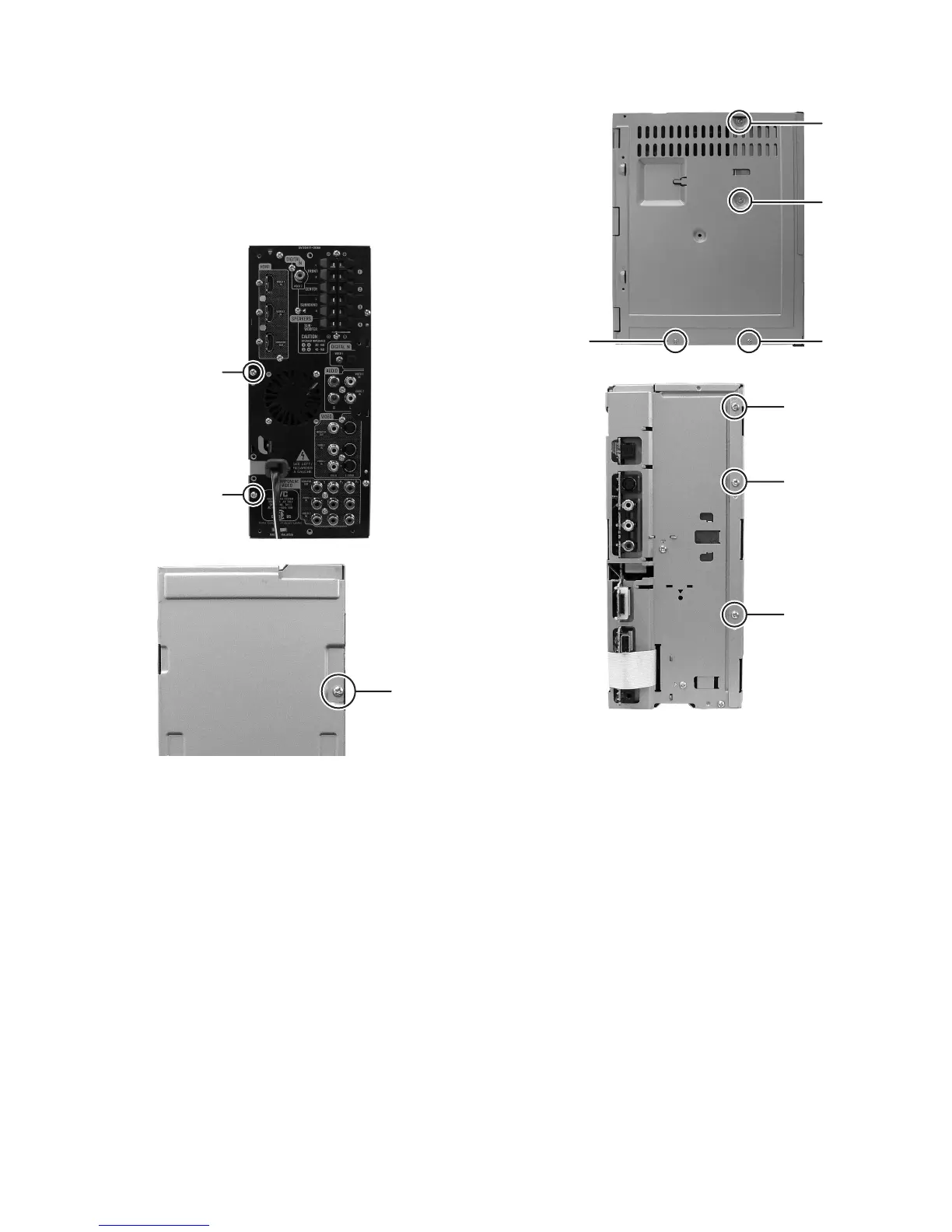

3.1.3 Removing the TOP CHASSIS
(See Fig.5 to 8)
(1) From the back side of main body, remove the two screws
D attaching the TOP CHASSIS. (See Fig.5)
(2) From the top side of main body, remove the one screw E
attaching the TOP CHASSIS. (See Fig.6)
(3) From the right side of main body, remove the four screws
F attaching the TOP CHASSIS. (See Fig.7)
(4) From the front side of main body, remove the three screws
G attaching the TOP CHASSIS. (See Fig.8)
Fig.5
Fig.6
Fig.7
Fig.8
D
D
E
F
F
F
F
G
G
G
