1-8 (No.MB623)
3.1.4
Removing the HDMI assembly
(See Fig.9, 10)
(1)
Disconnect the card wire
from HDMI assembly connected
to connector
CN901
of the VIDEO 2 BOARD assembly.
(See Fig.9)
(2)
Remove the two screws
H
and three screws
J
attach
ing the
HDMI BOARD assembly. (See Fig.10)

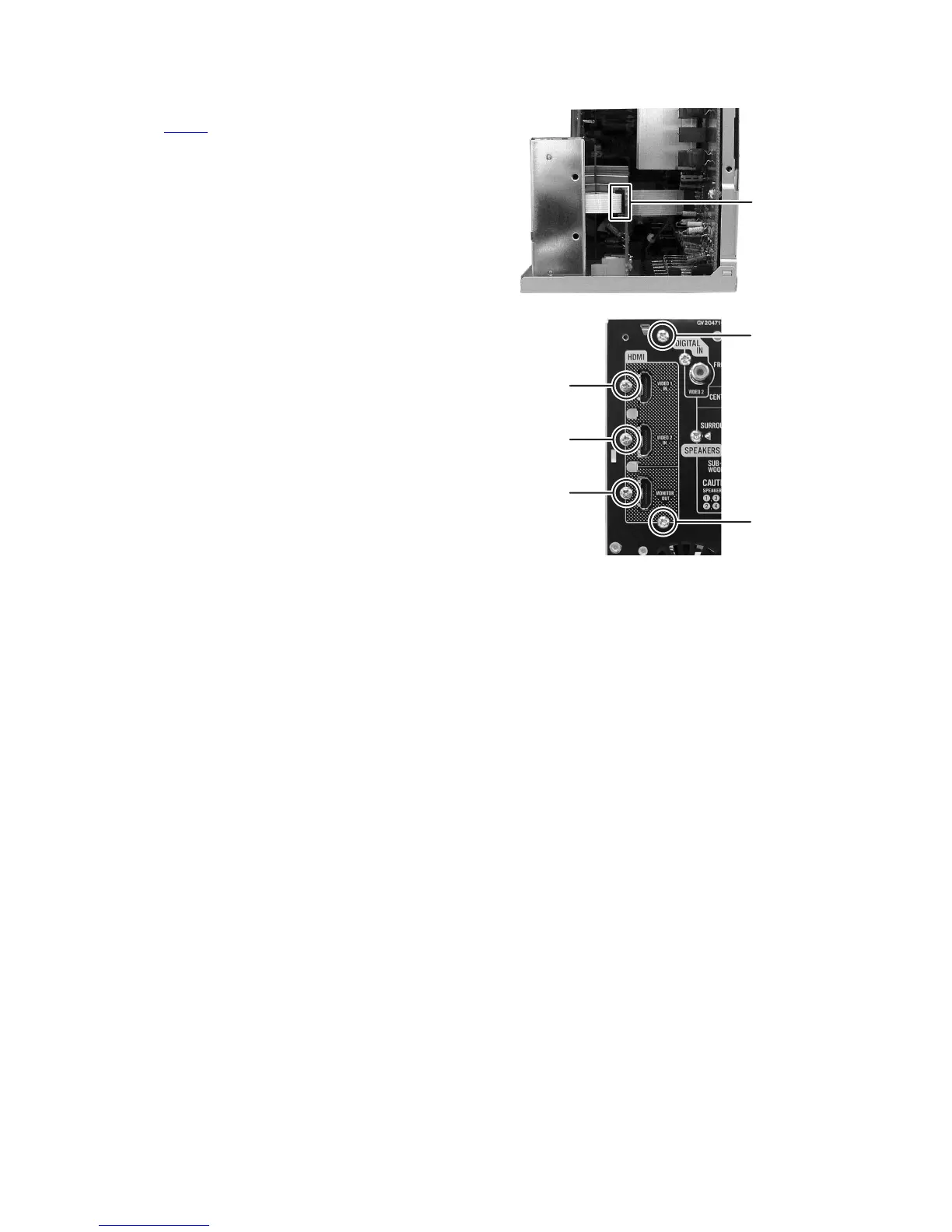

Fig.9
Fig.10
CN901
H
H
J
J
J
7
9
