3.1.5 Removing the VIDEO 2 BOARD assembly

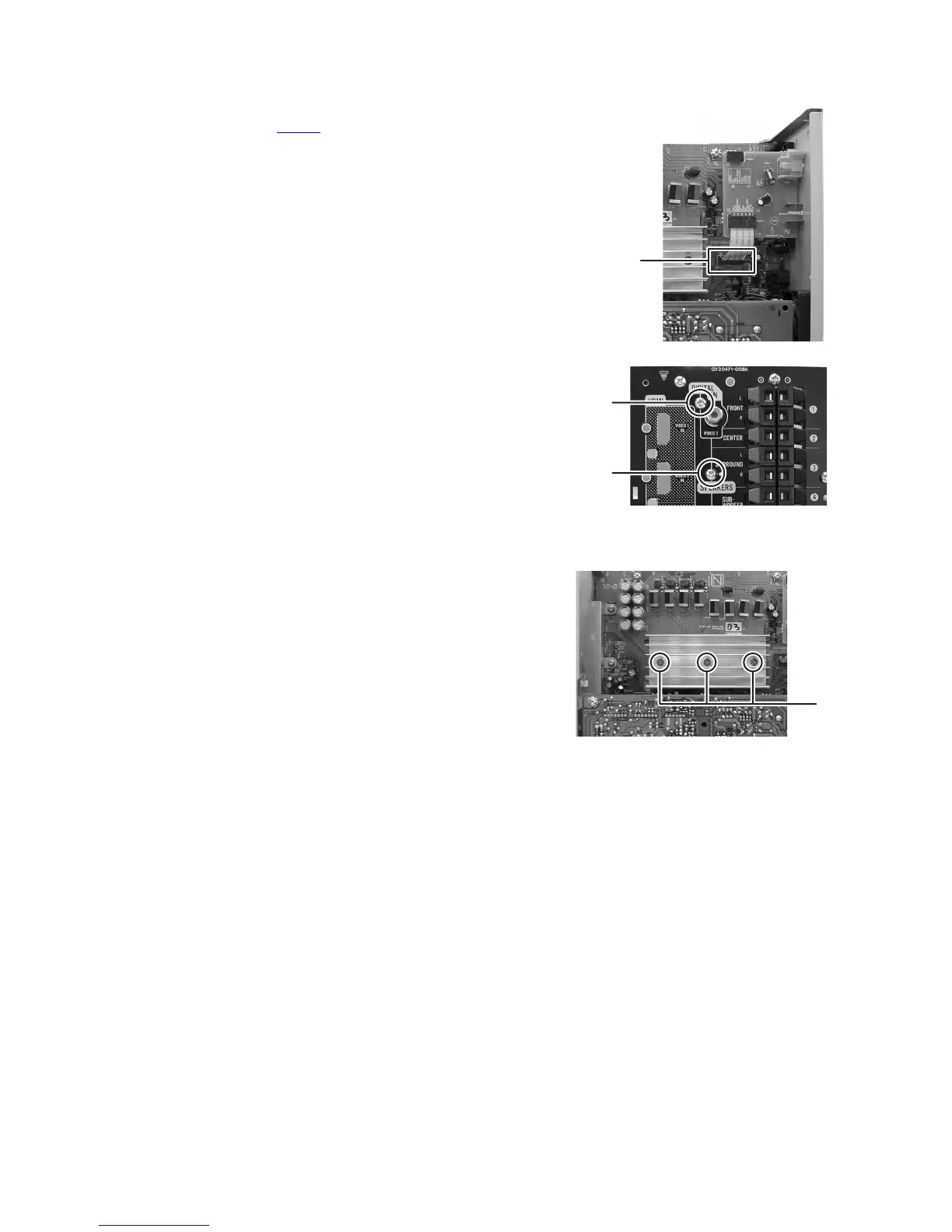

(See Fig.11, 12)
(1) Disconnect the card wire from VIDEO 2 BOARD assembly
connected to connector CN905
of the MAIN BOARD as-
sembly. (See Fig.11)
(2) Remove the two screws K attaching the VIDEO 2 BOARD
assembly. (See Fig.12)
Fig.11
Fig.12
3.1.6 Removing the HEAT SINK
(See Fig.13)
(1) Remove the three screws L attaching the HEAT SINK.
Fig.13
CN905
K
K
L
