3.1.9 Removing the DSP BOARD assembly
(See Fig.21, 22)
(1) Disconnect the card wire from DSP BOARD assembly con-
nected to connector CN203, CN204 and CN206 of the
MAIN BOARD assembly. (See Fig.21)
(2) Disconnect the connector wire from DSP BOARD assem-
bly connected to connector CN205
and CN320 of the MAIN
BOARD assembly. (See Fig.21)
(3) Remove the two screws V attaching the DSP BOARD as-
sembly. (See Fig.22)

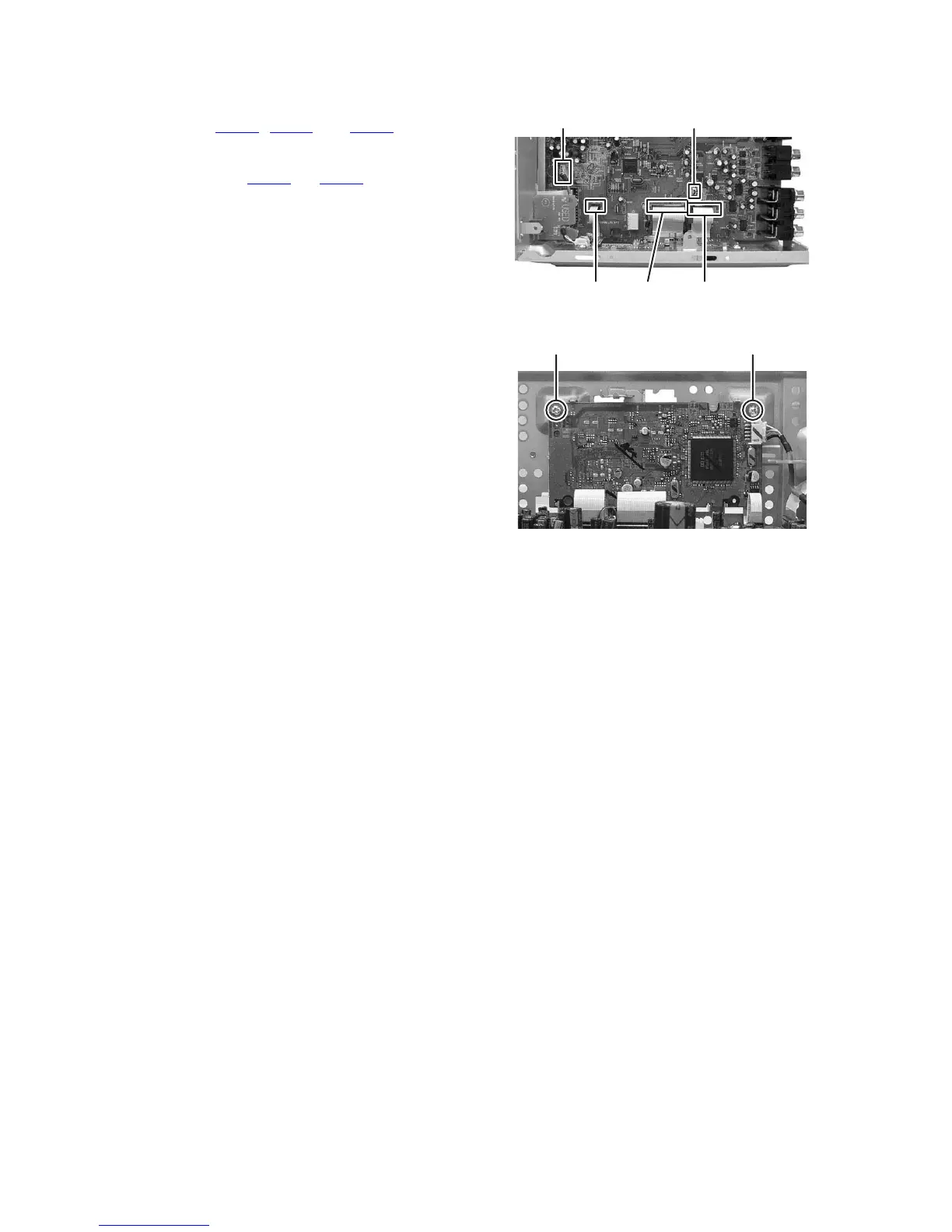

Fig.21
Fig.22
CN203CN204
CN320 CN205
CN206
VV
