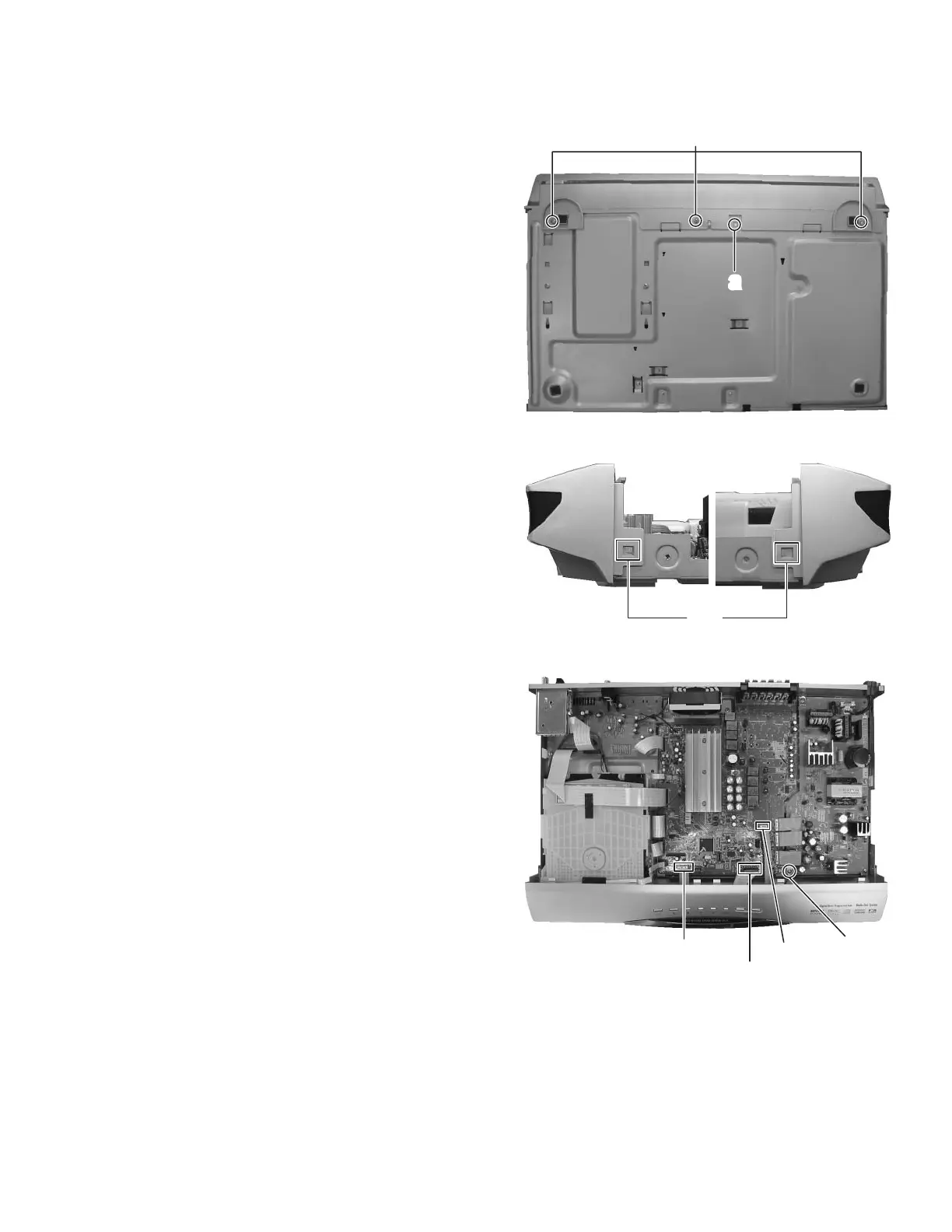

3.1.2 Removing the front panel assembly
(See fig.3 to 5)
(1) Remove the three screws C attaching the front panel as-
sembly from bottom side. (See Fig.3)
(2) Remove the screw D attaching the wire to power supply
board. (See Fig.5)
(3) Release the hook a of bottom side and hook b of both side
of front panel assembly. (See Fig.4 and 5)
Fig.3
Fig.4
Fig.5
C
a
b
D
CN101
CN421
CN422
