3.1.9 Removing the switch board
(See Fig.16)
(1) Remove the three screws N attaching the switch board.
3.1.10 Removing the headphone board
(See Fig.16)
(1) Remove the screw P attaching the headphone board.

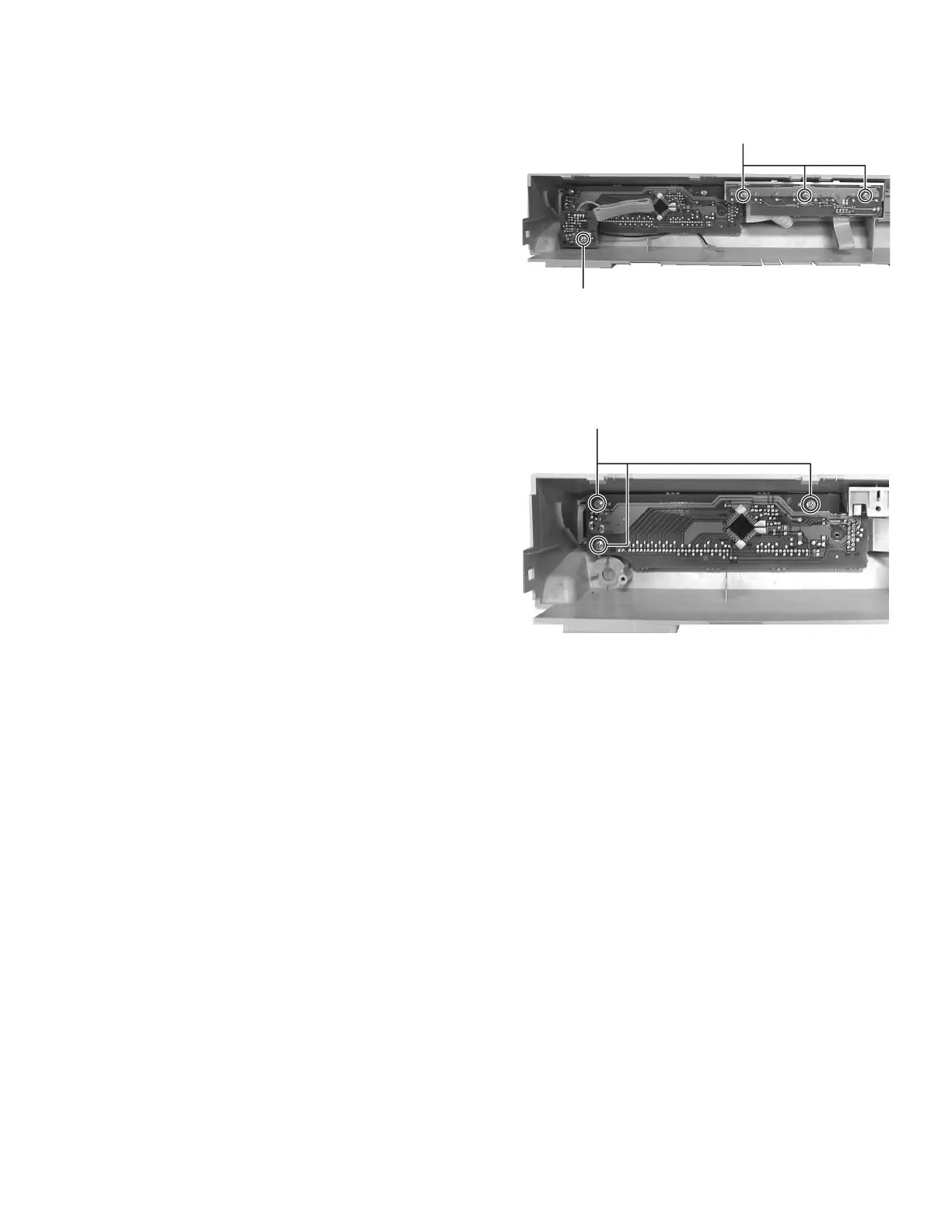

Fig.16
3.1.11 Removing the FL board
(See Fig.17)
(1) Remove the three screws Q attaching the FL board.
Fig.17
N
P
Q
