Connection/Installation
Machine ID Setting Switch
When controlling the system via a multi DROP system such
as
RM-P2580, a machine ID will be attached to the system to
differentiate it from other connected cameras.
Match the machine ID with the [VIDEO INPUT] number of
RM-P2580.
䡵 Machine ID Confirmation Procedures
1
Output the image of the camera to be checked on the
monitor
2 Turn on the power of the camera
● The camera initializes and the following screen is
displayed on the monitor.
3 Check the display on the monitor screen
● Check that ADUPLEXB, AID-LLB are displayed and
they match the [VIDEO INPUT] number of RM-P2580.
● Otherwise, reset the machine ID.
Memo ：
● When operating a system using the RM-P2580, several
cameras can be connected and used on one control
signal cable. Consequently, an incorrect switch setting on
just a single camera will cause the entire system to work
incorrectly.
Switch Setting (continued)

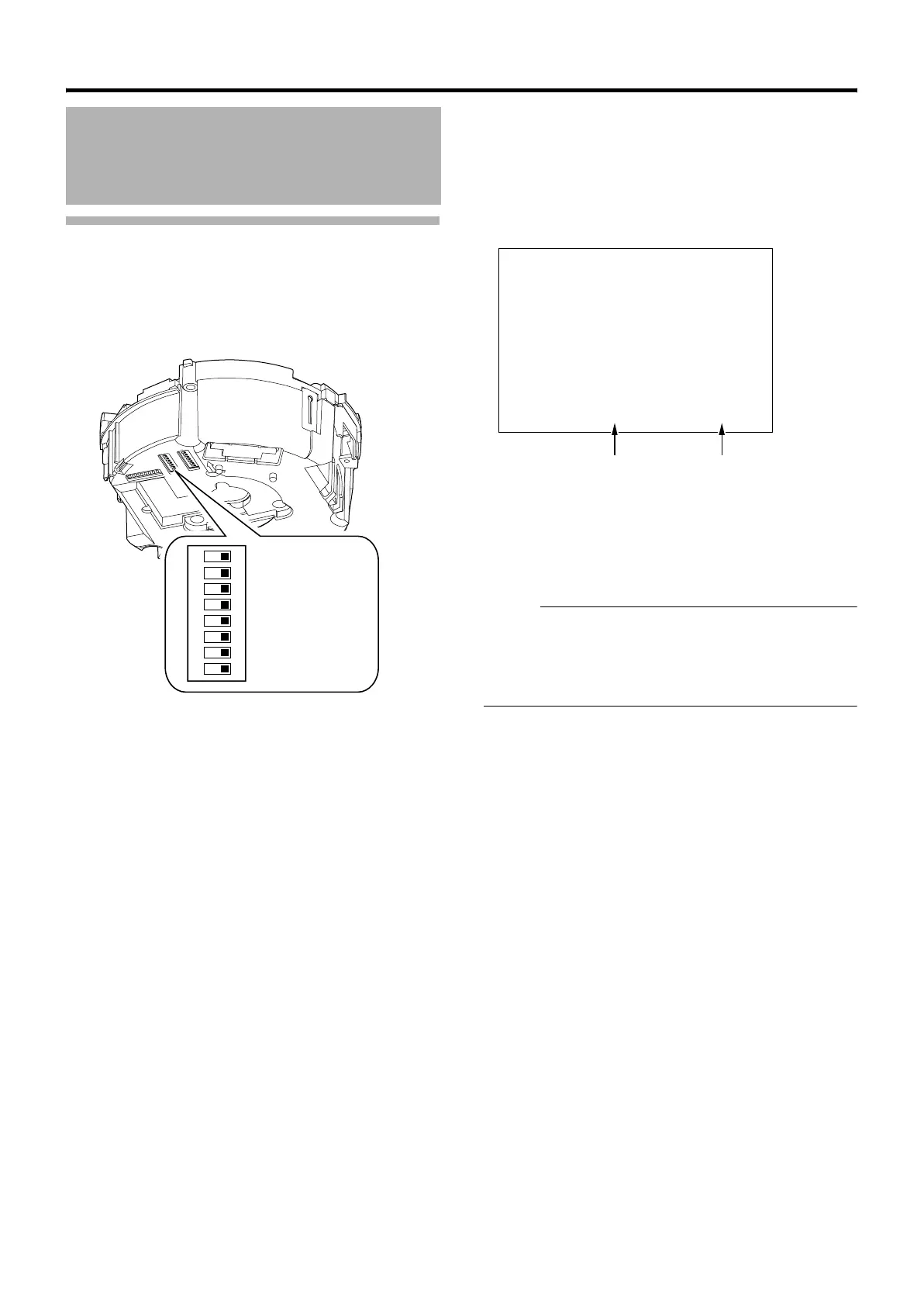

1
ON
234 6785
Machine ID
Setting Switch
>>
INITIAL PROCESS
<<
PAN : - - I - -
TILT : - - I - -
PROTCOL DUPLEX : ID-01
Confirm that ADUPLEXB
is displayed
Check that AID-LLB is displayed
and LL is the correct number
