JVC TK-C686E - HOME M.DETECT (TRACKING) Setting

46

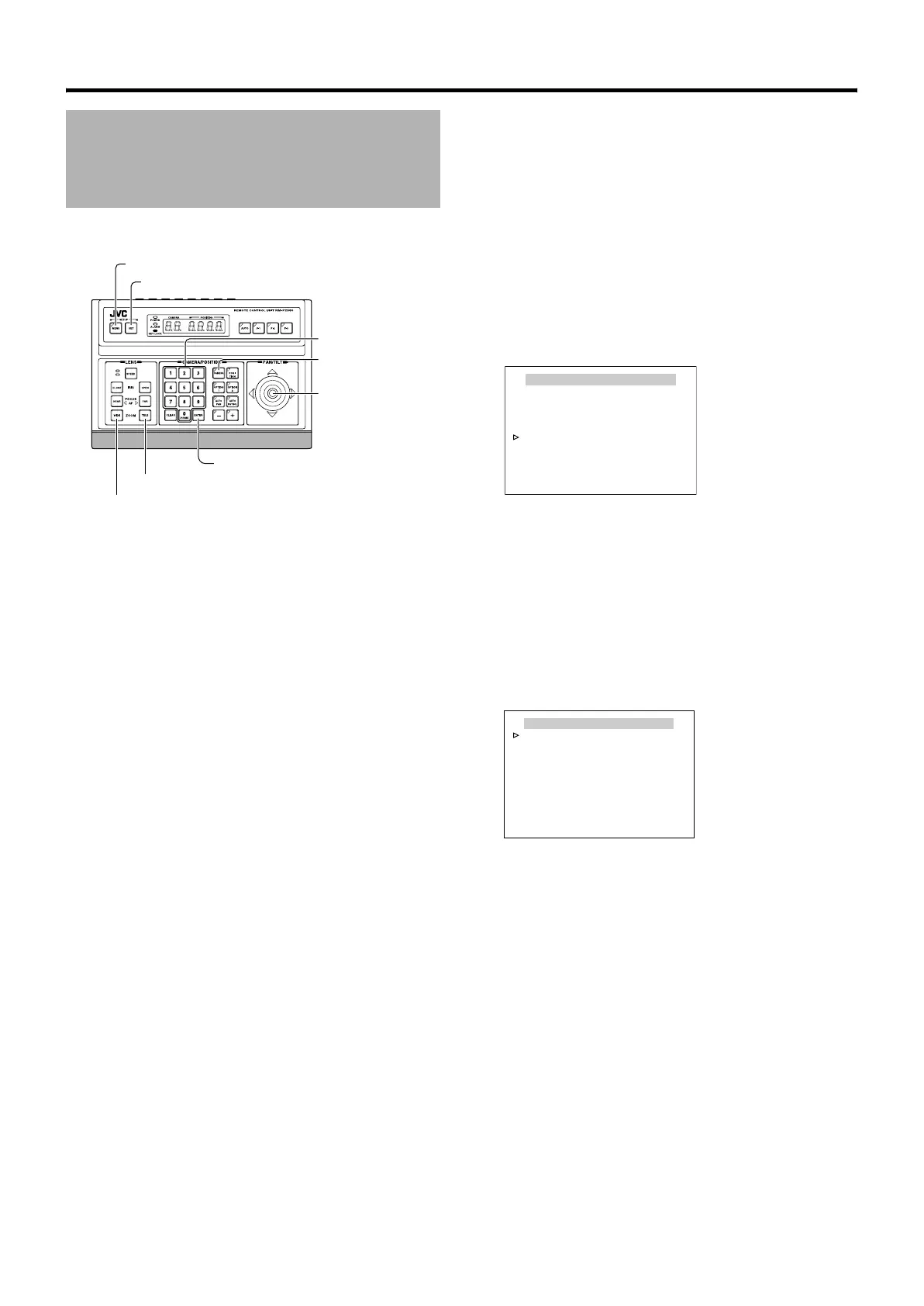

Detailed setting
This item sets the function to automatically track objects with
movement when the camera is at the home position.
[MENU] button
[SET] button
[CAMERA] button
[PAN/TILT] Lever
Numeric keypad
[ENTER] button
[TELE] button
[WIDE] button
䡵 Preparation
1 Select a camera (A RM-P2580 Instruction Manual)
[CAMERA] button B Numeric keypad (camera
number) B [ENTER] button
● Images from the selected camera are output.
2 Display the [MENU] screen (A Page 24)
● The [MENU] screen is displayed.
3 Select the [CAMERA FUNCTION1] screen
● Shift up and down the [PAN/TILT] lever, move the
cursor (Z) to the [CAMERA FUNCTION1] item and
press the [SET] button.
● The [CAMERA FUNCTION1] screen is displayed.
4 Open the [HOME M.DETECT (TRACKING)]
screen
● Move the cursor (Z) to the [HOME M.DETECT] item,
shift the [PAN/TILT] lever to the left and right and select
[TRACKING].
● Press the [SET] button to display the [HOME
M.DETECT (TRACKING)] screen.
HOME M.DETECT
(TRACKING) Setting
CAMERA FUNCTION1
V. PHASE - - -
POS. TITLE LOC. UP-L
PRIVATE MASK..
MANUAL DISPLAY ON
HOME M. DETECT.. TRACKING
D. ZOOM MAX X2
STABILIZER OFF
<
MENU
>
RETURN
<
SET
>
SUB MENU
[CAMERA FUNCTION1] screen
HOME M.DETECT(TRACKING)
<
MENU
>
RETURN
LEVEL NORMAL
RESTART TIME OFF
DEMONSTRATION..
[HOME M.DETECT (TRACKING)] screen
