58

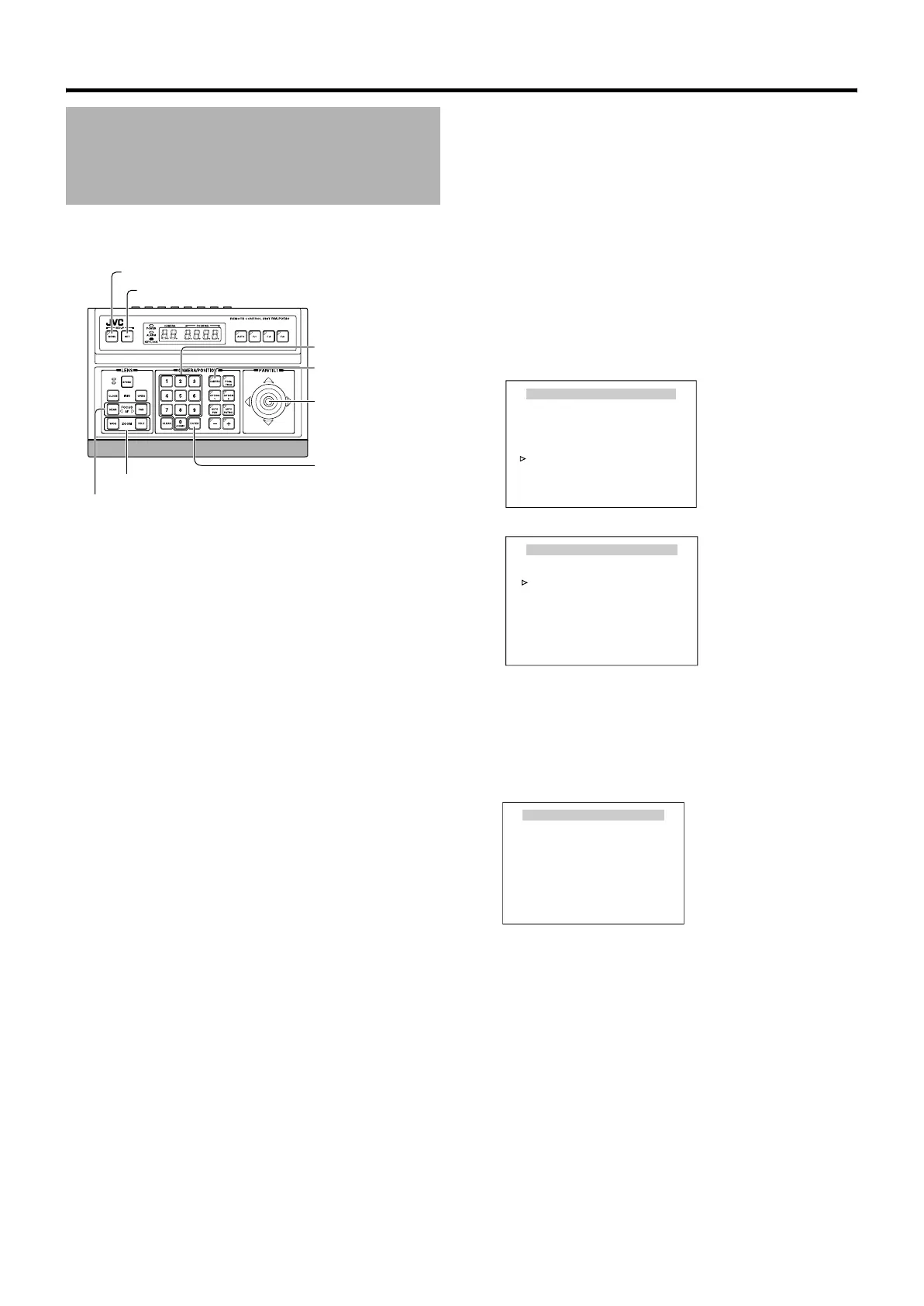

Detailed setting
This item sets the Auto Trace function (approx. 30 seconds)
that reproduces manual camera settings.
[MENU] button
[SET] button
[CAMERA] button
[PAN/TILT] Lever
Numeric keypad
[ENTER] button
[FOCUS (NEAR) (FAR)] button
ZOOM（WIDE）（TELE)] button
䡵 Preparation
1
Select a camera (
A
RM-P2580 Instruction Manual)
● [CAMERA] button B Numeric keypad (camera
number) B [ENTER] button
● Images from the selected camera are output.
2 Display the [MENU] screen (A Page 24)
● The [MENU] screen is displayed.
3 Display the [AUTO PAN/PATROL/TRACE] screen
● Shift up and down the [PAN/TILT] lever, move the
cursor (Z) to the [AUTO PAN/PATROL/TRACE] item
and press the [SET] button.
● The [AUTO PAN/PATROL/TRACE] screen is displayed.
4 Move the cursor (Z) to the [AUTO TRACE..] item
and press the [SET] button
● The Auto Trace Setting screen appears.
Auto Trace Setting
MENU
CAMERA FUNCTION1..
CAMERA FUNCTION2..
CAMERA TITLE/ALARM..
CAMERA ALC..
CAMERA VIDEO..
AUTO PAN/PATROL/TRACE..
POS.FUNCTION SET..
FACTORY SETTINGS..
<
MENU
>
EXIT
<
SET
>
SUB MENU
[MENU] screen
AUTO PAN/PATROL/TRACE
<
MENU
>
RETURN
<
SET
>
SUB MENU
AUTO PAN SET..
AUTO PATROL SET..
AUTO TRACE SET..
A. PAN/TRACE VIDEO..
RM. A. PAN KEY A. PAN
RM. A. PATROL KEY A. PATROL
[AU TO PA N / PAT R O L/ TR AC E ] s c r e en
AUTO TRACE SET
SET START POSITION
<MENU>RETURN <SET> LEARN
[AUTO TRACE SET] screen
TK-C686E_EN.book Page 58 Tuesday, December 4, 2007 4:45 PM
To Next Page
