12

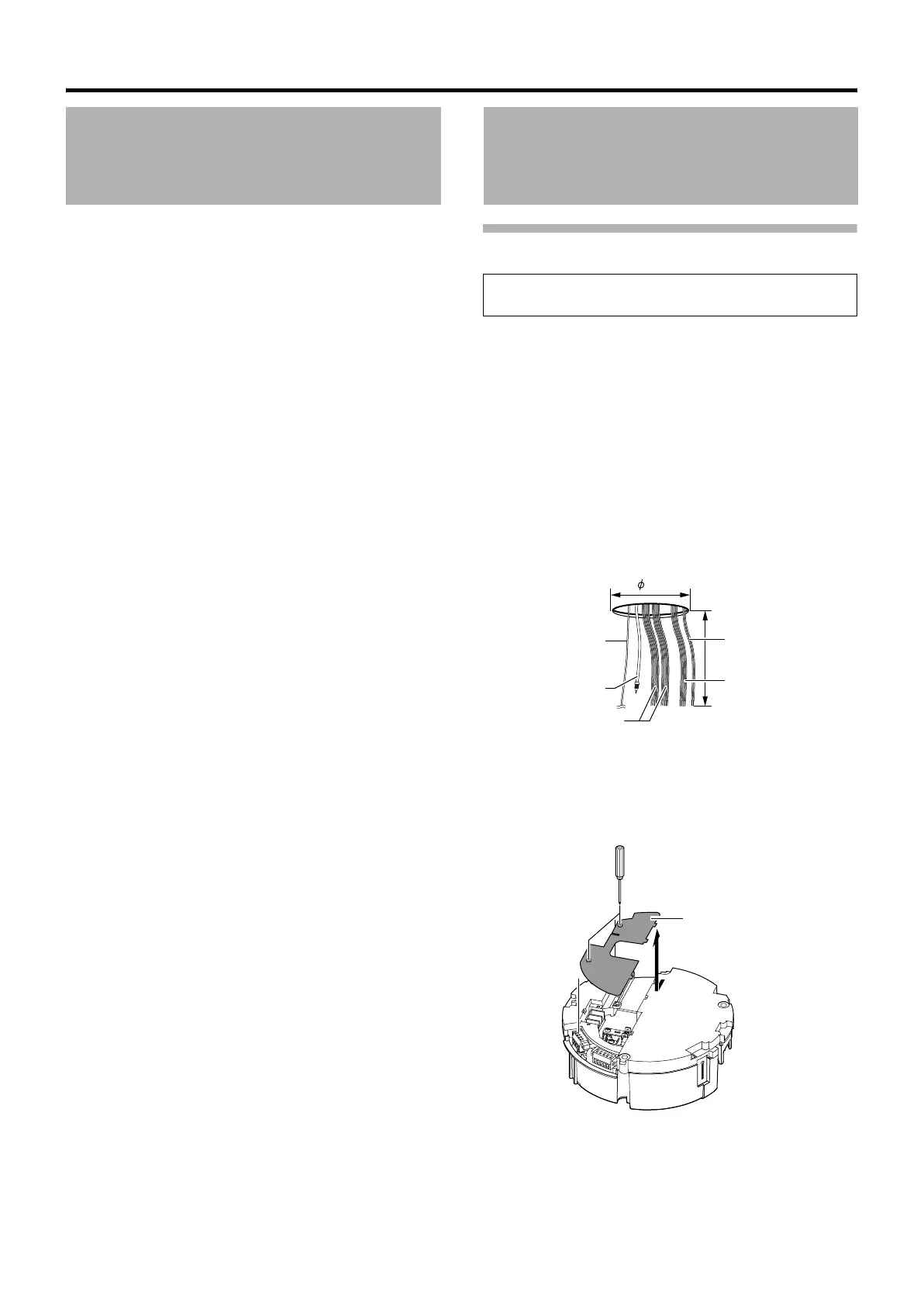

Connection/Installation
Install the camera with the following procedures.
Preparation (A Page 12)
K
Mounting the ceiling clamping bracket (A Page 15)
K
Mounting the camera (A Page 15)
Preparation
1
Make holes on the ceiling
● Use the provided template to make a hole (R80) for the
connection cables to thread behind the ceiling.
● If necessary, also open a screw hole to mount the
ceiling clamping bracket to the ceiling. In this case,
align the AD FRONT markB of the template in the
direction where the camera faces front and open the
screw hole.
2 Pull the cables from the hole in the ceiling
Pull out the fall prevention wire, power cable, coaxial cable,
control signal cable, alarm signal cable and provided alarm
cable that were mounted to the ceiling slab from the wall.
3 Remove the terminal cover
Loosen two screws on the ceiling clamping bracket and
remove the terminal cover.
Camera Installation
Procedures
Mounting the Camera
Be sure to put on protective glasses to protect your eyes
from falling objects when mounting on the ceiling.
1
2
80
Safety wire
Alarm signal cable
Control signal cable
Power cable
Coaxial cable
Terminal cover
TK-C686E_EN.book Page 12 Tuesday, December 4, 2007 4:45 PM
To Next Page
