JVC TM-1010PN - Controls and Features

e-L

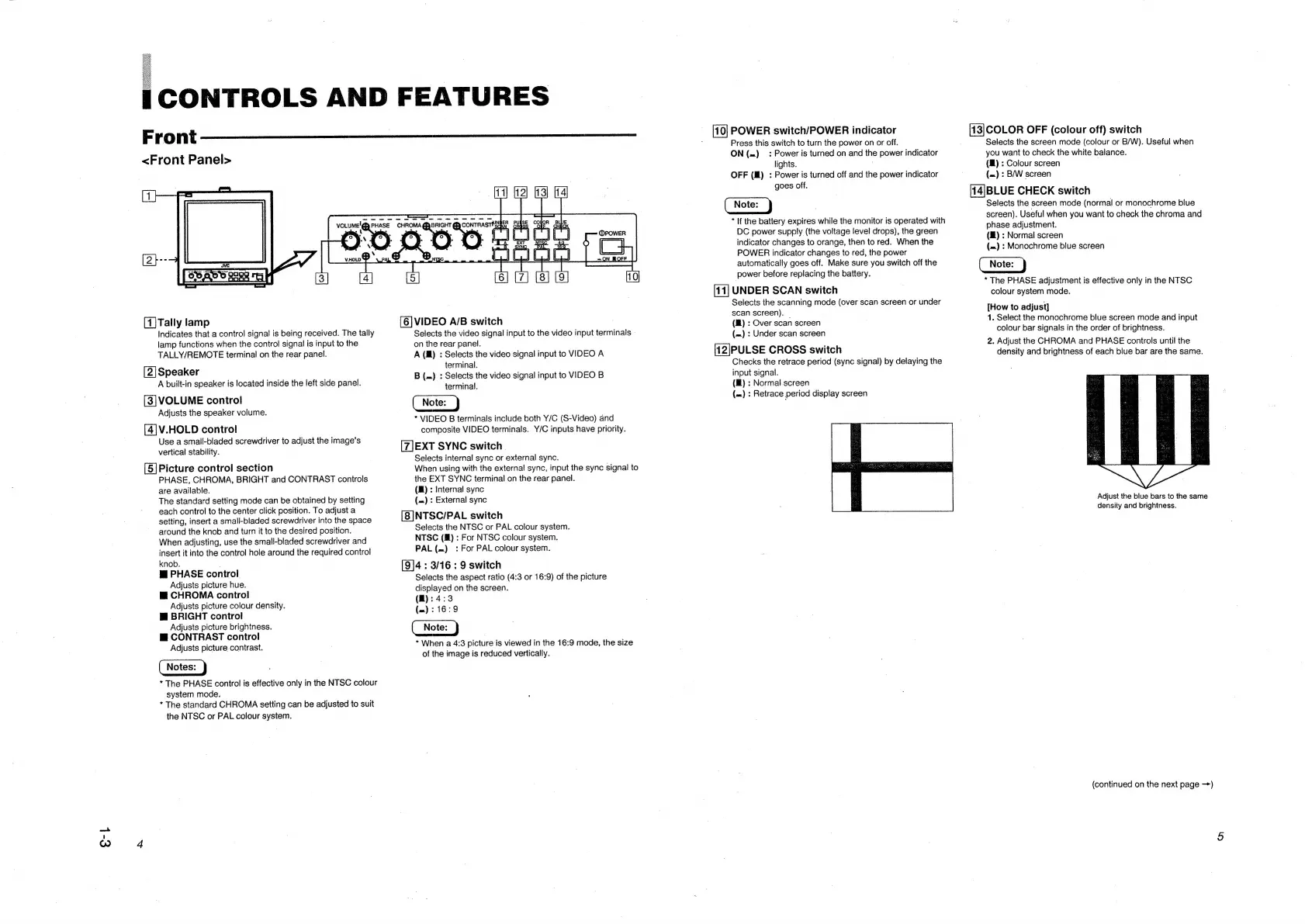

Front
<Front Panel>
(4|Tally lamp
Indicates that a control signal is being received. The tally
lamp functions when the control signal is input to the
TALLY/REMOTE terminal on the rear panel.
[2|Speaker
A built-in speaker is located inside the left side panel.
[3] VOLUME control
Adjusts the speaker volume.
[4]V.HOLD control
Use a small-bladed screwdriver to adjust the image’s
vertical stability.
[5]Picture control section
PHASE, CHROMA, BRIGHT and CONTRAST controls
are available.
The standard setting mode can be obtained by setting
each control to the center click position. To adjust a
setting, insert a small-bladed screwdriver into the space
around the knob and turn it to the desired position.
When adjusting, use the small-bladed screwdriver and
insert it into the control hole around the required control
knob.
@ PHASE control
Adjusts picture hue.
M@ CHROMA control
Adjusts picture colour density.
@ BRIGHT control
Adjusts picture brightness.
mM CONTRAST contro!
Adjusts picture. contrast.
* The PHASE control is effective only in the NTSC colour
system mode.
* The standard CHROMA setting can be adjusted to suit
the NTSC or PAL colour system.
I
CONTROLS
AND
FEATURES
BRIGHT @ CONTRASTESSE
[6] VIDEO A/B switch
Selects the video signal input to the video input terminals
on the rear panel.
A (Mf) : Selects the video signal input to VIDEO A
terminal.
B (=) : Selects the video signal input to VIDEO B
terminal.
* VIDEO B terminals include both Y/C (S-Video) and
composite VIDEO terminals. Y/C inputs have priority.
EXT SYNC switch
Selects internal sync or external sync.
When using with the external sync, input the sync signal to
the EXT SYNC terminal on the rear panel.
(BM) : Internal sync
(=) : External sync
NTSC/PAL switch
Selects the NTSC or PAL colour system.
NTSC (M): For NTSC colour system.
PAL (=) : For PAL colour system.
[9]4 : 3/16 : 9 switch
Selects the aspect ratio (4:3 or 16:9) of the picture
displayed on the screen.
(MB): 4:3
(m) 2 16:9
*When_a 4:3 picture is viewed in the 16:9 mode, the size
of the image is reduced vertically.
POWER switch/POWER indicator
Press this switch to turn the power on or off.
ON (=) : Power is turned on and the power indicator
lights.
OFF (Ml) : Power is turned off and the power indicator
goes off.
* If the battery expires while the monitor is operated with
DC power supply (the voltage level drops), the green
indicator changes to orange, then to red. When the
POWER indicator changes to red, the power
automatically goes off. Make sure you switch off the
power before replacing the battery.
[11] UNDER SCAN switch
Selects the scanning mode (over scan screen or under
scan screen). _
(M) : Over scan screen
(m=) : Under scan screen
[12|IPULSE CROSS switch
Checks the retrace period (sync signal) by delaying the
input signal.
(Ml) : Normal screen
(=) : Retrace period display screen
[13] COLOR OFF (colour off) switch
Selects the screen mode (colour or B/W). Useful when
you want to check the white balance.
(Ml) : Colour screen .
(=) : BAW screen
[14|BLUE CHECK switch
Selects the screen mode (normal or monochrome blue
screen). Useful when you want to check the chroma and
phase adjustment.
(HM) : Normal screen
(m) : Monochrome blue screen
* The PHASE adjustment is effective only in the NTSC
colour system mode.
[How to adjust]
1. Select the monochrome blue screen mode and input
colour bar signals in the order of brightness.
2. Adjust the CHROMA and PHASE controls until the
density and brightness of each blue bar are the same.
Adjust the blue bars to the same
density and brightness.
(continued on the next page —)
