JVC TM-1010PN - Specifications

Z-\

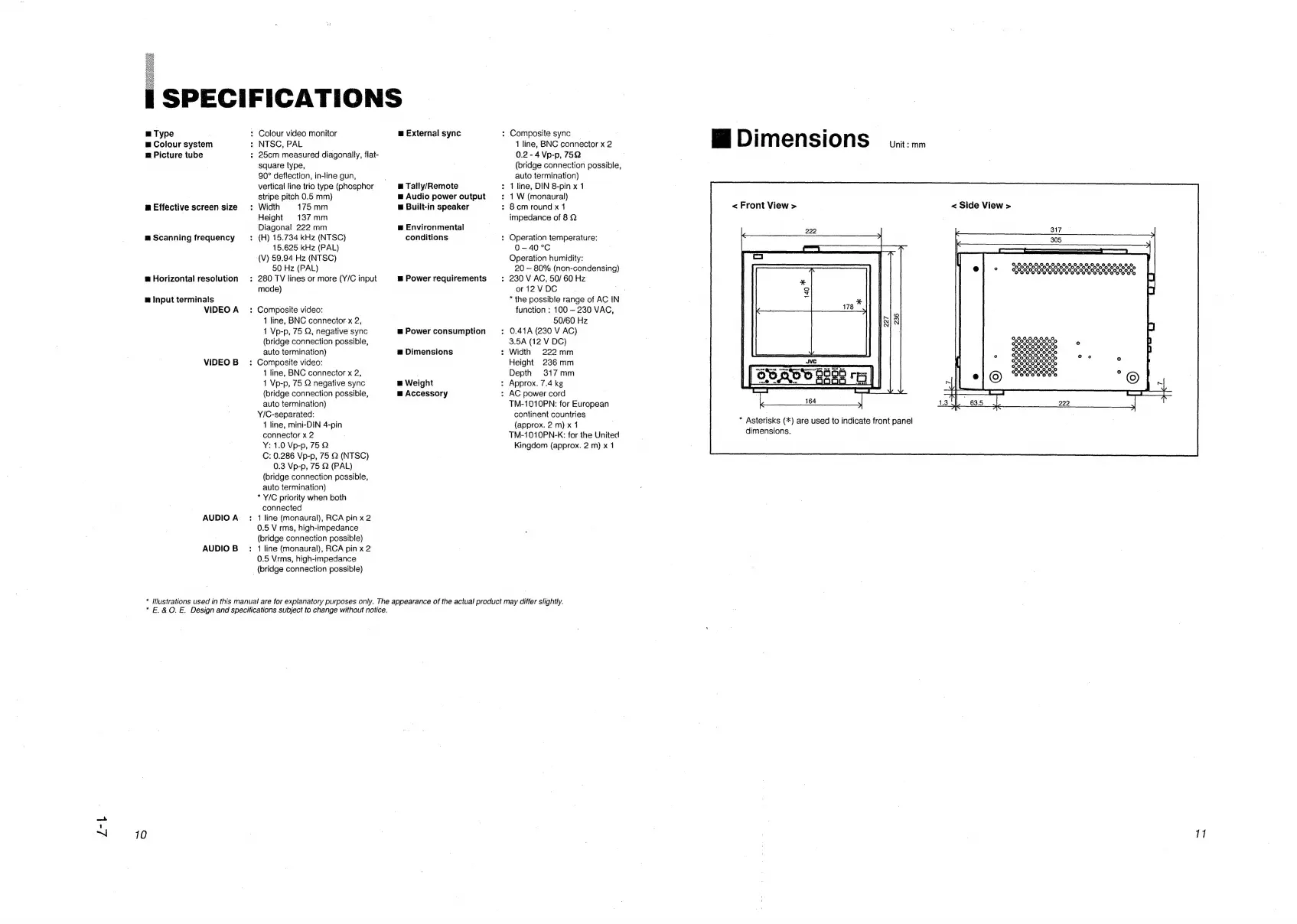

I SPECIFICATIONS
m Type
m= Colour system
mg Picture tube
m Effective screen size
wm Scanning frequency
gw Horizontal resolution
@ Input terminals
VIDEO A
VIDEO B
AUDIO A
AUDIO B
: Colour video monitor
: NTSC, PAL
: 25cm measured diagonally, flat-
square type,
90° deflection, in-line gun,
vertical line trio type (phosphor
stripe pitch 0.5 mm)
: Width 175mm
Height 137mm
Diagonal 222 mm
: (H) 15.734 kHz (NTSC)
15.625 kHz (PAL)
(V) 59.94 Hz (NTSC)
50 Hz (PAL)
: 280 TV lines or more (Y/C input
mode)
: Composite video:
1 line, BNC connector x 2,
1 Vp-p, 75 Q, negative sync
(bridge connection possible,
auto termination)
: Composite video:
1 line, BNC connector x 2,
1 Vp-p, 75 Q negative sync
(bridge connection possible,
auto termination)
Y/C-separated:
1 line, mini-DIN 4-pin
connector x 2
Y: 1.0 Vp-p, 75 Q
C: 0.286 Vp-p, 75 Q (NTSC)
0.3 Vp-p, 75 Q (PAL)
(bridge connection possible,
auto termination)
* Y/C priority when both
connected
: 1 line (monaural), RCA pin x 2
0.5 V rms, high-impedance
(bridge connection possible)
: 1 line (monaural), RCA pin x 2
0.5 Vrms, high-impedance
_(bridge connection possible)
w External sync
m@ Tally/Remote
= Audio power output
m@ Built-in speaker
mw Environmental
conditions
w Power requirements
m Power consumption
m Dimensions
m@ Weight
m Accessory
: Composite sync
1 line, BNC connector x 2
0.2 -4 Vp-p, 75Q
(bridge connection possible,
auto termination)
: 1 line, DIN 8-pin x 1
: 1 W (monaural)
: 8cmround x 1
impedance of 8 Q
: Operation temperature:
0-40°C
Operation humidity:
20 — 80% (non-condensing)
: 230 V AC, 50/ 60 Hz
or 12 V DC
* the possible range of AC IN
function ;: 100 — 230 VAC,
50/60 Hz
: 0.41A (230 V AC)
3.5A (12 V DC)
: Width 222mm
Height 236mm
Depth 317mm
: Approx. 7.4 kg
: AC power cord
TM-1010PN: for European
continent countries
(approx. 2 m) x 1
TM-1010PN-K: for the United
Kingdom (approx. 2 m) x 1
* Illustrations used in this manual are for explanatory purposes only. The appearance of the actual product may differ slightly.
* E.&O.£&. Design and specifications subject to change without notice.
10
DIMENSIONS i uiitsnm
< Front View >
* Asterisks (*) are used to indicate front panel
dimensions.
< Side View >
©,0,.0,0,0,0,.0,0,0,
NKR
00°00 0000000000000 0°00"O'O
17
