JVC TM-910SU - Professional Monitor - Rear Panel Connections: Video and Sync; Rear Panel Connections: Audio and Power

5
OUT
IN
OUTIN
Y/C
AFC
NORMAL
FAST
OUTIN
SET UP
CUT OFF
B
1
R
G
DRIVE
R
G
VIDEO A
OUTIN
EXT SYNC
AUDIO
TALLY/
REMOTE
OUTIN
VIDEO B
AC IN
DC IN
12V
A
B
2
1
2
+
-
22
23
2524
Rear

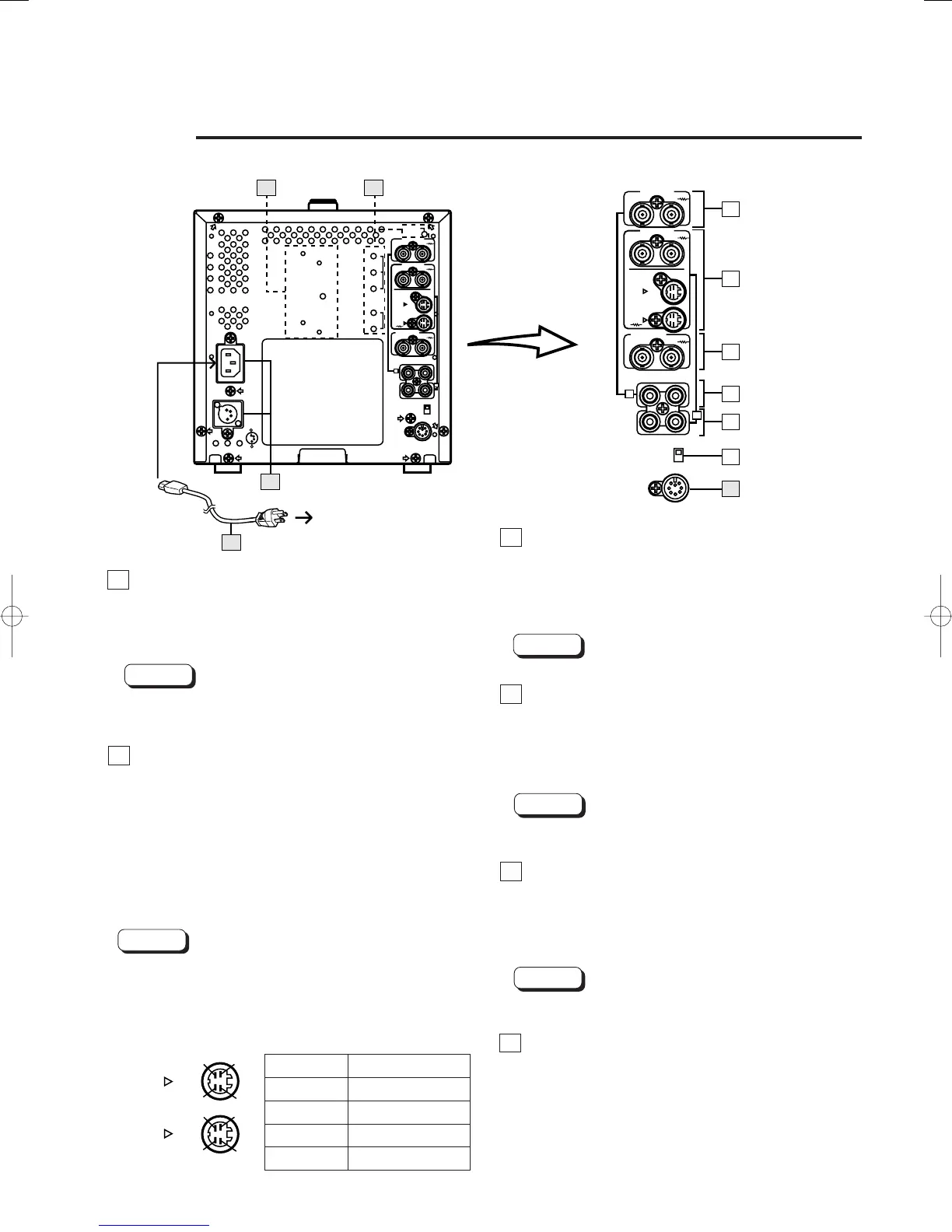

< Rear Panel >
20
21
19
18
17
16
15
OUT
IN
OUTIN
Y/C
AFC
NORMAL
FAST
OUTIN
VIDEO A
OUTIN
EXT SYNC
AUDIO
TALLY/
REMOTE
OUTIN
VIDEO B
A
B
To AC outlet
(120 V AC, 50/60 Hz)
15 VIDEO A terminals
Video signal input (IN) and output (OUT) terminals.
The output terminal is bridge-connected.
IN : Video signal input terminal
OUT : Bridge-connected video signal output terminal
Notes:
* For corresponding audio signals, use the AUDIO A
terminals
*.
* Also refer to the Basic Connection Example on page 7.
16 VIDEO B terminals
Video signal input (IN) and output (OUT) terminals for
both composite and Y/C-separated (S-Video) terminals.
Each output terminal is bridge-connected.
[BNC terminals]
IN : Video signal input terminal
OUT : Bridge-connected video signal output terminal
[Y/C (mini-DIN 4-pin) terminals]
IN : Y/C-separated (S-Video) signal input terminal
OUT : Bridge-connected Y/C signal output terminal
Notes:
* For corresponding audio signals, use the AUDIO B
terminals
(.
* Y/C- terminal has priority.
* Also refer to the Basic Connection Example on page 7.
䡵 Y/C terminal pin layout
Pin No. Signal
1 GND (Y)
2 GND (C)
3Y
4C
3
OUT
IN
Y/C
1
4
2
3
1
4
2
17 EXT SYNC terminals
External sync signal input (IN) and output (OUT)
terminals.
The output terminal is bridge-connected.
IN : Input terminal for the external sync signal
OUT : Bridge-connected output terminal
Note:
* Also refer to the Basic Connection Example on page 7.
18 AUDIO A terminals
Input (IN) and output (OUT) terminals for the audio signal
corresponding to the VIDEO A terminals
%.
The output terminal is bridge-connected.
IN : Audio input terminal
OUT : Bridge-connected output terminal
Note:
* For corresponding video signals, use the VIDEO A
terminals
%.
19 AUDIO B terminals
Input (IN) and output (OUT) terminals for the audio signal
corresponding to the VIDEO B terminals
^.
The output terminal is bridge-connected.
IN : Audio input terminal
OUT : Bridge-connected output terminal
Note:
* For corresponding video signals, use the VIDEO B
terminals
^.
20 AFC switch
Selects the AFC (Automatic Frequency Control) time
constant for the horizontal sync circuit.
Correct the skewed portion of the picture.
NORM position : Normal mode
FAST position : Fast mode (fast: smaller time constant)
(continued on the next page =)
