TM-H140PN

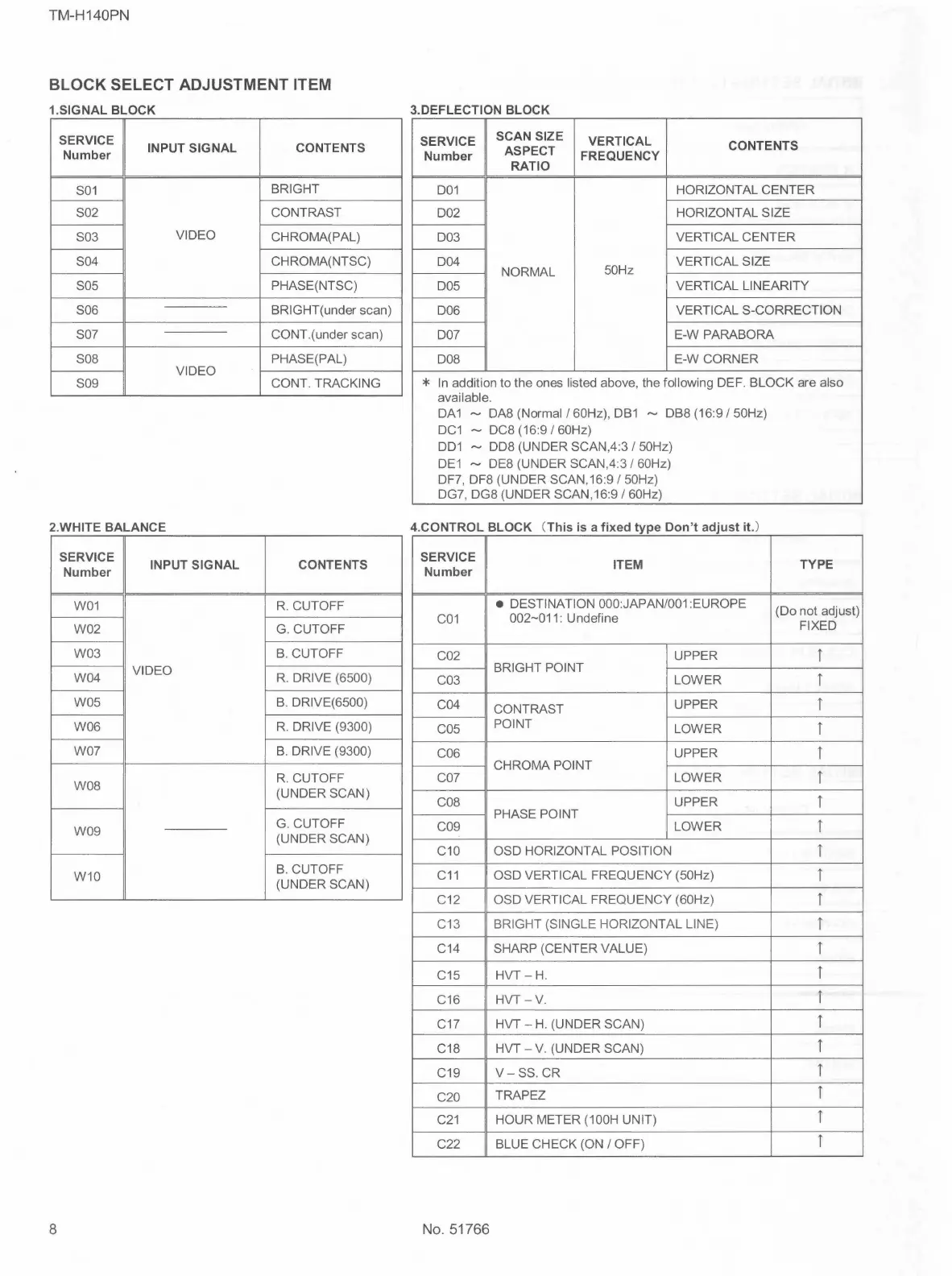

BLOCK SELECT ADJUSTMENT ITEM
1.SIGNAL BLOCK
SERVICE
INPUT SIGNAL CONTENTS
Number
S01
BRIGHT
S02 CONTRAST
S03
VIDEO
CHROMA(PAL)
S04 CHROMA(NTSC)
S05 PHASE(NTSC)
S06 BRIGHT(under scan)
SO? CONT.(under scan)
S08
PHASE(PAL)
VIDEO
S09
CONT. TRACKING
2.WHITE BALANCE
SERVICE
INPUT SIGNAL CONTENTS
Number
W01 R. CUTOFF
W02 G. CUTOFF
W03 B. CUTOFF
W04
VIDEO
R. DRIVE (6500)
W05 B. DRIVE(6500)
W06 R. DRIVE (9300)
WO? B. DRIVE (9300)
W08
R. CUTOFF
(UNDER SCAN)
W09
G.CUTOFF
(UNDER SCAN)
W10
B. CUTOFF
(UNDER SCAN)
8
3.DEFLECTION BLOCK
SERVICE
SCAN SIZE
VERTICAL
ASPECT
CONTENTS
Number
FREQUENCY
RATIO
001
HORIZONTAL CENTER
002
HORIZONTAL SIZE
003
VERTICAL CENTER
004
50Hz
VERTICAL SIZE
NORMAL
005
VERTICAL LINEARITY
006
VERTICAL S-CORRECTION
007
E-W PARABORA
008
E-W CORNER
* In addition to the ones listed above, the following DEF. BLOCK are also
available.
DA1 ~ DA8 (Normal/ 6GHz), DB1 ~ DB8 (16:9 / 50Hz)
DC1 ~ DC8 (16:9 / 60Hz)
001 ~ 008 (UNDER SCAN,4:3 / 50Hz)
DE1 ~ DE8 (UNDER SCAN,4:3 / 60Hz)
OF?, DF8 (UNDER SCAN, 16:9 / 50Hz)
DG7, DG8 (UNDER SCAN,16:9 / 60Hz)
4.CONTROL BLOCK (This is a fixed type Don't adjust it.)
SERVICE
ITEM
TYPE
Number
• DESTINATION 000:JAPAN/001 :EUROPE
(Do not adjust)
C01
002~011: Undefine
FIXED
CO2
UPPER
l
BRIGHT POINT
C03
LOWER
l
C04
CONTRAST
UPPER
l
cos
POINT
LOWER
l
C06
UPPER
l
CHROMA POINT
CO?
LOWER
l
COB
UPPER
l
PHASE POINT
C09
LOWER
l
C10
OSD HORIZONTAL POSITION
l
C11
OSD VERTICAL FREQUENCY (5GHz)
l
C12
OSD VERTICAL FREQUENCY (6GHz)
l
C13
BRIGHT (SINGLE HORIZONTAL LINE)
l
C14
SHARP (CENTER VALUE)
l
C15
HVT-H.
l
C16
HVT-V.
l
C17
HVT-H. (UNDER SCAN)
l
C18
HVT - V. (UNDER SCAN)
l
C19 V-SS. CR
l
C20
TRAPEZ
l
C21
HOUR METER (100H UNIT)
l
C22
BLUE CHECK (ON/ OFF)
l
No. 51766
