TM-H140PN

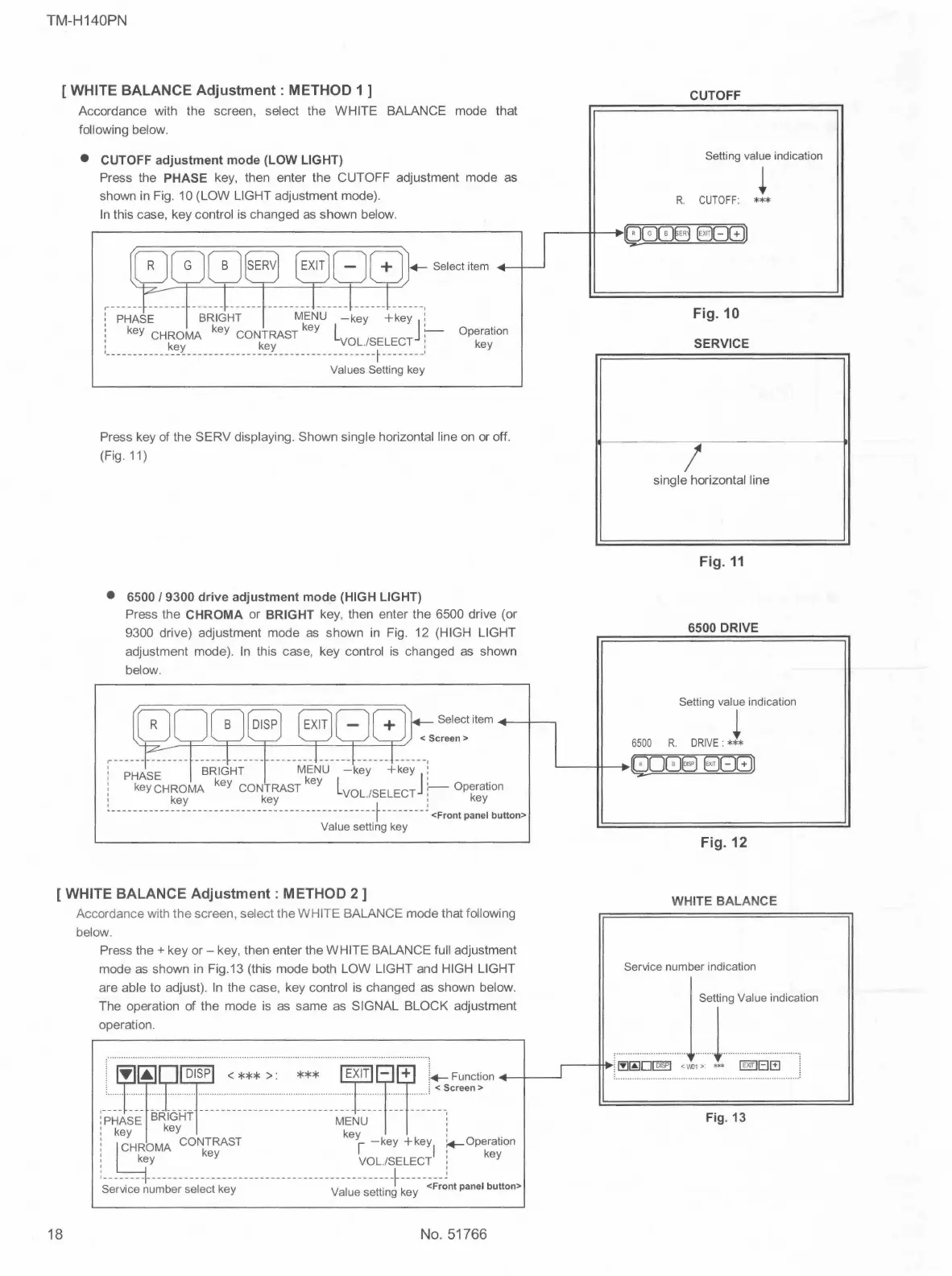

[ WHITE BALANCE Adjustment: METHOD 1]
Accordance with the screen, select the WHITE BALANCE mode that
following below.
• CUTOFF adjustment mode (LOW LIGHT)
Press the PHASE key, then enter the CUTOFF adjustment mode as
shown in Fig. 10 (LOW LIGHT adjustment mode).
In this case, key control is changed as shown below.
+- Select item
Operation
key
Press key of the SERV displaying. Shown single horizontal line on or off.
(Fig. 11)
• 6500 / 9300 drive adjustment mode (HIGH LIGHT)
Press the CHROMA or BRIGHT key, then enter the 6500 drive (or
9300 drive) adjustment mode as shown in Fig. 12 (HIGH LIGHT
adjustment mode). In this case, key control is changed as shown
below.
Select item -------'--
[ WHITE BALANCE Adjustment: METHOD 2]
18
Accordance with the screen, select the WH ITE BALANCE mode that following
below.
Press the+ key or - key, then enter the WHITE BALANCE full adjustment
mode as shown in Fig.13 (this mode both LOW LIGHT and HIGH LIGHT
are able to adjust). In the case, key control is changed as shown below.
The operation of the mode is as same as SIGNAL BLOCK adjustment
operation.
_' -~f~-?+~l~P ___ <*** > -- •-~* __ yg-1+ i~;,~~~~on
~
: PHASE BRIGHT MENU :
: key key key : .
: I CH~OMA CON,:RAST I -key +keyl !4-0pernhon
: key y VOL./SELECT : key
: - - -- ---- - - - -- - - -- - -- -- -- - --- - - - -- - - - - --- - - -- - - - --- - - - -~ --- - -- - - :
Service number select key Value setting key <Front panel button>
No. 51766
6500
CUTOFF
Setting value indication
i
R. CUTOFF: ***
Fig. 10
SERVICE
I
single horizontal line
Fig. 11
6500 DRIVE
Setting value indication
R. DRIVE : *¼*
Fig.12
WHITE BALANCE
Service number indication
......................... jS~rValue ,ndication
r~--1-1•~:l!l~
□
~
<mi> - IT8!TIEH!l
Fig. 13
