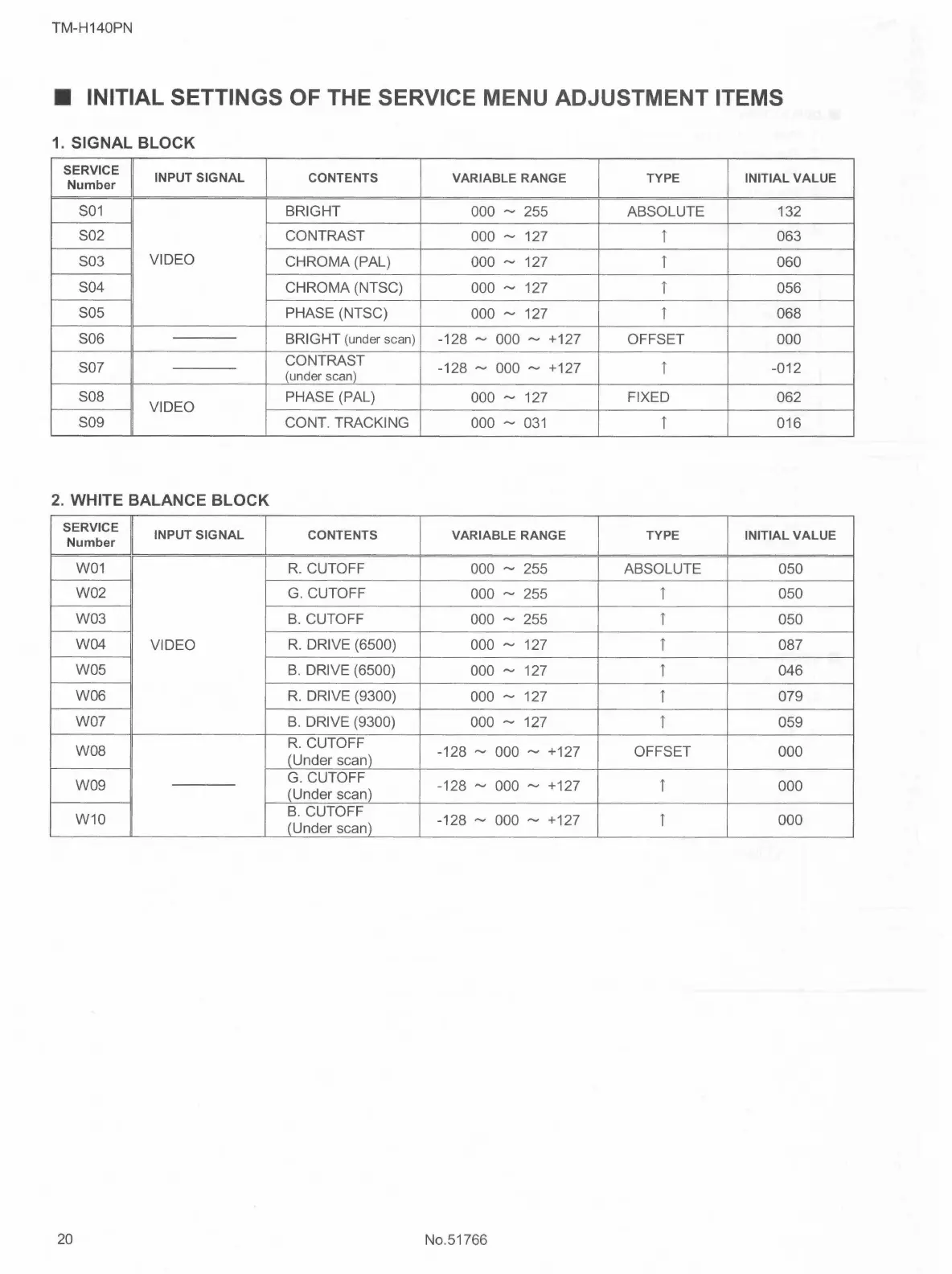

■ INITIAL SETTINGS OF THE SERVICE MENU ADJUSTMENT ITEMS
1. SIGNAL BLOCK
SERVICE
INPUT SIGNAL
CONTENTS VARIABLE RANGE TYPE INITIAL VALUE
Number
S01
BRIGHT
000 - 255
ABSOLUTE 132
S02
CONTRAST
000 - 127
i
063
S03
VIDEO
CHROMA (PAL)
000 - 127
i
060
S04
CHROMA (NTSC)
000 - 127 i
056
S05 PHASE (NTSC)
000 - 127 i
068
S06 BRIGHT (under scan)
-128 - 000 - +127
OFFSET 000
SO?
CONTRAST
-128 - 000 - +127
i
-012
(under scan)
S08
VIDEO
PHASE (PAL)
000 - 127
FIXED 062
S09
CONT. TRACKING
000 - 031
i
016
2. WHITE BALANCE BLOCK
SERVICE
INPUT SIGNAL
CONTENTS
VARIABLE RANGE TYPE INITIAL VALUE
Number
W01
R. CUTOFF
000 - 255
ABSOLUTE
050
W02
G.CUTOFF
000 - 255
i
050
W03
B. CUTOFF
000 - 255
i
050
W04
VIDEO
R. DRIVE (6500)
000 - 127
i
087
W05
B. DRIVE (6500)
000 - 127
i
046
W06
R. DRIVE (9300)
000 - 127
i
079
WO?
B. DRIVE (9300)
000 - 127
i
059
W08
R. CUTOFF
-128 - 000 - +127
OFFSET
000
(Under scan)
W09
G.CUTOFF
-128 - 000 - +127
i
000
(Under scan)
W10
B.CUTOFF
-128 - 000 - +127
i
000
(Under scan)
20
No.51766
