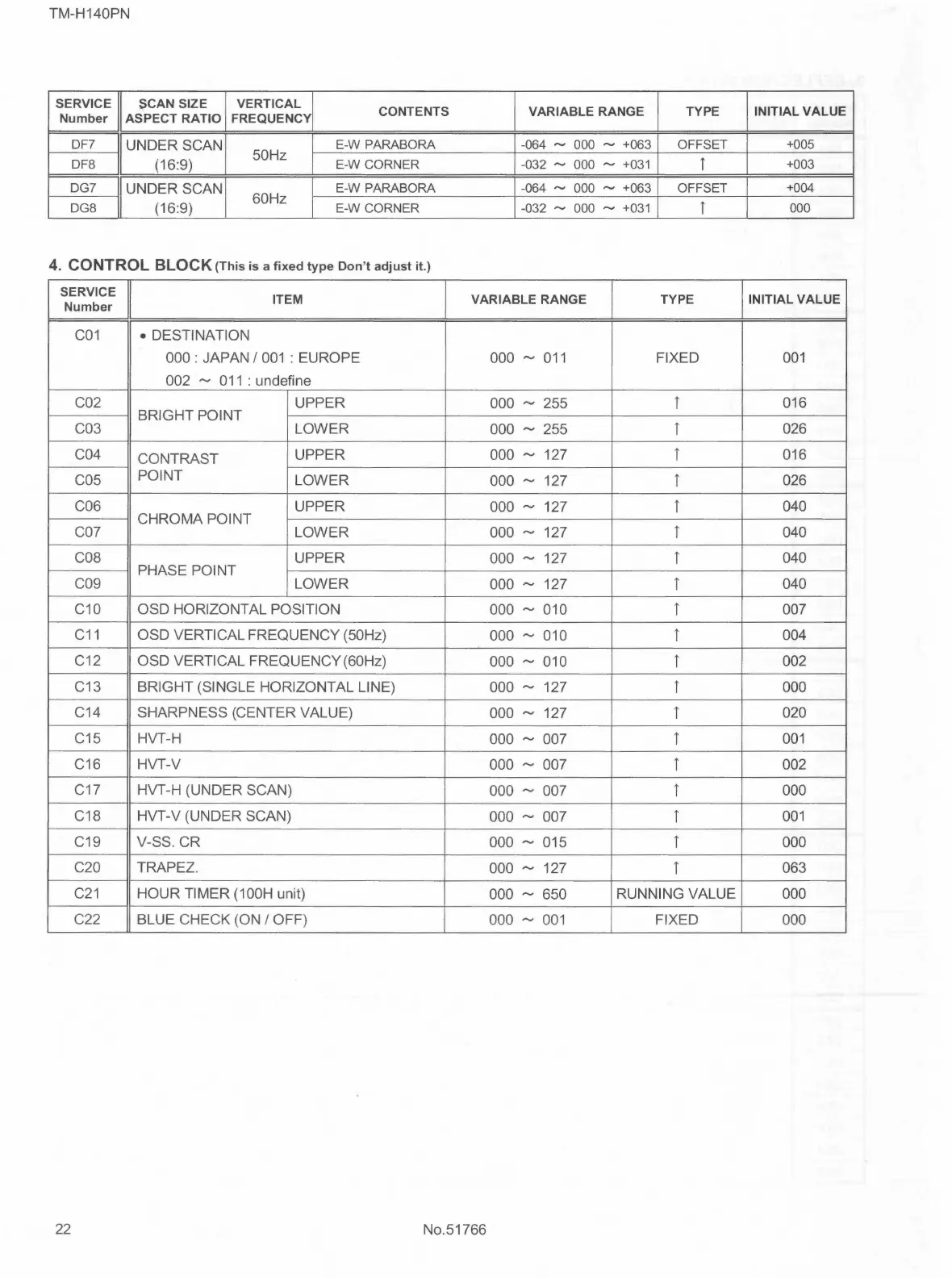

SCAN SIZE VERTICAL
CONTENTS VARIABLE RANGE TYPE INITIAL VALUE
Number ASPECT RATIO FREQUENCY
OF?
UNDER SCAN
E-W PARABORA
-064 - 000 - +063
OFFSET
+005
DF8
(16:9)
50Hz
E-W CORNER
-032 - 000 - +031
i
+003
DG7
UNDER SCAN
E-W PARABORA
-064 - 000 - +063
OFFSET
+004
DG8
(16:9)
60Hz
E-W CORNER
-032 - 000 - +031
i
000
4. CONTROL BLOCK (This is a fixed type Don't adjust it.)
SERVICE
ITEM VARIABLE RANGE TYPE
INITIAL VALUE
Number
C01
• DESTINATION
000:JAPAN/001 :EUROPE
000 - 011
FIXED
001
002 - 011 : undefine
CO2 UPPER
000 - 255
i
016
BRIGHT POINT
C03 LOWER
000 - 255
i
026
C04
CONTRAST
UPPER
000 - 127
i
016
C05
POINT
LOWER
000 - 127
i
026
C06 UPPER
000 - 127
i
040
CHROMA POINT
CO? LOWER
000 -
127
i
040
COB UPPER
000 - 127
i
040
PHASE POINT
C09 LOWER
000 - 127
i
040
C10 OSD HORIZONTAL POSITION
000 - 010 i
007
C11 OSD VERTICAL FREQUENCY (50Hz)
000 - 010 i
004
C12 OSD VERTICAL FREQUENCY (60Hz)
000 - 010
i
002
C13 BRIGHT (SINGLE HORIZONTAL LINE)
000 - 127
i
000
C14 SHARPNESS (CENTER VALUE)
000 - 127
i
020
C15 HVT-H
000 - 007
i
001
C16 HVT-V
000 - 007
i
002
C17 HVT-H (UNDER SCAN)
000 - 007
i
000
C18 HVT-V (UNDER SCAN)
000 - 007
i
001
C19 V-SS . CR
000 - 015
i
000
C20 TRAPEZ.
000 - 127
i
063
C21 HOUR TIMER (100H unit)
000 - 650
RUNNING VALUE 000
C22 BLUE CHECK (ON / OFF)
000 - 001
FIXED 000
