3.1.3 Removing the CD mechanism assembly
(See Fig.9, 10)
• Prior to performing the following procedure, remove the front
panel assembly and the main board.
(1) Release the four bands setting the wire.
(2) Disconnect the wire from connector CN607
on the CD
mechanism board respectively.
(3) Remove the three screws H attaching the CD mechanism
assembly.
(4) Release the joint d to remove the CD mechanism assem-
bly from the front panel assembly.

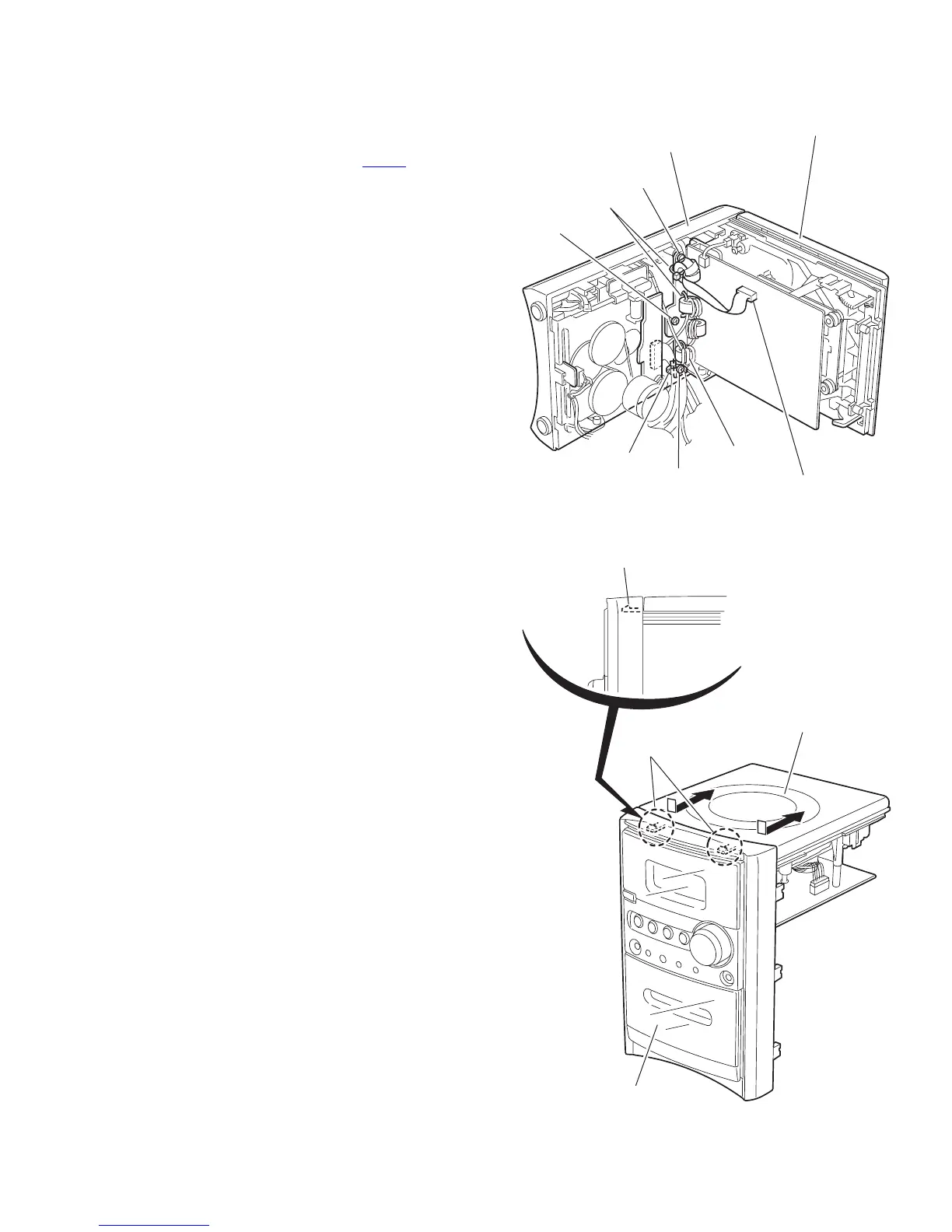

Fig.9
Fig.10
CD mechanism assembly
CD mechanism board
CN607
Front panel assembly
Band
Band
Band
H
H
H
CD mechanism assembly
Front panel assembly
Joint d
Joint d
