1-12 (No.MB330)
3.1.4 Removing the CD mechanism assembly
(See Fig.11 ~ 13)
• Prior to performing the following procedure, remove the front
panel assembly, the main board and the CD mechanism as-
sembly.
CAUTION:
Before disconnecting the card wire from connector CN608
on
the CD mechanism board and from CD pickup board, solder
the short-circuit point on the CD pickup board. If you do not fol-
low this instruction, the pickup may be damaged.
(1) Disconnect the wire from connector CN602
and CN609 on
the CD mechanism board.
(2) Remove the four screws J attaching the CD mechanism
board.
(3) Move the CD mechanism board as shown in the figure 12
and solder the short-circuit point on the CD pickup board.
(4) Disconnect the card wire from connector CN608
on the CD
mechanism board.
CAUTION:
Make sure to unsolder the short-circuit point after reconnecting
the card wire to the CD pickup board and to connector CN608
on the CD mechanism board.

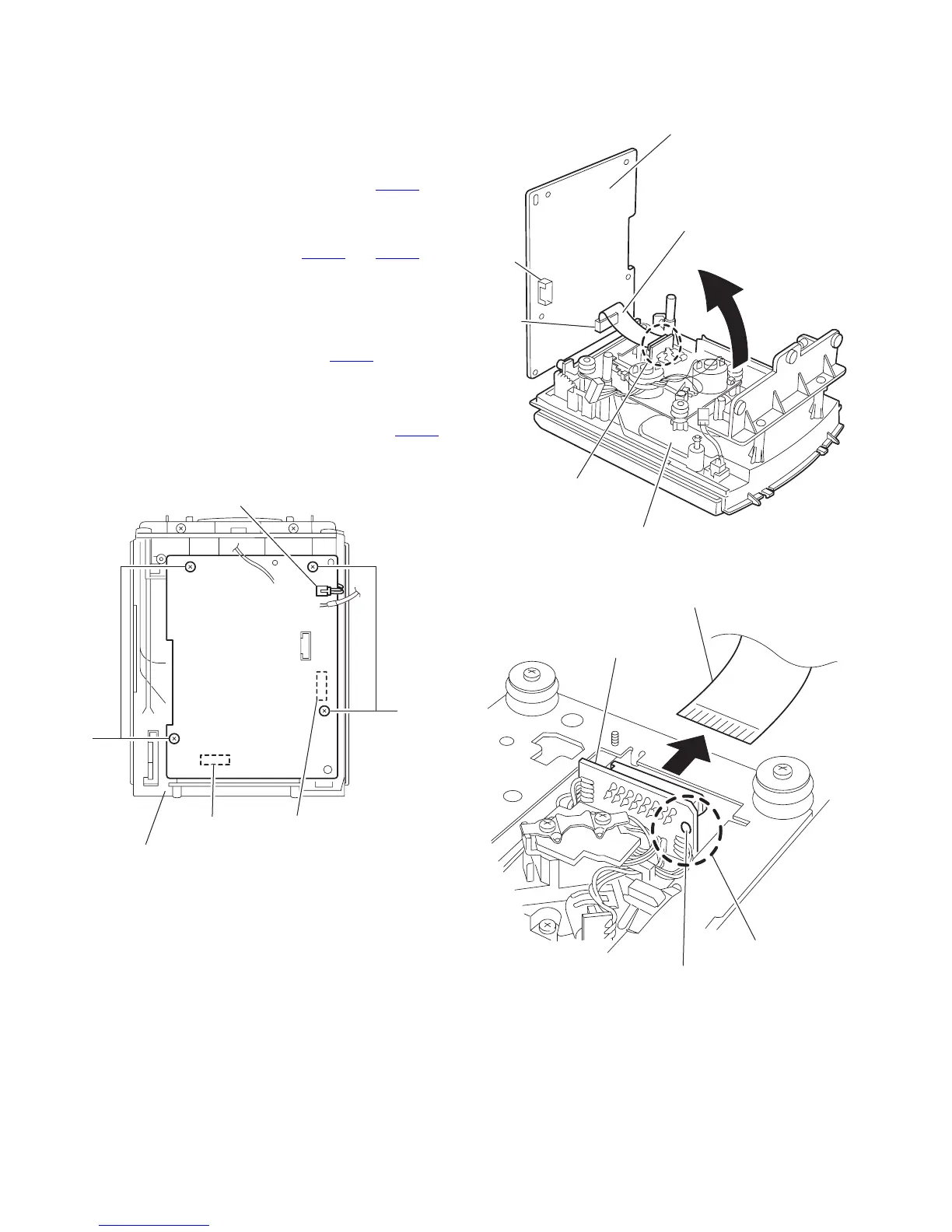

Fig.11
Fig.12
Fig.13
CD mechanism assembly
CD mechanism board
CN609
CN602
CN608
J
J
CD mechanism assembly
CD mechanism board
Card wire
CN608
CN602
Short-circuit point
Unsolder
Short-circuit point
CD pickupz board
Card wire
To Next Page
