3.1.3 Removing the top cover assembly
(See Figs.9 to 11)
• Prior to performing the following procedures, remove the side
panels L/R and front panel assembly.
(1) From the back side of the main body, remove the screw D
attaching the top cover assembly to the rear panel. (See
Fig.9.)
(2) From the right side of the main body, disconnect the card
wires from the connectors (CN701
, CN702) on the main
board. (See Fig.10.)
(3) From the left side of the main body, disconnect the card
wire from connector CN601
on the microphone amplifier
board. (See Fig.11.)
Reference:
When reassembling, pass the card wire through the sec-
tion e of the microphone amplifier board before connect-
ing the card wire to the connector CN601
. (See Fig.11.)
(4) Take out the top cover assembly from the main body.

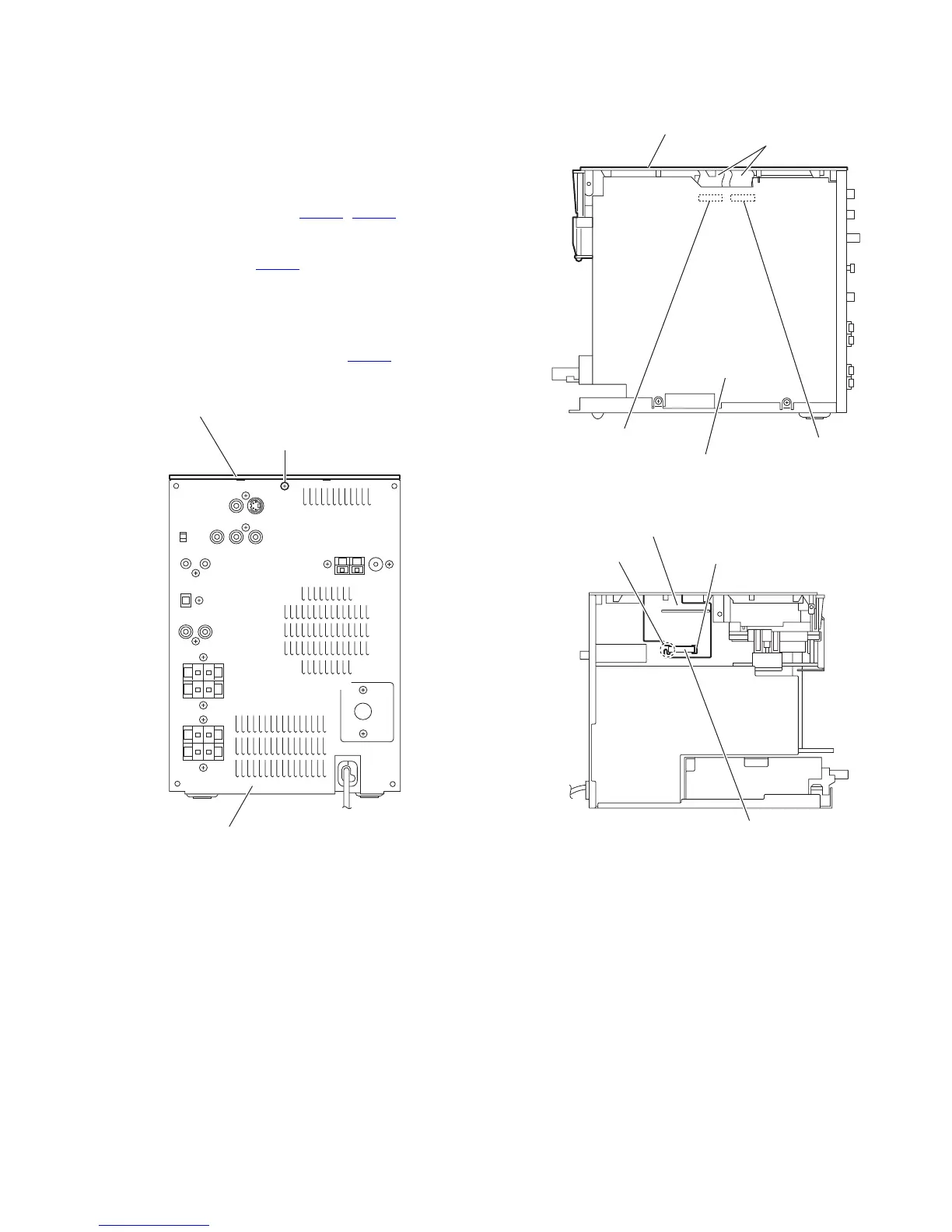

Fig.9
Fig.10
Fig.11
Top cover assembly
D
Rear panel
Top cover assembly
Card wires
CN702
CN701
Main board
Microphone amplifier board
CN601
e
Card wire
