JVC XL-R5000BK Service Manual

1-10
XL-R5000BK
Remove the screw Q attaching the microphone &
headphone amplifier board.
Release the bracket tabs c from the bottom of the
front panel.
Remove downwards the snap plate attaching the
bracket to the microphone & headphone amplifier
board as shown in the figure.
1.
2.
3.

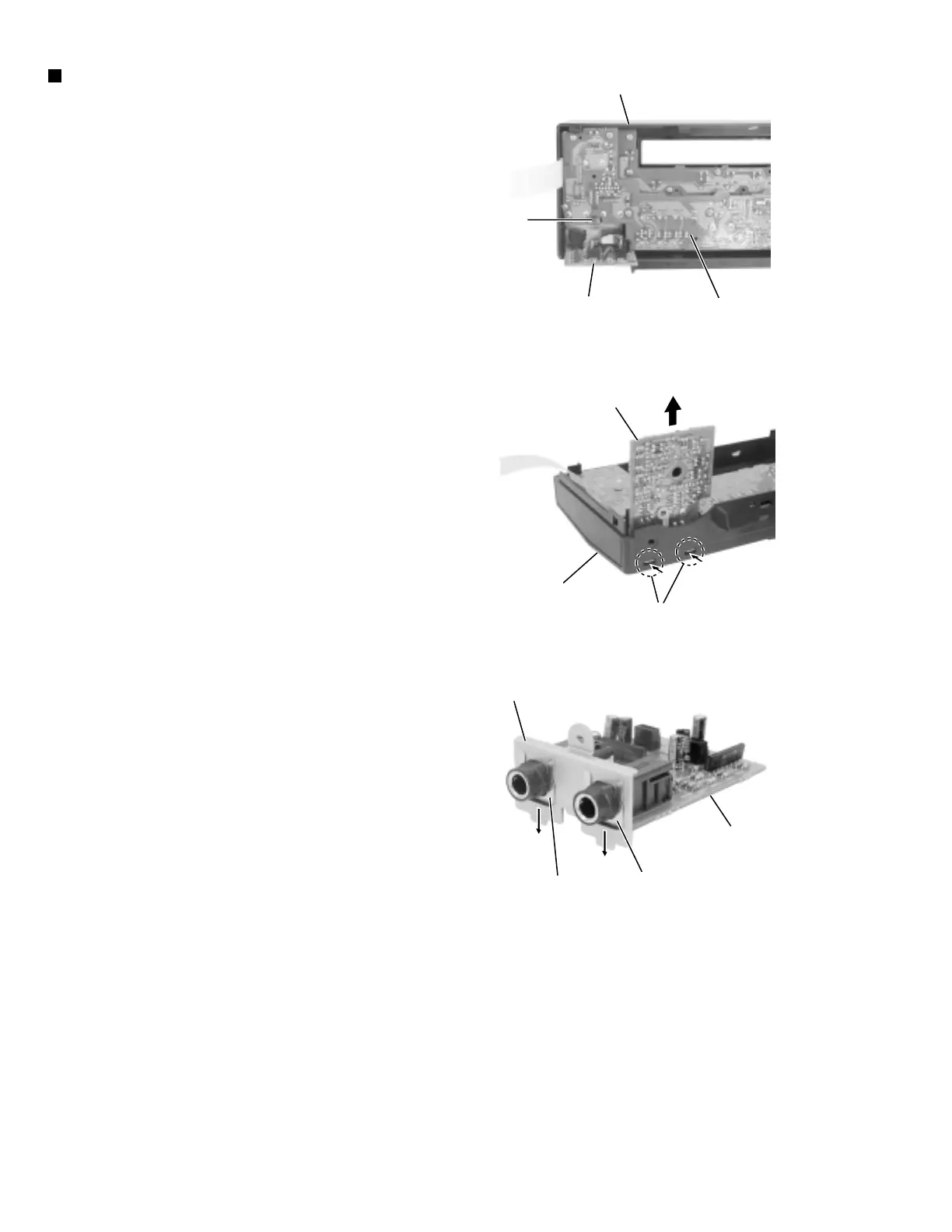

Removing the microphone & headphone
amplifier board (See Fig.22 to 24)
Fig.22
Fig.23
Fig.24
Front panel assembly
Front panel assembly
Display board
Micriphone & headphone
amplifier board
Micriphone & headphone
amplifier board
Tabs c
Q
Micriphone & headphone
amplifier board
Snap plate
Snap plate
Bracket
