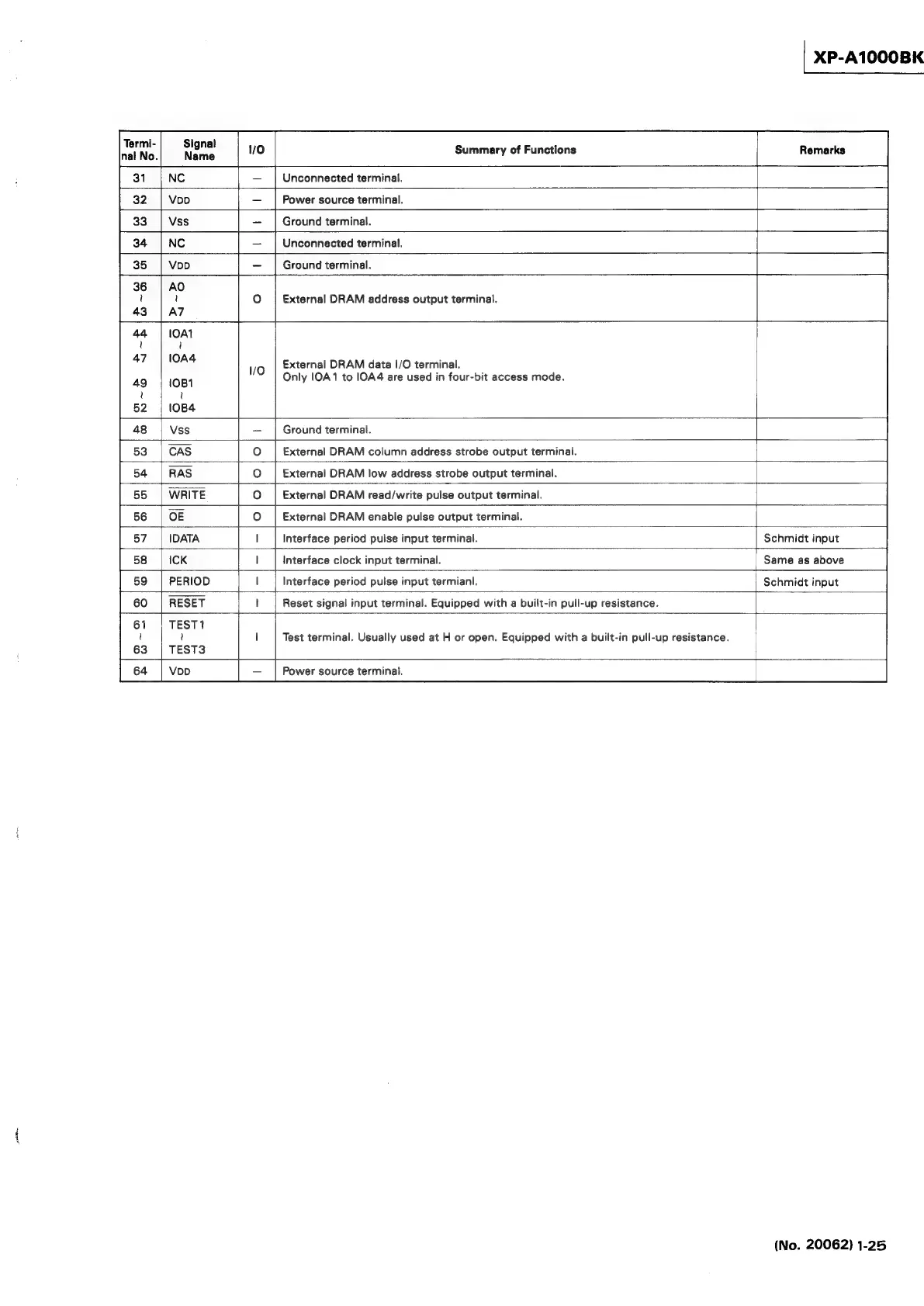

Summary of Functions
XP-A1000BK
Remarks
Unconnected terminal.
Power source terminal.
Ground terminal.
Unconnected terminal.
Ground terminal.
External DRAM address output terminal.
External DRAM data I/O terminal.
Only IOA1 to IOA4 are used in four-bit access mode.
Ground terminal.
External DRAM column address strobe output terminal.
External DRAM low address strobe output terminal.
External DRAM read/write pulse output terminal.
External DRAM enable pulse output terminal.
PERIOD
Interface period pulse input terminal.
Schmidt input
Interface clock input terminal.
Interface period pulse input termianl.
RESET Reset signal input terminal. Equipped with a built-in pull-up resistance.
Test terminal. Usually used at H or open. Equipped with a built-in pull-up resistance.
Power source terminal.
Same as above
Schmidt input
