2.3.5 Removing the spindle motor assembly
(See Fig.2-27 to 2-29)
(1) Remove the three screws L attaching the spindle motor
on the bottom of the mechanism base.
ATTENTION:
When reattaching, pass the card wire extending from
the spindle motor board through the notch of the spin-
dle base.
(2) Remove the three screws M attaching the spindle base.

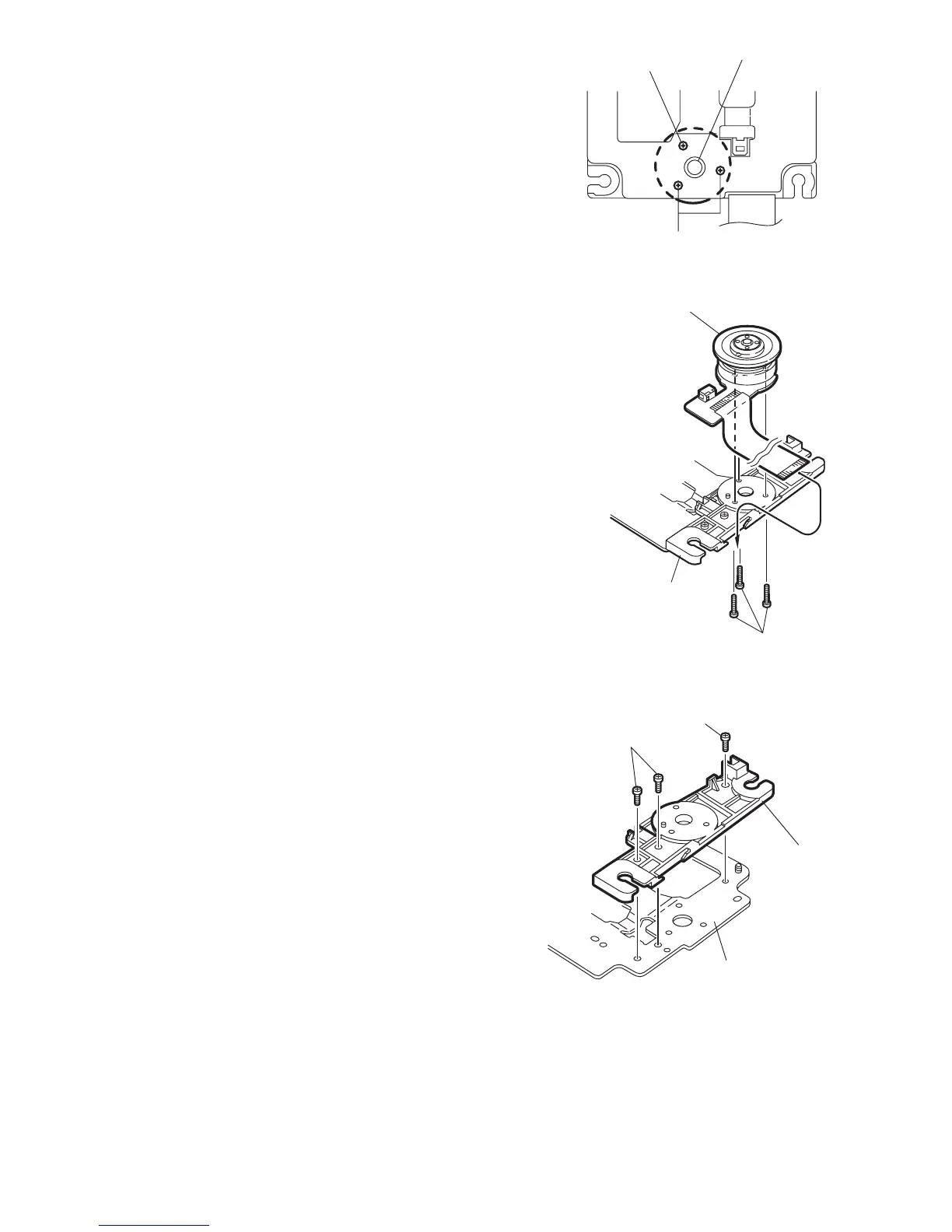

Fig.2-27
Fig.2-28
Fig.2-29
L
L
Spindle motor
Spindle motor assembly
Spindle base
L
M
M
Spindle bas
e
Mechanism base
