2.2 Loading assembly section
2.2.1 Removing the clamper assembly (See Fig.2-9)
(1) Remove the four screws A attaching the clamper assem-
bly.
(2) Move the clamper in the direction of the arrow to release
the two joints a on both sides.
ATTENTION:
When reattaching, fit the clamper to the two joints a.

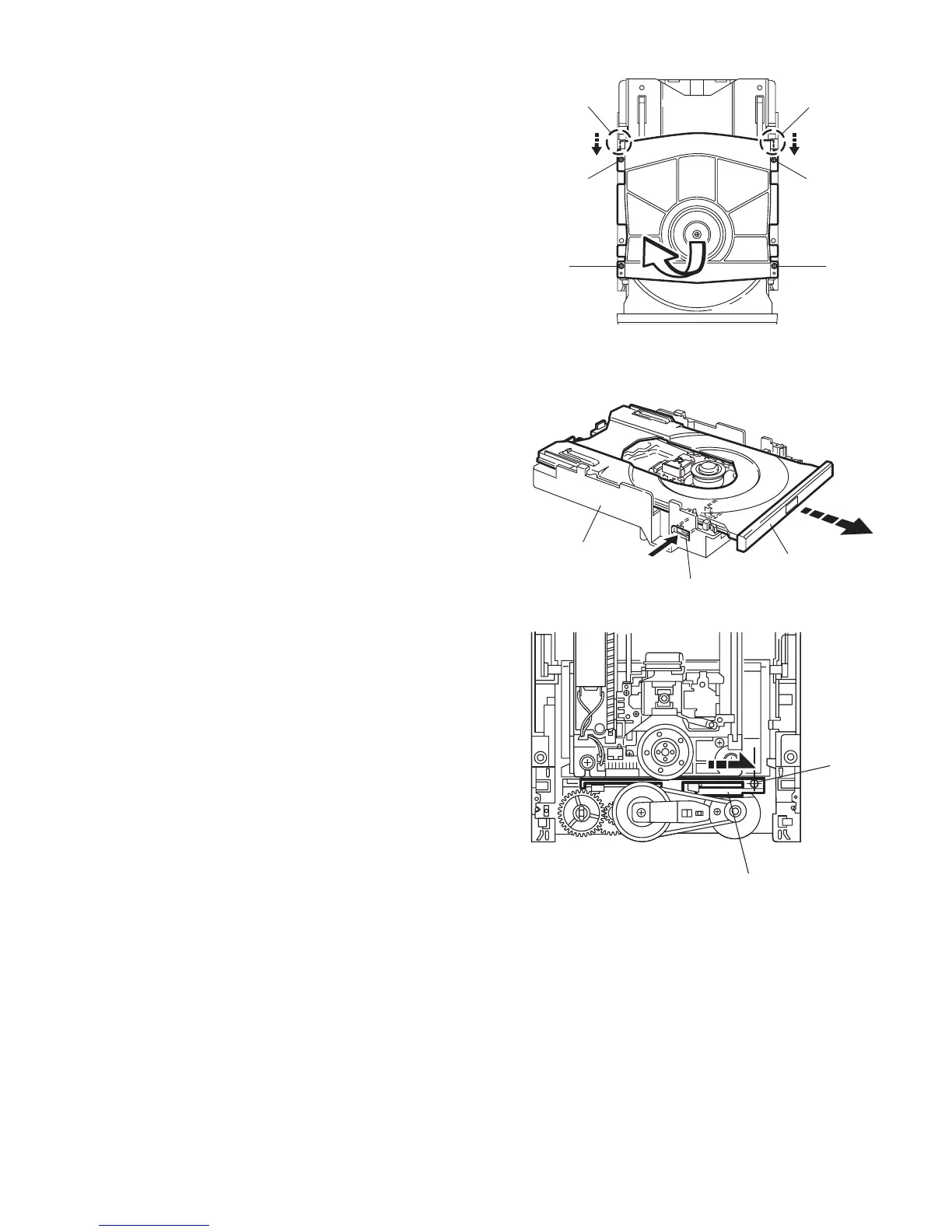

Fig.2-9
2.2.2 Removing the tray (See Fig2-10. and 2-11)
• Prior to performing the following procedure, remove the
clamper assembly.
(1) Push b of the slide cam into the slot on the left side of the
loading base until it stops.
(2) Draw out the tray toward the front.
ATTENTION:
Before reattaching the tray, slide the part c of the slide
cam to the right as shown in Fig.2-11.
Fig.2-10
Fig.2-11
Joint a
Joint a
AA
A
A
Push
b
Tray
Clamper base
Part c
Slide cam
