JVC XV-S332SL Service Manual

XV-S300BK/XV-S332SL/XV-S402SL/XV-S403SG
18
3.3 Flap adjustment of the pick-up guide shaft
3.3.1 Tool list for adjustment
• Hex wrench for adjustment
Off-the-shelf (1.3mm)
• Test disc
VT-501 or VT-502

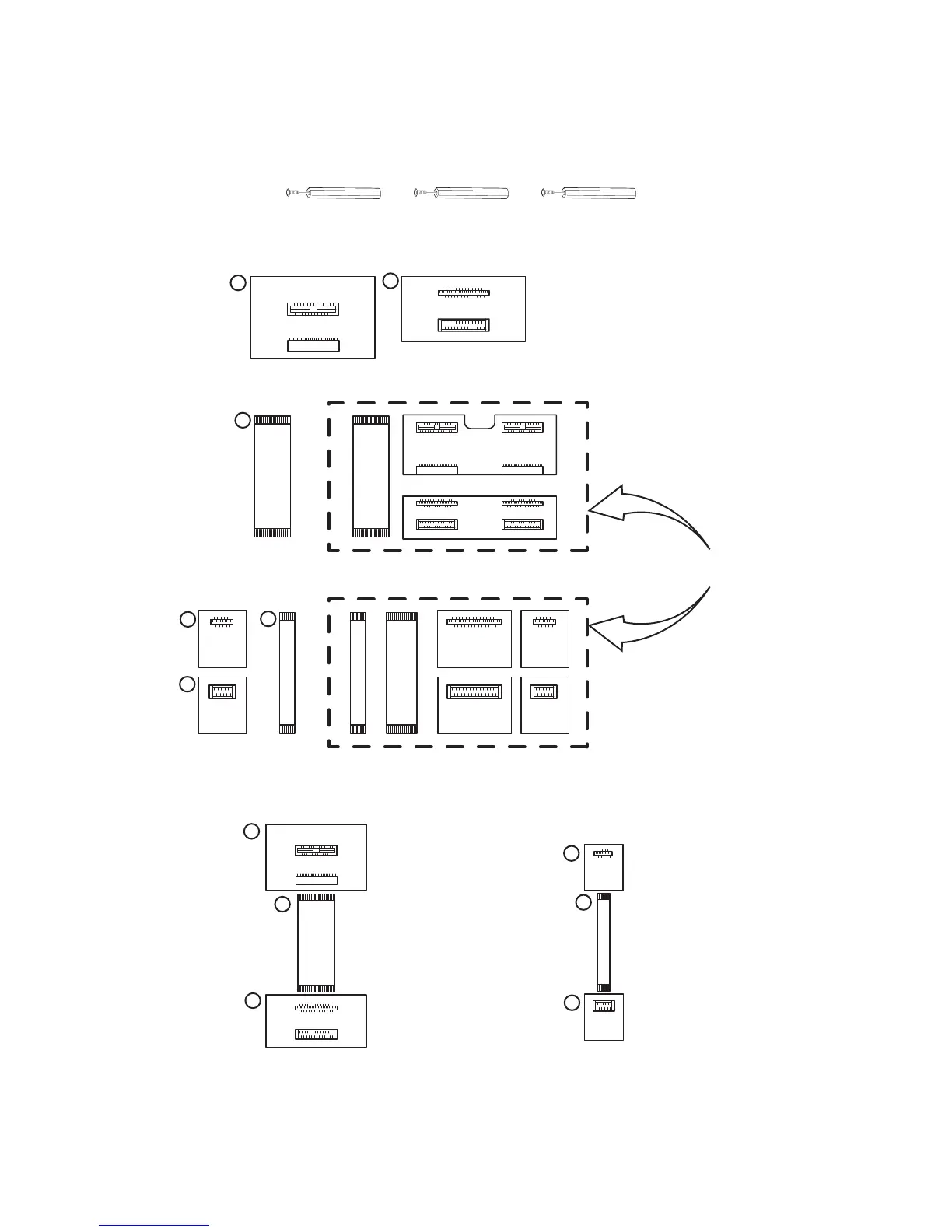

• Stud (four pieces set)
Parts No. : JIGXVS40 (One is not used though there are four. )
Fig.3-4
• Assistance board and extension cord
Fig.3-5
3.3.2 Connection diagram
Fig.3-6
XV-S40 CONTROL CONNECT
XV-S40
MAIN CONNECT
EXTXVS40MK2CB-2 CONTROL CONNECT
EXTXVS40MK2CB-1 MAIN CONNECT
P a r t s N o . : EXTXVS 40 M K 2 CB
P a r t s N o . : EXTXVS 40 CB
P a r t s N o . : EXTXV 521 CB
These parts are not used
.
CN501 XV-521
CN706 XV-521
MAIN CONNECT
XV-521 CN502
CONT CONNECT
CN701 XV-521
MAIN CONNECT
CONT CONNECT
XV-521 CN601
MAIN CONNECT
XV-521 CN503
CONT CONNECT
1
2
3
4
5
6
EXTXVS40MK2CB-2 CONTROL CONNECT
EXTXVS40MK2CB-1 MAIN CONNECT
XV-521 CN601
MAIN CONNECT
XV-521 CN503
CONT CONNECT
1
2
3
4
5
6
To CN701 of main board
T
o CN503 of servo control board
To CN502 of servo control boa
rd
To CN961 of main board
