Getting started
14
Getting started
You can enjoy using the unit by simply connecting it to your television set with a 21-pin SCART cable. To hear audio
sound with better quality, connect the audio output to your audio equipment.
Set the COMP-Y/C switch correctly according to your TV.
If the TV only accommodates the composite video signal, set the switch to COMP.
If the TV accommodates the Y/C signals, set the switch to Y/C so that you can enjoy better-quality pictures.
If the TV accommodates the RGB signals, set the switch to COMP, as well as make the unit feed the RGB signals by
following the procedure shown below.
How to make the unit feed the RGB signals
The unit cannot output the RGB signals from the SCART connector and the S-video (Y/C) signals from the S-VIDEO jack
simultaneously.
In the initial (factory-preset) condition, the S-VIDEO jack is active, while the RGB signals cannot be output.
To make the unit feed the RGB signals, follow the procedure below. Note that the S-VIDEO jack does not feed correct
signals when the unit is set to output the RGB signals.
7
When the unit is turned on
1
Set the COMP.-YC switch to COMP.
2
Press and hold down the
7
(STOP) button on the front panel when no disc is inserted or while the unit is stopped.
S-VIDEO appears in the display window after a few seconds.
3
Keep holding down the
7
(STOP) button on the front panel.
After a few more seconds, RGB replaces S-VIDEO in the display window.
Now the RGB signal can be output when setting the COMP-Y/C switch to COMP.
To make the S-VIDEO jack active, use the similar procedure.

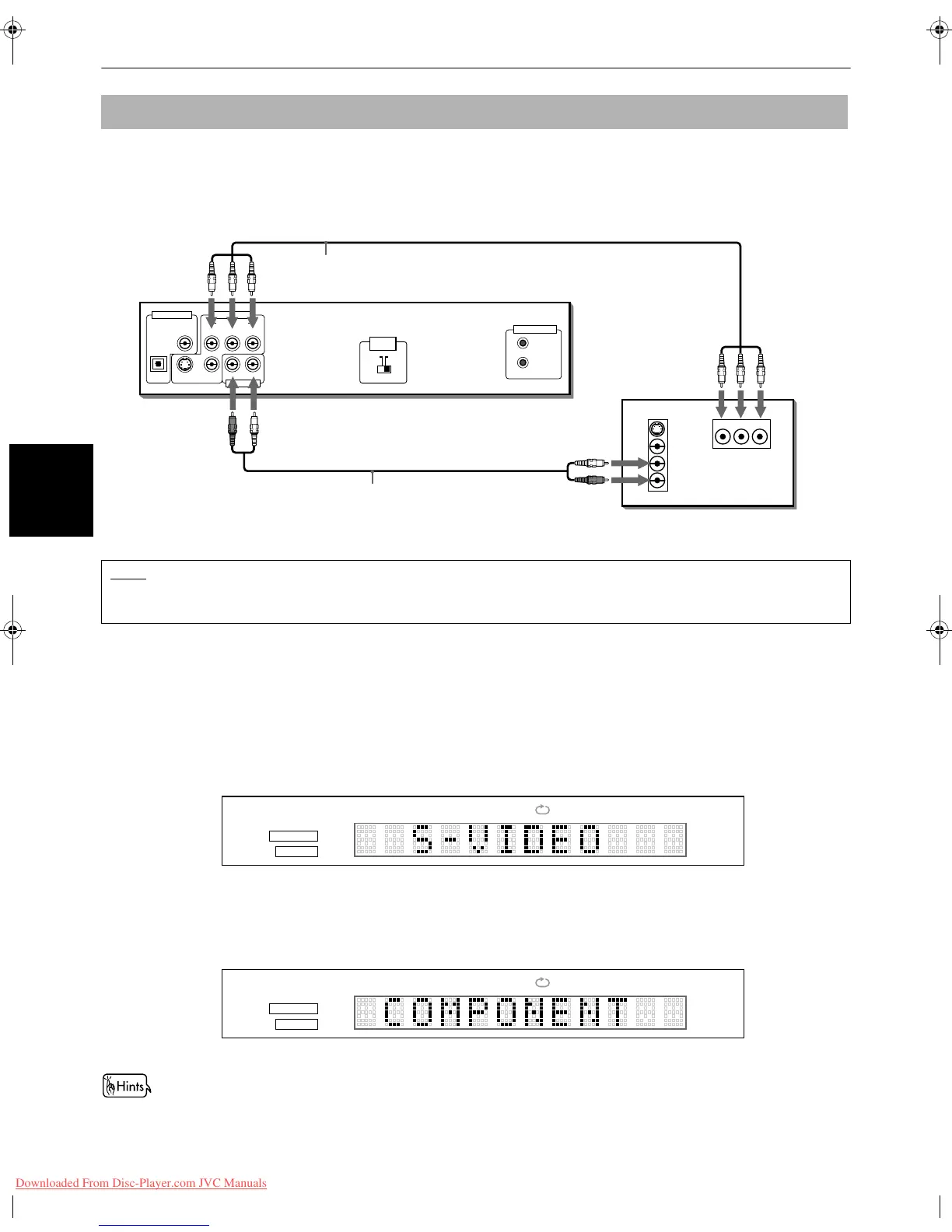

To connect to a TV with the SCART connector
NOTE
Do not connect the unit to an NTSC television. Connect it to a PAL television.
When the unit is set t o feed the RGB signals, the S-VIDEO jack does not feed cor rect signals.
PCM / STREAM
COAXIAL
VIDEO OUT
AUDIO OUT
S-VIDEO VIDEO
RIGHT LEFT
AV COMPU LINK
OPTICAL
VIDEO OUT
AV
The unit
TV
DIGITAL OUT
VIDEO OUT
COMP.Y/C
VIDEO
AUDIO
RIGHT
LEFT
IN
S-VIDEO
IN
AV
SCART cable
(not supplied)
VCDVD
TITLE TRACK CHAP
A
-
B1
PROGRAM
RANDOM
(Display Window)
VCDVD
TITLE TRACK CHAP
A
-
B1
PROGRAM
RANDOM
(Display Window)
