Getting started
15
Getting started
EnglishEnglish
English
English
You can enjoy high-quality audio by connecting the unit's audio output to your amplifier or receiver.
Connect the unit's AUDIO OUT to any line-level inputs (such as AUX, DVD, CD, etc.) of an audio amplifier or receiver.
You can enhance the sound quality by connecting the unit's DIGITAL OUT to the digital input of an amplifier, MD, etc. by
using an optional digital cable. The digital audio signal from a disc is directly transferred. If you connect the unit to a
Dolby Digital or DTS decoder or an amplifier with a built-in decoder by using an optional digital cable, you can enjoy
high-quality surround sound.
When you make the digital connection, we recommend also to make the analog connection, because, depending on
discs, no signal may be output from the DIGITAL OUT.

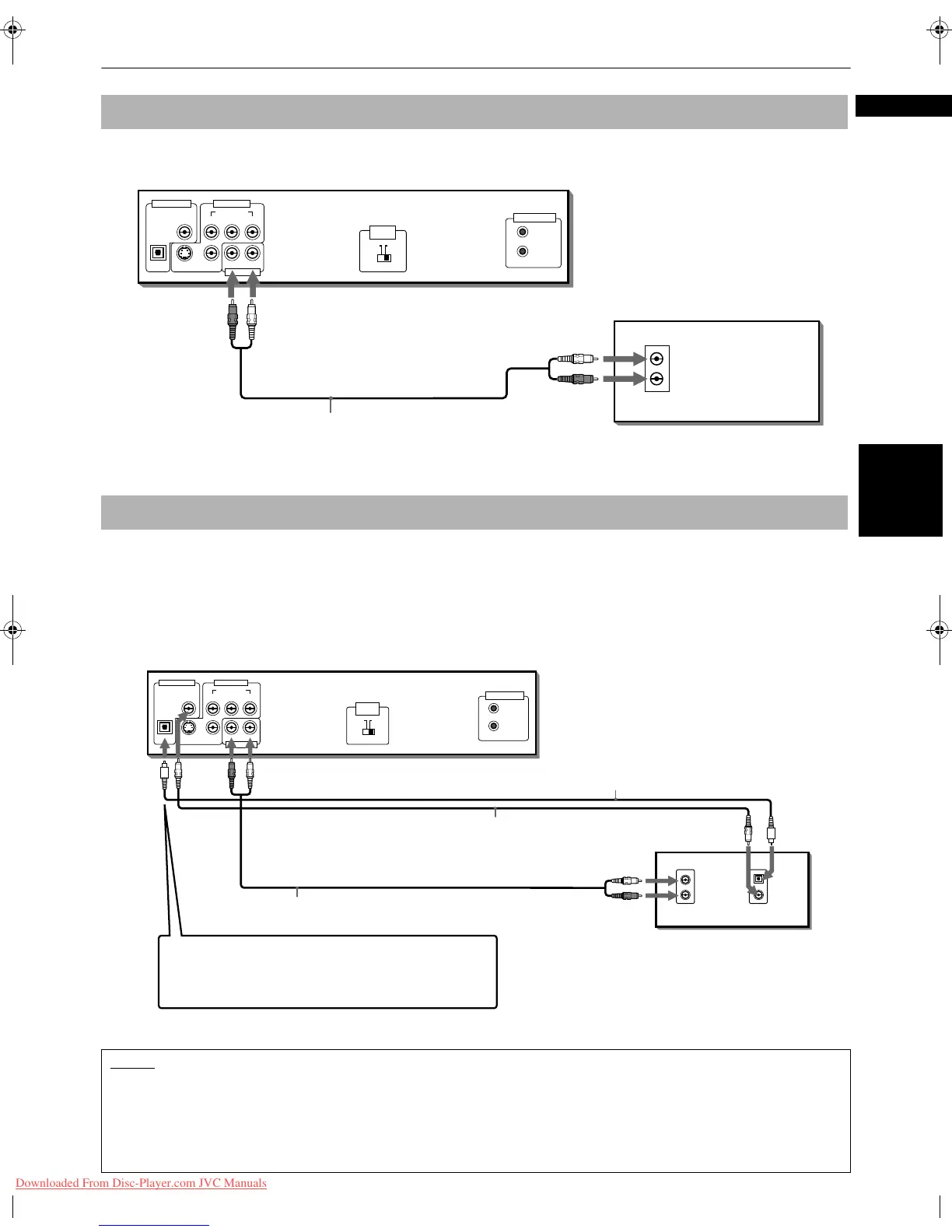

To connect to an audio amplifier or receiver
To connect to audio equipment with a digital input
NOTES
When you connect the unit's DIGITAL OUT to digital audio equipment, before using, make the DIGITAL AUDIO OUTPUT
setting in the AUDIO page of the preference display correctly according to the connected audio equipment. If the DIGITAL
AUDIO OUTPUT is not set correctly, loud noise may be generated from speakers, causing damage to your speakers. See
DIGITAL AUDIO OUTPUT on page 36.
With the digital connection, the units settings for COMPRESSION and DOWN MIX in the AUDIO page of the preference display
are invalid. Settings for these items must be made from the decoder.
AUDIO
RIGHT
LEFT
IN
DIGITAL OUT
PCM / STREAM
COAXIAL
AUDIO OUT
S-VIDEO VIDEO
RIGHT LEFT
AV COMPU LINK
OPTICAL
VIDEO OUT
VIDEO OUT
COMP.Y/C
AV
Amplifier or receiver
Audio cable
(not supplied)
White
Red
The unit
WhiteRed
AUDIO
RIGHT
LEFT
IN
OPTICAL
COAXIAL
DIGITAL
IN
DIGITAL OUT
PCM / STREAM
COAXIAL
AUDIO OUT
S-VIDEO VIDEO
RIGHT LEFT
AV COMPU LINK
OPTICAL
VIDEO OUT
VIDEO OUT
COMP.Y/C
AV
Digital equipment
Audio cable
(not supplied)
White
Red
The unit
White
Red
Coaxial digital cable
(not supplied)
Optical digital cable
(not supplied)
The OPTICAL jack is protected by the hinged cover.
To connect the optical cable to the jack, press the
cover with the plug and connect it to the jack inside
in the correct direction.
