K-RACK2 Assembly

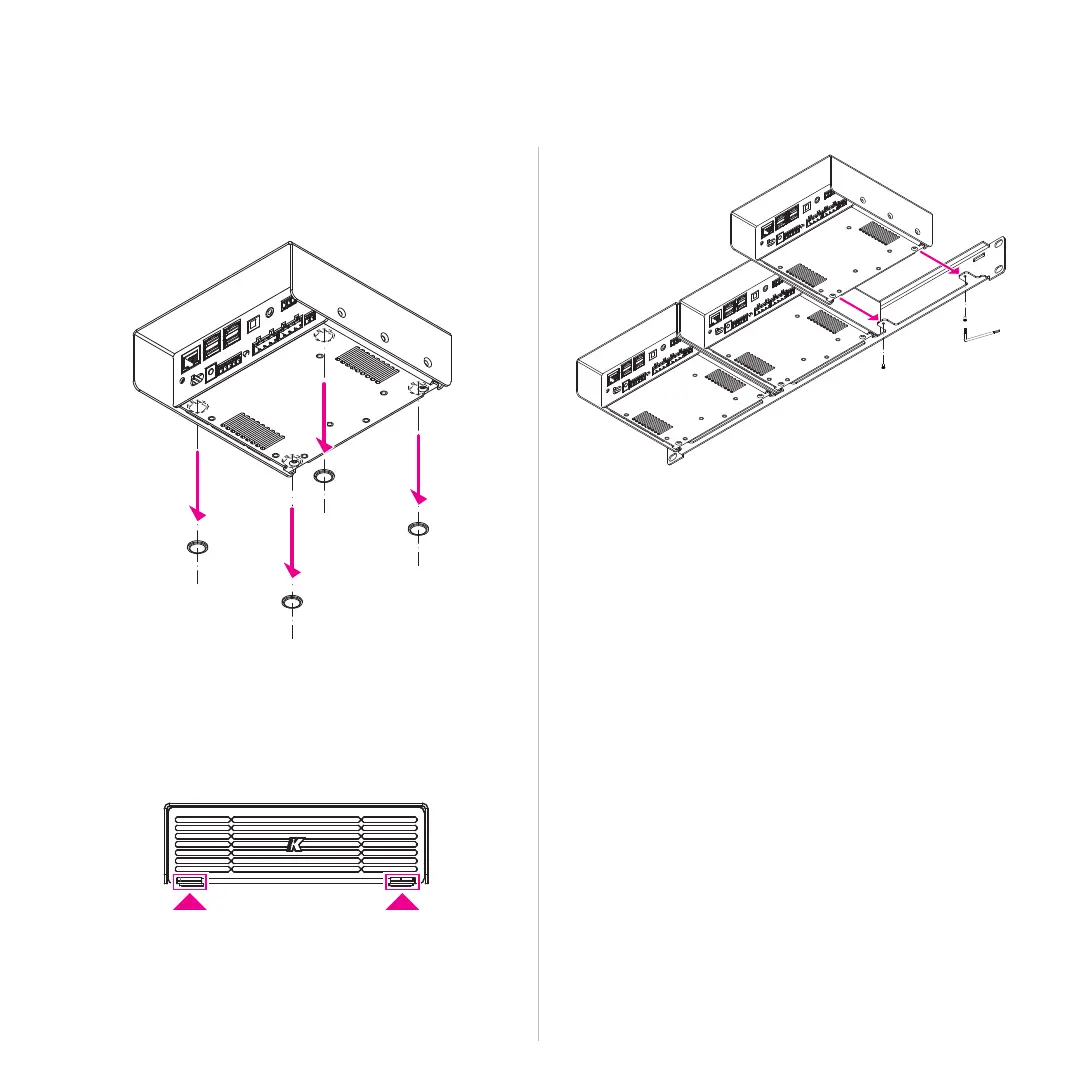

1. Remove the rubber feet from the bottom surface of the
Kommander-KA02 amplifier unit.
2. Position the amplifier unit on the K-RACK2 so that the
small tabs in the bracket enter the slots at the bottom of
the amplifier front panel.
3. Use the screws provided with the K-RACK2 kit to
secure the amplifier.
4. Up to three Kommander-KA02 amplifier units can be
mounted on a single K-RACK2 occupying 1U in a rack
cabinet.
