K2 Pumps AWP00002K - User Manual

Model: AWP00002K

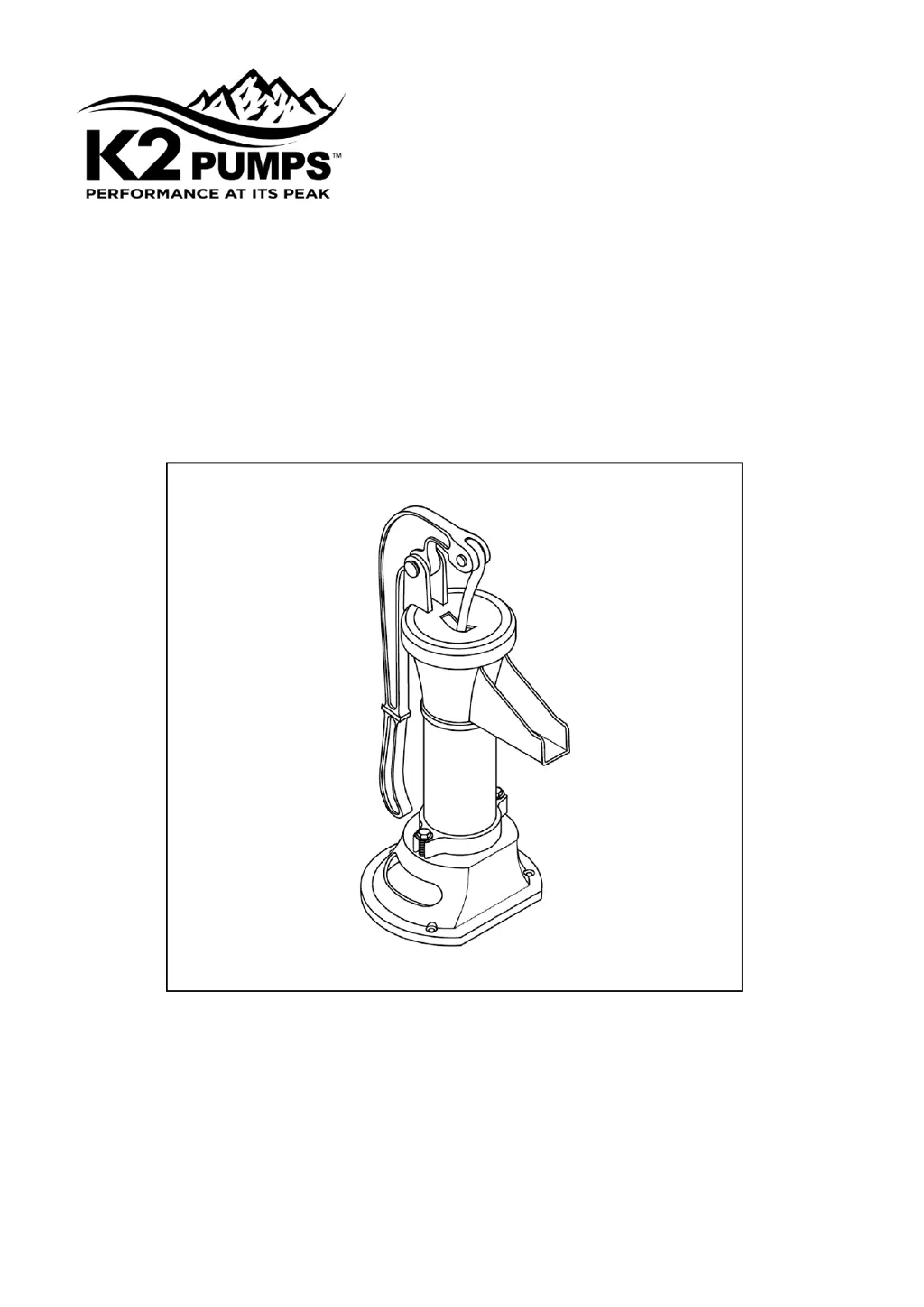

OWNER’S MANUAL
PITCHER PUMP
Questions, problems, missing parts? Before returning to the store call
K2 Customer Service 8 a.m. - 6 p.m., EST, Monday-Friday
1-844-242-2475
www.K2pumps.com
Copyright © 2020, GP Enterprises Co., Ltd. K2Man-15 (Rev. 4/17/20)

Summary

Safety Instructions

Pre-Installation

Application

The pitcher pump is designed to pump water from a driven well. It must be primed before lifting water.

Tools Required

Lists the necessary tools for installation, including wrenches.

Installation

Installation Procedure

Thread the pump into the casing of a driven well or bolt to the cover of a dug well. Ensure pipe connections are airtight.

Sealing Pipe Joints

Use Teflon tape or joint compounds for threaded connections. All suction pipe joints must be airtight and watertight.

Priming the Pump

Never operate dry. Fill pump with water before starting. Pour water into the pump until it runs from the spout.

Maintenance

Replacing the Cup Leather

Steps to replace the cup leather, involving loosening the pump cap, removing the holder, and replacing the leather.

Replacing the Valve Leather

Steps to replace the valve leather, including removing the pump body and check valve assembly.

Troubleshooting

Pump Not Delivering Water

Troubleshooting steps for when the pump plunger moves but no water is delivered, including checking prime and leaks.

Warranty

Limited Warranty Terms

Details what the warranty covers, what it does not cover, and other important terms and conditions.

K2 Pumps AWP00002K Specifications

General

Model	AWP00002K
Category	Water Pump
Brand	K2 Pumps
Maximum Flow Rate	1800 GPH
Voltage	115 V
Cord Length	10 ft
Construction	Thermoplastic
Maximum Head	25 ft
Discharge Size	1-1/4 in. NPT
